About the product

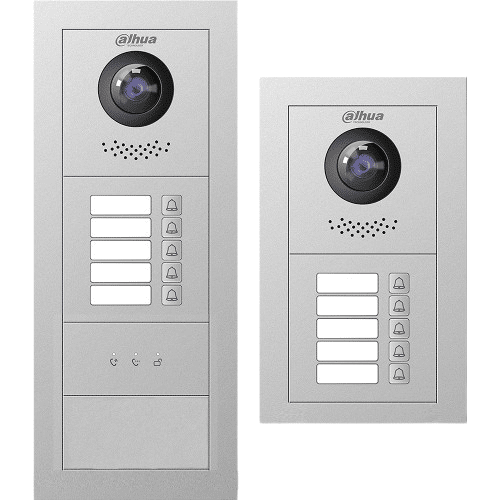

Full system customisation is available with the Dahua Intercom Modular System, which is a comprehensive intercom solution. The base module of this intercom system is a 2 MP outdoor video intercom, which provides two-way communication, a wide-angle view lens, and high-resolution photos even in low light. Include call buttons, information text displays, card readers and keypads for door entry, and status light indications as optional modules. A flush-mount or surface-mount two- or three-module intercom system is also possible with the system's optional accessories.
Dahua Intercom Modular Outdoor station, Display Panel Features:
- 2MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance
Dahua Intercom Modular Outdoor station, Display Panel Features:
- System
- Main Processor Embedded Processor
- Operating System Embedded Linux
- Video
- Image Sensor 1/2.5-in. 2 MP CMOS Sensor
- Lens 1.9 mm
- Angle of View
- Horizontal: 168.6°
- Vertical: 87.1°
- Diagonal: 176.7°
- Wide Dynamic Range 120 dB
- Noise Reduction 3D NR
- Compression H.265, H.264
- Resolution
- Main Stream: 720p at 30 fps
- Sub Stream: 1080p 30 fps
- Bit Rate 256 Kbps to 4 Mbps
- Day/Night Auto (ICR)
- Audio
- Compression G.711a, G.711u, PCM
- Input Omnidirectional Microphone
- Output Built-in Speaker
- Bi-directional Talk Support for Dual-way Bi-directional Talk
- Enhancement Echo Suppression, Digital Noise Reduction
- Bit Rate 16 KHz, 16 Bit
- Interface
- Ports One (1) Electric Lock One (1) Exit Button One (1) Door Status Detection One (1) Lock Control
- Alarm Output One (1) Channel
- Power Output 12 VDC, 100 mA
- Network
- Ethernet One (1) RJ45 10/100 Mbps Port
- Network Protocols SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
- Certifications
- Safety EN 62368-1:2014/A11:2017
- Electromagnetic Compatibility (EMC) CFR 4 7 FCC P art 15 subpart B EN 55032:201 5; EN 61000 3 2:2014 EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014
- Electrical
- Power
- DHI-VTNS2003B-2, Dahua Two-wire Switch (maximum power supply distance 50.0 m [164.04 ft])
- 48 VDC, 1 A
- PoE (IEEE802.3af Class 0)
- Power Consumption ? 12 W
- Power
- Environmental
- Operating Temperature –30° C to +60° C (–22° F to +140° F)
- Operating Humidity 10% to 95%, Relative (non-condensing)
- Operating Altitude 0 m to 3000.0 m (0 ft. to 9842.52 ft)
- Ingress Protection IP65
- Vandal Resistance IK07
- Construction
- Material Anodized Aluminum
- Color Silver
- Dimensions 100.0 mm x 100.0 mm x 36.0 mm (3.94 in. x 3.94 in. x 1.41 in.)
- Net Weight 0.35 kg (0.77 lb)
- Gross Weight 0.40 kg (0.88 lb)
- Installation Surface- or Flush-mount
Technical Specifications
Full system customisation is available with the Dahua Intercom Modular System, which is a comprehensive intercom solution. The base module of this intercom system is a 2 MP outdoor video intercom, which provides two-way communication, a wide-angle view lens, and high-resolution photos even in low light. Include call buttons, information text displays, card readers and keypads for door entry, and status light indications as optional modules. A flush-mount or surface-mount two- or three-module intercom system is also possible with the system's optional accessories.
Dahua Intercom Modular Outdoor station, Display Panel Features:
- 2MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Records Call Sessions from the Indoor Monitor
- Access Control Supports Two Locks
- Performs Remote Door Unlock
- Compatible with Two-wire or RJ45 Connection
- Supports Secure Password Entry
- Anodized Aluminum Panel can be Surface- or Flush-mounted
- Fully Customizable System
- IP65 Ingress Protection and IK07 Vandal Resistance
Dahua Intercom Modular Outdoor station, Display Panel Features:
- System
- Main Processor Embedded Processor
- Operating System Embedded Linux
- Video
- Image Sensor 1/2.5-in. 2 MP CMOS Sensor
- Lens 1.9 mm
- Angle of View
- Horizontal: 168.6°
- Vertical: 87.1°
- Diagonal: 176.7°
- Wide Dynamic Range 120 dB
- Noise Reduction 3D NR
- Compression H.265, H.264
- Resolution
- Main Stream: 720p at 30 fps
- Sub Stream: 1080p 30 fps
- Bit Rate 256 Kbps to 4 Mbps
- Day/Night Auto (ICR)
- Audio
- Compression G.711a, G.711u, PCM
- Input Omnidirectional Microphone
- Output Built-in Speaker
- Bi-directional Talk Support for Dual-way Bi-directional Talk
- Enhancement Echo Suppression, Digital Noise Reduction
- Bit Rate 16 KHz, 16 Bit
- Interface
- Ports One (1) Electric Lock One (1) Exit Button One (1) Door Status Detection One (1) Lock Control
- Alarm Output One (1) Channel
- Power Output 12 VDC, 100 mA
- Network
- Ethernet One (1) RJ45 10/100 Mbps Port
- Network Protocols SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
- Certifications
- Safety EN 62368-1:2014/A11:2017
- Electromagnetic Compatibility (EMC) CFR 4 7 FCC P art 15 subpart B EN 55032:201 5; EN 61000 3 2:2014 EN 61000 3 3:2013; EN 55024:2010/A1:2015; EN 55035:2017; EN 50130 4:2011/A1:2014
- Electrical
- Power
- DHI-VTNS2003B-2, Dahua Two-wire Switch (maximum power supply distance 50.0 m [164.04 ft])
- 48 VDC, 1 A
- PoE (IEEE802.3af Class 0)
- Power Consumption ? 12 W
- Power
- Environmental
- Operating Temperature –30° C to +60° C (–22° F to +140° F)
- Operating Humidity 10% to 95%, Relative (non-condensing)
- Operating Altitude 0 m to 3000.0 m (0 ft. to 9842.52 ft)
- Ingress Protection IP65
- Vandal Resistance IK07
- Construction
- Material Anodized Aluminum
- Color Silver
- Dimensions 100.0 mm x 100.0 mm x 36.0 mm (3.94 in. x 3.94 in. x 1.41 in.)
- Net Weight 0.35 kg (0.77 lb)
- Gross Weight 0.40 kg (0.88 lb)
- Installation Surface- or Flush-mount
