About the product

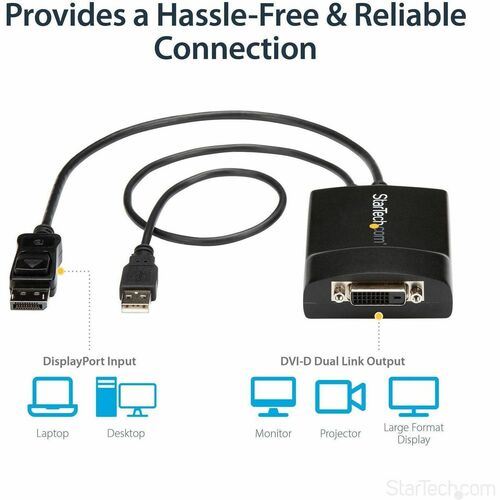

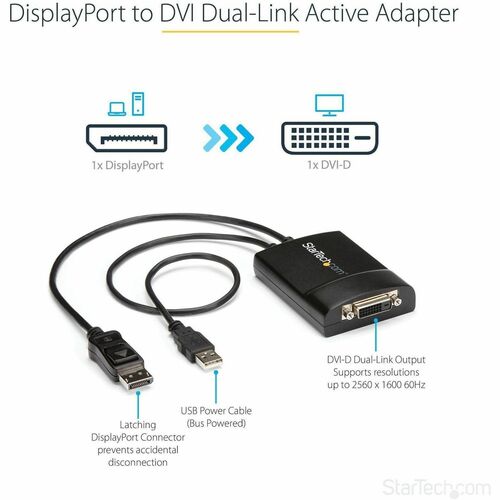

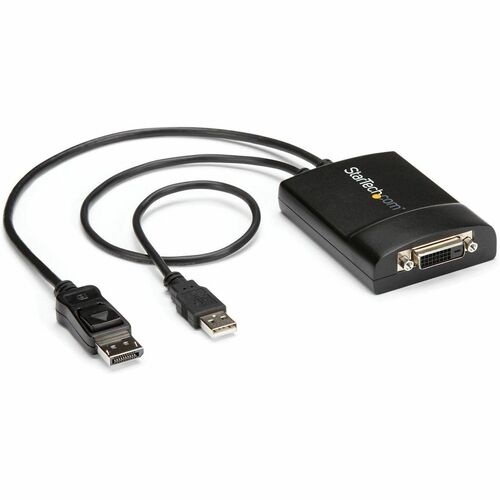

- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; | 15" (37cm) attached cable | USB-Powered | EDID pass-through
- COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

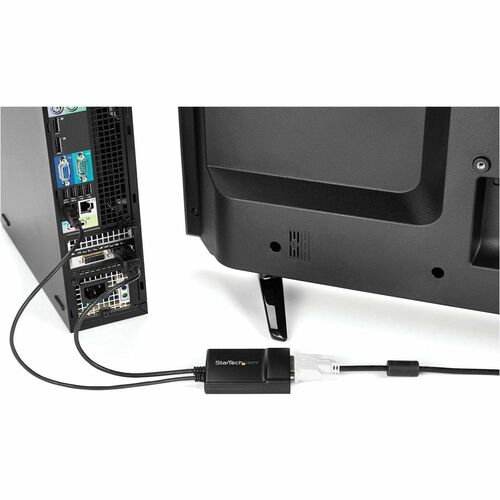

- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation | Compact design |Tested w/ DVI cables up to 25ft | Supports widescreen/ultrawide & Apple Cinema Display HD | Ideal for digital signage

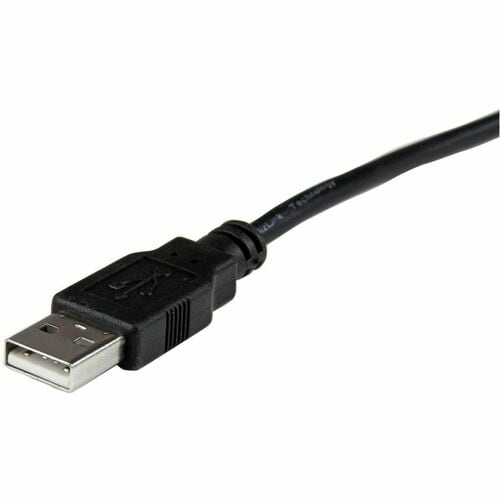

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | 18" (46cm) USB cable
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle
Technical Specifications
| Physical Characteristics | |
| Weight (Approximate) | 5.60 oz (158.76 g) |
| Height | 0.90" (22.86 mm) |
| Width | 2.50" (63.50 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | DP2DVID2 |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort to DVI Adapter |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 1.2 ft (0.37 m) |
| Features | Active |
| Extended Display Identification Data (EDID) | |
| Screw Lock | |
| HDCP | |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| USB Type A - Male | |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Female |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Connector on First End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| 1 x 4-pin USB Type A - Male | |
| Connector on Second End Details | 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
