About the product

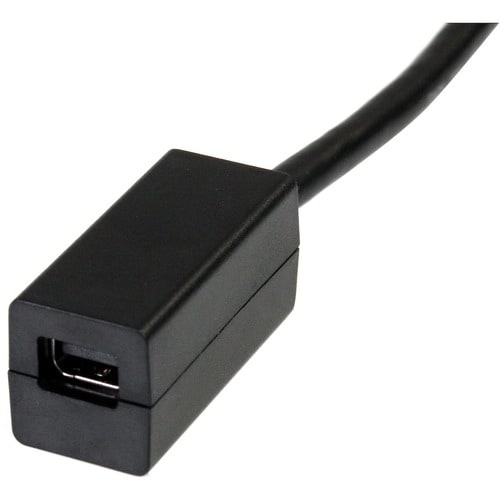

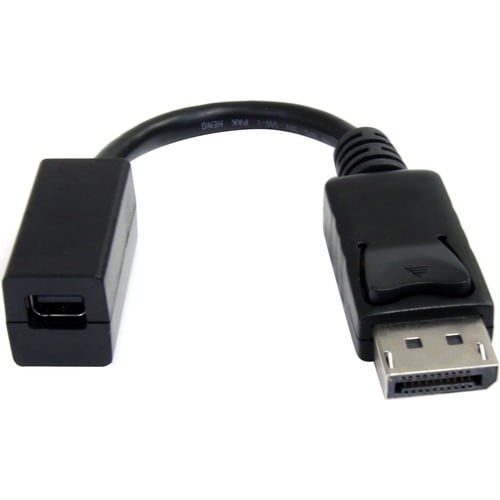

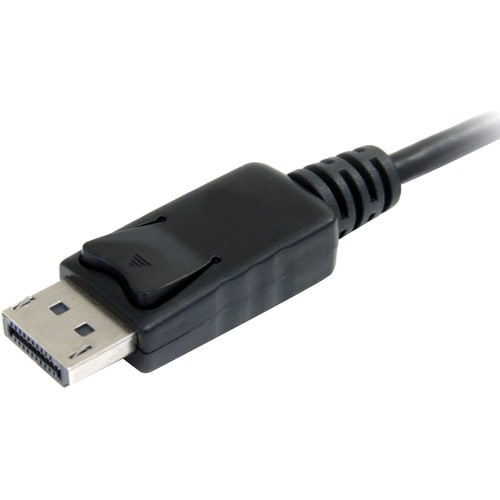

The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
More from the Manufacturer
- DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 6in (15 cm) DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo
- RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
- APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works with laptop with standard DP port and workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display
- NOTE: This DisplayPort to MiniDisplayPort adapter is not compatible with TB monitors like the Apple A1407 Thunderbolt Display; The adapter cannot be used to connect Thunderbolt accessories like docks or audio interfaces to a DP port~
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 0.96 oz (27.22 g) |
| Weight (Approximate) | 0.50 oz (14.17 g) |
| Shipping Height | 0.63" (16 mm) |
| Shipping Width | 7.87" (199.90 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Cable Adapter |
| Manufacturer Part Number | DP2MDPMF6IN |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | DP2MDPMF6IN |
| Product Name | 6in DisplayPort to Mini DisplayPort Cable Adapter |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 6" (152.40 mm) |
| Conductor | Copper |
| Device Supported | Audio/Video Device |
| Computer | |
| Notebook | |
| Monitor | |
| Jacket Type | CMG |
| Features | Latching Connector |
| Molded | |
| Strain Relief | |
| Cable Type | DisplayPort/Mini DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating | Nickel |
| American Wire Gauge | 32 AWG |
| Supported Resolution | 2560 x 1600 |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
