About the product
The StarTech.com DP2VGA DisplayPort to VGA adapter lets you connect a VGA computer monitor to a DisplayPort video card or other DisplayPort source, eliminating the expense of upgrading the monitor for compatibility.
The DP to VGA adapter uses an integrated chip to provide an active digital to analog conversion.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer

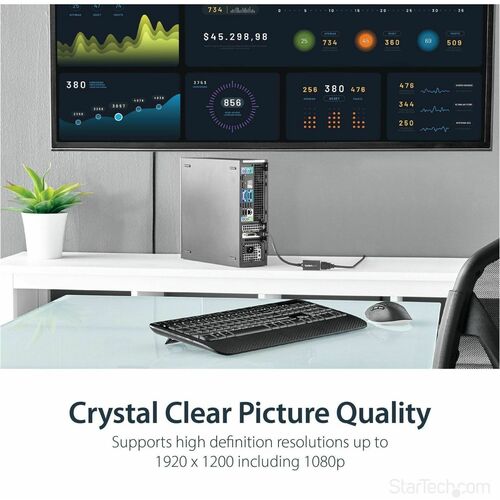

- DISPLAYPORT TO VGA ADAPTER: DisplayPort 1.2 (HBR2) adapter connects a VGA display or projector supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display | 3" (8cm) attached cable
- COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT TO A PRIMARY OR SECONDARY DISPLAY: Connect a VGA monitor or projector, or add a second display to your workstation using the DP to VGA display adapter; Durable housing makes it ideal for travel to & from office/home |Tested w/ VGA cables up to 25'

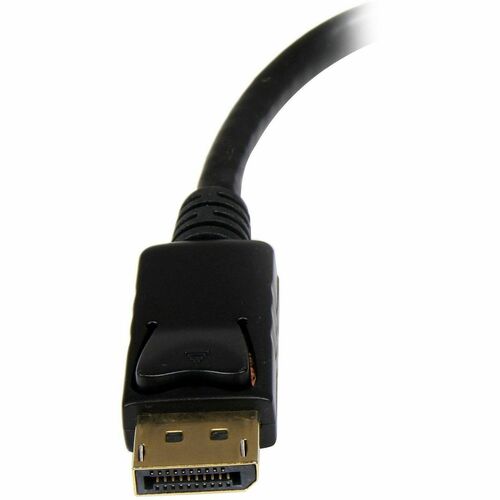

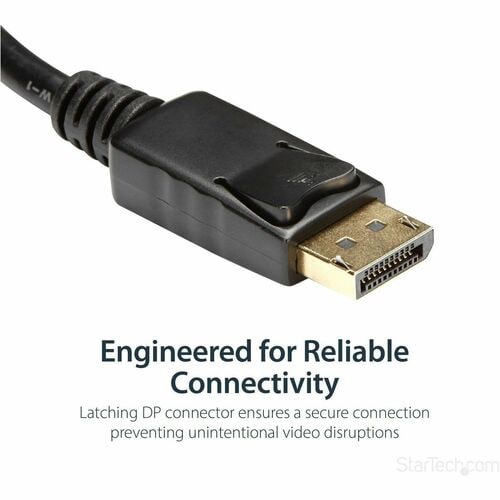

- LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection | Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection | EMI shielding protects from line noise/distortion
- EASY TO USE: With no software or drivers required, the DP to VGA adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to VGA female video adapter dongle
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Video Adapter |
| Manufacturer Part Number | DP2VGA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | DP2VGA |
| Product Name | DisplayPort To VGA Adapter - Active - 1080p - DP to VGA Adapter |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 3" (76.20 mm) |
| Features | Screw Lock |
| Latching Connector | |
| Active | |
| EMI Protection | |
| Extended Display Identification Data (EDID) | |
| Connector Type on First End | HD-15 - Female |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 15-pin HD-15 - Female |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Gender on First End | Female |
| Connector Gender on Second End | Male |
