About the product

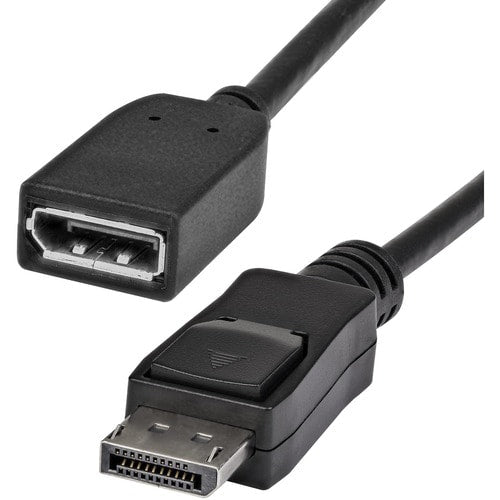

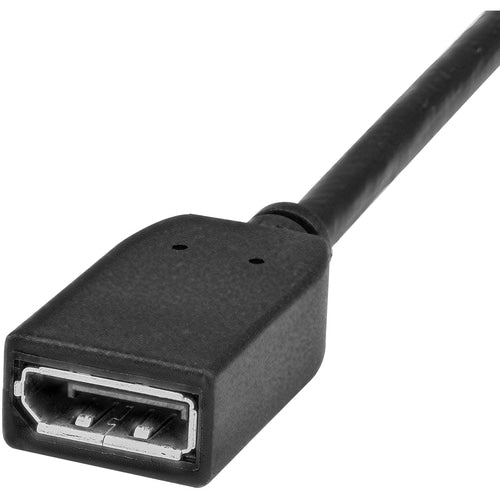

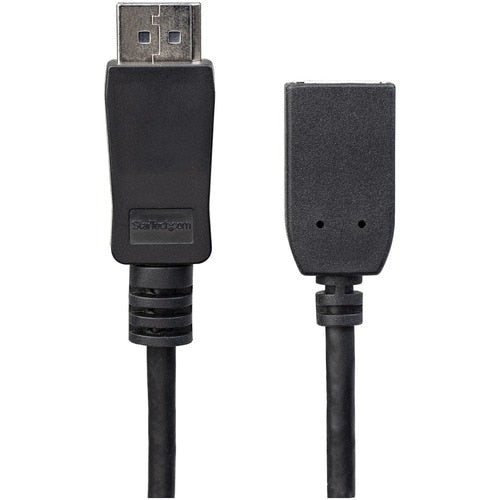

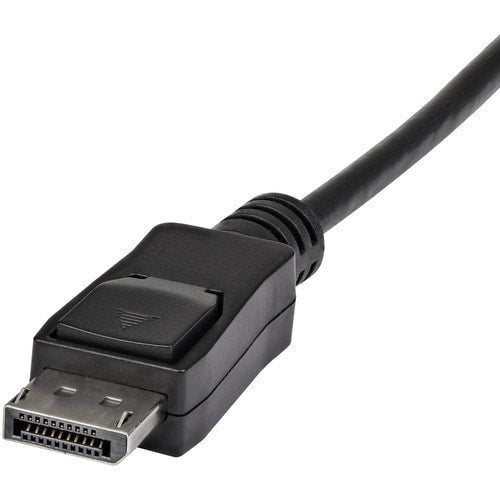

The DPEXT6L 6-foot, DisplayPort Video Extension Cable supports 21.6 Gbps bandwidth, giving a full 4K x 2K (3840 x 2400 at 60Hz) resolution and 3D Stereo display (2560 x 1600 at 120Hz). This DP1.2 cable also provides additional features such as High Bit Rate 2 (HBR2), 8 Audio Channels, Multi-Stream Transport (MST) for connecting multiple displays and Global Time Code (GTC) for sub-micro video/audio sync.
This DisplayPort v1.2 Video Extension Cable adds an extra 6ft to any DisplayPort cable. The extension cable features latching connectors with gold-plated pins for superior conductivity and is backed by our Lifetime Warranty.
More from the Manufacturer
- DISPLAYPORT EXTENSION CABLE: 6 ft (1.8 m) DP v1.2 male to DP female cable / cord; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching connector prevents accidental disconnection
- QUALITY CONSTRUCTION: DP extension cable has 30AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort extender cable has superior EMI shielding with double sided copper foil to provide higher quality video and audio
- APPLICATIONS: Add extra 6ft to your DP cables; Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with 1080p/UHD/4K monitors/projector/display
- SPECS: 6 feet (1.8 m) | Black | DP v1.2 | DisplayPort Male to Female extension cable | 30 AWG | PVC cable jacket, ABS connector shell | Shield: Double sided copper foil | HBR2, MST, GTC | Backward compatible w/ DP1.1 | Lifetime Warranty
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| General Information | |
| Product Type | Video Cable |
| Manufacturer Part Number | DPEXT6L |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort Video Extension Cable - M/F - 6 ft |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 5.76 oz (163.29 g) |
| Weight (Approximate) | 3.20 oz (90.72 g) |
| Shipping Height | 6.97" (177.04 mm) |
| Shipping Width | 0.79" (20.07 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Cable Length | 6 ft (1.83 m) |
| Conductor | Copper |
| Data Transfer Rate | 21.6 Gbit/s |
| Device Supported | Audio/Video Device |
| Jacket Type | CMG |
| Shielding | Yes |
| Features | Multi-Stream Transport (MST) Support |
| Molded | |
| Latching Connector | |
| HDCP | |
| DPCP | |
| Strain Relief | |
| Cable Characteristic | Extension Cable |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Plating | Nickel |
| American Wire Gauge | 28 AWG |
| Supported Resolution | 3840 x 2400 |
| Contact Plating | Gold |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
