About the product
This high quality Removable SATA Hard Drive Drawer/Mobile Rack delivers a professional-grade hot-swap solution, allowing you to quickly swap SATA hard drives in/out of a computer without having to open the computer case. The mobile rack is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.

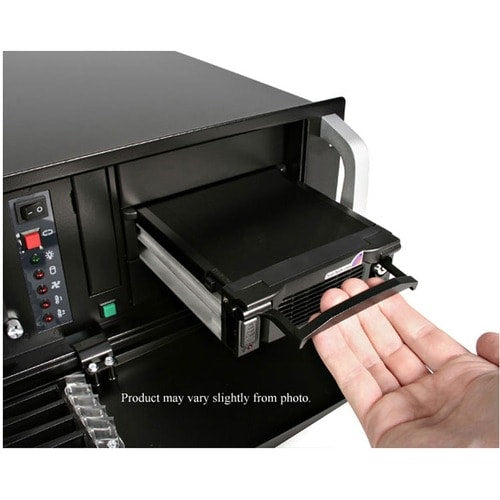

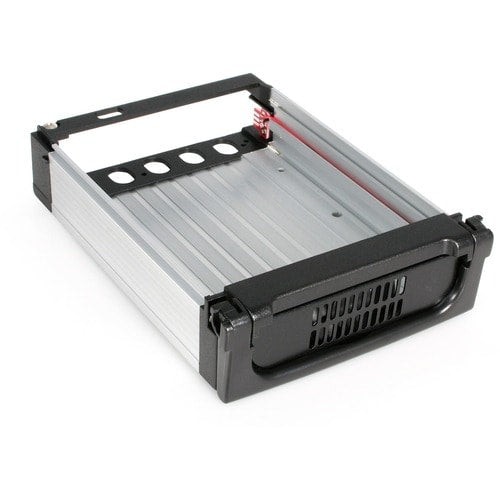

Simply install the drive bay into a 5.25in bay on the host computer, then mount a 3.5in SATA HDD into the (removable) caddy. Connecting the SATA hard drive to the computer is as easy as inserting the caddy into the drive bay, which can be locked to prevent unauthorized removal of the drive. Features a front panel ball bearing fan, aluminum construction and 25K insertion rating. Backed by StarTech.com's 2-year warranty.
This product is interchangeable as a replacement for StorCase SATA models S21J111, SC21J111 and RJR110.
More from the Manufacturer
- Fits a single SATA drive into a front accessible 5.25" bay
- Heavy duty aluminum construction for the drive caddy and bay
- Key lockable drive caddy
- Rubber shock absorbers
- 25,000+ insertion rating

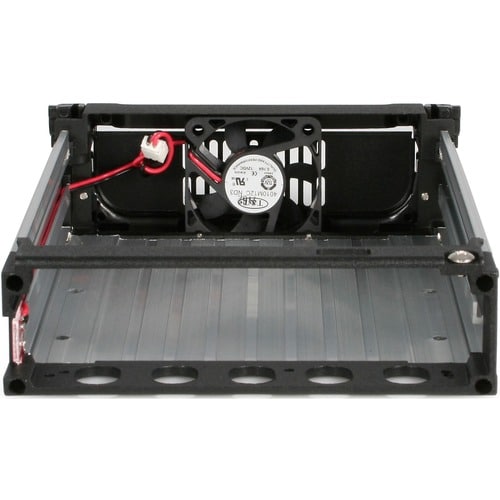

- 40mm ball bearing cooling fan
- Dust resistant door on bay unit
- Power and Activity LED indicators
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Supports 3.5" form factor SATA hard drives
Technical Specifications
| Controllers | |
| Controller Type | Serial ATA/600 |
| Interfaces/Ports | |
| Host Interface | Serial ATA/600 |
| Network & Communication | |
| Wireless LAN | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 1 |
| "Number of 3.5"" Bays" | 1 |
| Technical Information | |
| Number of Hard Drives Supported | 1 |
| Number of Hard Drives Installed | No |
| General Information | |
| Product Type | Drive Bay Adapter |
| Manufacturer Part Number | DRW150SATBK |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Model | DRW150SATBK |
| Product Name | 5.25" Rugged SATA HDD Mobile Rack Drawer |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Platform Supported | Mac |
| PC | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 1.72 lb (782 g) |
| Form Factor | Internal |
| Height | 1.60" (40.64 mm) |
| Width | 5.80" (147.32 mm) |
| Depth | 7.50" (190.50 mm) |
| Compatible Drive Bay Width | 5.25" |
| Cooling Fan | Yes |
| Product Color | Black |
| Color Family | Black |
| Product Material | Aluminum |
