About the product
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness

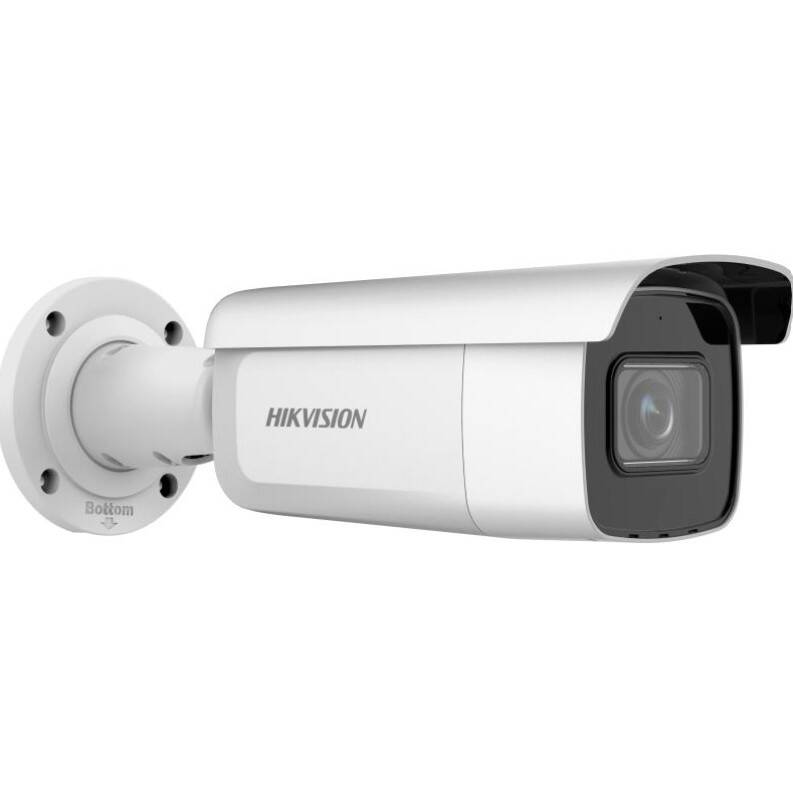

8 MP AcuSense Motorized Varifocal Bullet Network Camera Features:
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation andmonitoring
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 120 dB trueWDR technology
- Focus on human and vehicle targets classification based ondeep learning
- Audio and alarm interface available
- Water and dust resistant (IP67) and vandal-resistant(IK10)
8 MP AcuSense Motorized Varifocal Bullet Network Camera Specifications:
- Image:
- Image Sensor 1/2.8"" Progressive Scan CMOS
- Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed 1/3 s to 1/100,000 s
- Slow Shutter Yes
- P/N P/N
- Wide Dynamic Range 120 dB
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens:
- Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- Lens Mount Ø 14
- Iris Type Fixed
- Aperture F1.6
- Dori: 2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m
- Illuminator:
- Supplement Light Type: IR
- Smart Supplement Light: Yes
- IR Wavelength 850 nm
- IR Range Up to 60 m
- Video:
- Max. Resolution 3840 × 2160
- Main Stream:
- 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
- Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264 *Third stream is supported under certain settings.
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- H.264+ Main stream supports
- H.265+ Main stream supports
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio:
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Environment Noise Filtering: Yes
- Network:
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
- Image:
- Image Parameters Switch: Yes
- Image setting: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- SNR: ? 52 dB
- Interface:
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-board Storage: Built-in memory card slot, support micro SD card, up to 256 GB
- Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 K?, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium.
- Alarm: 1 input, 1 output (max. 24VDC/24 VAC, 1 A)
- Hardware Reset: Yes
- Event:
- Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm, exception
- Face Detection: Yes
- Deep Learning Function:
- Perimeter Protection: Line crossing detection, intrusion detection Supports human and vehicle targets classification
- General:
- Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Camera Material Aluminum alloy body
- Camera Dimension 308.5 mm × 97.9 mm × 93 mm (12.2"" × 3.9"" × 3.7"")
- Package Dimension 385 mm × 190 mm × 180 mm (15.2"" × 7.5"" × 7.1"")
- Camera Weight Approx. 1385 g (3.1 lb.)
- With Package Weight Approx. 2046 g (4.5 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General Function: Anti-flicker, heartbeat, password reset via email, pixel counter
- Web Client Language: 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Firmware Vision: V5.5.113
- Software Reset: Yes
- Power Consumption and Current: 12 VDC, 1.08 A, max. 13 W PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
- Power Supply 12 VDC ± 25% PoE: 802.3at, Class 4
- Power Interface: Ø 5.5 mm coaxial power plug
- Approval:
- EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
