About the product

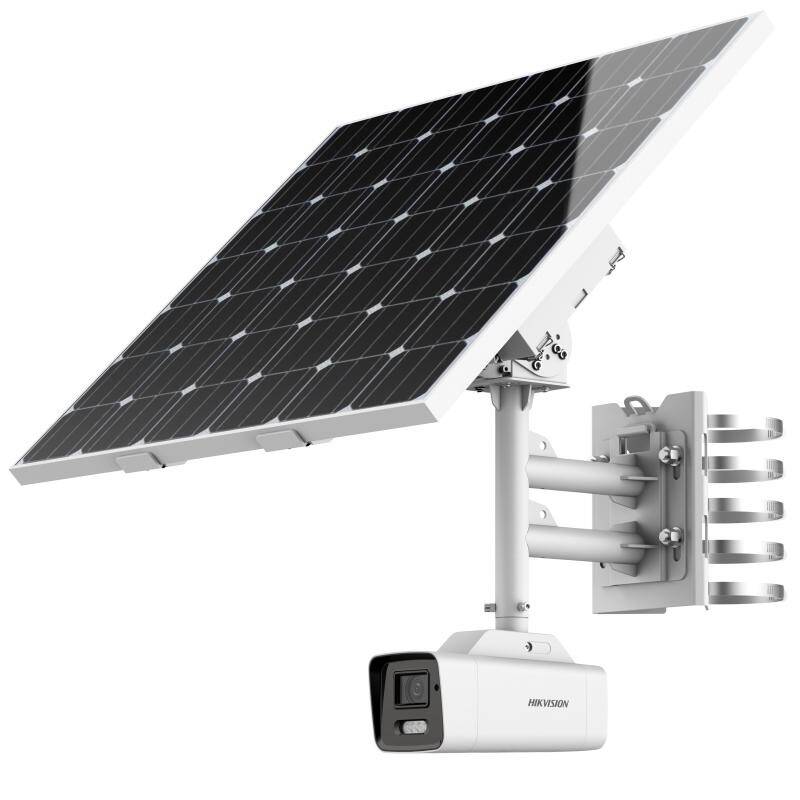

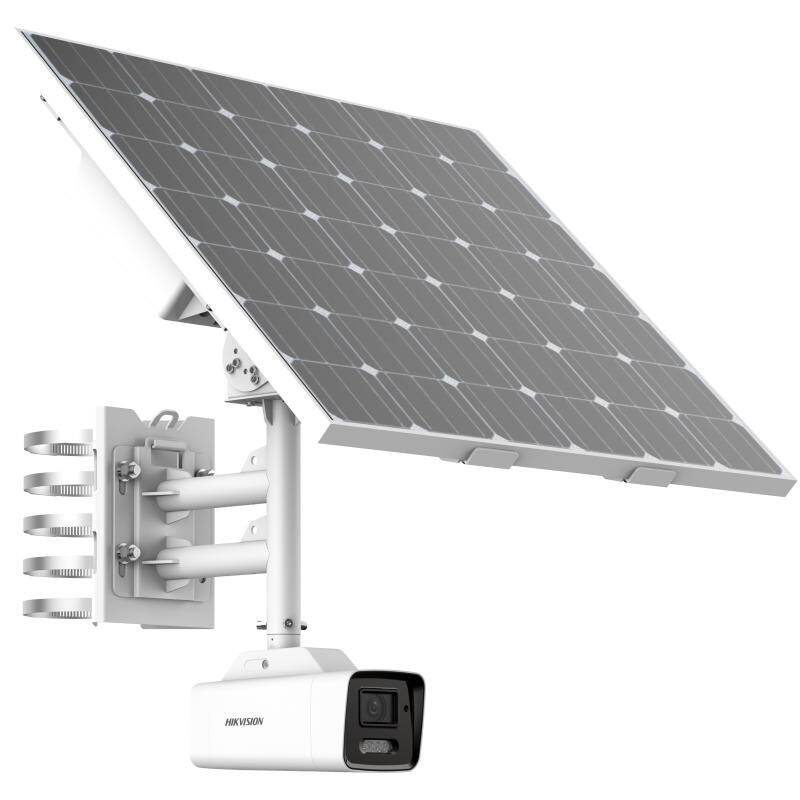

The Hikvision 4MP Motorized Varifocal Bullet Solar-Powered 4G Security Camera Kit is an ideal way of extending security systems beyond areas that can be traditionally reached by networking and electrical systems. With 120 dB true WDR technology and a clear 1440p QHD video resolution, images are clear and vivid even in intense or direct lighting conditions. IP66 weatherproof outdoor protection makes this kit ideal for recording sensitive outdoor areas like roads, railways, airports, cargo/civilian transit hubs, stadiums—as well as scenic and natural areas like parks, rural properties, animal trails, and more.
Built-in human/vehicle detection ensures accurate recording and alerts, and with a variety of deep learning features ensures automatic detection based on user-selected preferences; allowing both a host of extended security features, or automatic motion and audio-based imaging and recording for creative and nature applications.
Using a 4G connection, you can watch live footage, review recordings and address alerts using the Hik-Connect app, and with built-in high-capacity 256 GB eMMC storage, long-term onboard recording allows users to maintain physical backups of security events without requiring traditional NVR connections or additional network/cloud storage options.
With the included water and dust-resistant solar panel and dual 90 Wh (260 Wh total) rechargeable lithium battery packs, you can run the camera for up to 8 days in Proactive mode, or up to 80 days in standby mode without charging; and with a lifetime of 500 battery cycles, you can ensure 24/7 operation without constant upkeep.
DS-2XS6A46G1-IZS/C36S80 8-32 Specs and Features:
- Camera
- Image Sensor:1/1.8"" progressive scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
- Shutter Speed: 1 s to 1/100,000 s
- Lens
- Focal Length and FOV:
- 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7°
- 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
- Lens Type: Auto, Semi-auto, Manual
- Aperture: 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
- Lens Mount: All-in-One Lens
- Focal Length and FOV:
- Illuminator
- Supplement Light Type: IR
- Supplement Light Range:
- 2.8 to 12 mm: Up to 30 m
- 8 to 32 mm: Up to 50 m
- Video
- Main Stream
- Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) - Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
- 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265/ H.264
- Sub-stream: H.265/H.264/MJPEG
- H.264+ and H.265+: main stream supports under performance mode
- Third Stream:
50 Hz: 1 fps (1280 × 720, 640 × 480)
60 Hz: 1 fps (1280 × 720, 640 × 480)
- Video Compression
- Main stream: H.264/H.265
- Sub-stream: H.264/H.265/MJPEG
- Third Stream: H.265/H.264
*Performance mode: main stream supports H.264+, H.265+
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI):4 fixed regions for main stream
- Main Stream
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- User/Host
- Up to 32 users
- 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
- Network Storage
- NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientHik-Connect (proactive mode also supports), Hik-central Professional
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Wireless (Mobile Communication)
- SIM Card Type: Micro SIM
- Frequency Standard: LTE-FDD/WCDMA
- Frequency:
- LTE-FDD: Band2/4/5/12/13/66/71
- WCDMA: Band2/4/5
- Image
- Wide Dynamic Range (WDR): 120 dB
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR, Defog
- Image Parameters Switch: Yes
- Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- SNR: ? 52 dB
- Privacy Mask: 4 programmable polygon privacy masks
- Interface
- Audio: 1 input (line in)
- max. input amplitude: 3.3 Vpp
- input impedance: 4.7 K?
- interface type: non-equilibrium
- 1 output (line out)
- max. output amplitude: 3.3 Vpp
- output impedance: 100 ?
- interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 12 VDC, 1 A)
- On-Board Storage
- Built-in memory card slot, support microSD card, up to 256 GB
- Built-in 256 GB eMMC storage
- Reset Key: Yes
- Ethernet Interface:1 RJ45 10 M/100 M self-adaptive Ethernet port
- Power Output: 12 VDC, max. 1000 mA
- Audio: 1 input (line in)
- Event
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
- General
- Power
- 12 VDC ± 20%, 4-pin M8 waterproof connector
- 1. Standby power consumption: 45 mW
- 2. The average power consumption of 24 hours (4G transmission is excluded): 3 W
- 3. The max. power consumption: 18 W (6 W if without 12 V load)
- Material: Metal
- Dimensions: 816.2 mm × 735.9 mm × 760 mm (32.1"" × 28.9"" × 29.9"")
- Weight: Approx. 26.450 kg (58.3 lb.)
- Storage Conditions: -20 °C to 60 °C (-4 °F to 140 °F).
- Startup And Operating Conditions: -20 °C to 60 °C (-4 °F to 140 °F).
- General Functions: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
- Power
- Battery
- Battery Type: Ternary Lithium
- Capacity: 8.4 Ah × 2 packs
- Max. Charging Voltage: 12.6 V
- Operating Temperature:
- Charging: -20 °C to 45 °C (-4 °F to 113 °F)
- Discharging: -20 °C to 55 °C (-4 °F to 131 °F)
- Battery Voltage: 9 V to 12.6 V
- Battery Lif: More than 500 cycles
- Cycle Lifetime:
- Performance mode: 3.6 days
- Proactive mode: 6 days
- Standby mode: 30 days
- Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
- Approval
- EMC
- CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014)
- RCM (AS/NZS CISPR 32: 2015)
- IC (ICES-003: Issue 7)
- RF
- CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133)
- ICASA: same as CE-RED
- IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5)
- MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
- Safety
- CB (IEC 62368-1:2014+A11)
- CE-LVD/UKCA (EN 62368-1:2014/A11:2017)
- LOA (IEC/EN 60950-1)
- Environment
- CE-RoHS (2011/65/EU);
- WEEE (2012/19/EU);
- Reach (Regulation (EC) No 1907/2006)
- Protection
- Camera: IP66 (IEC 60529-2013)
- Wind resistance 12 level, up to 40 m/s wind speed resistance
- EMC
