About the product

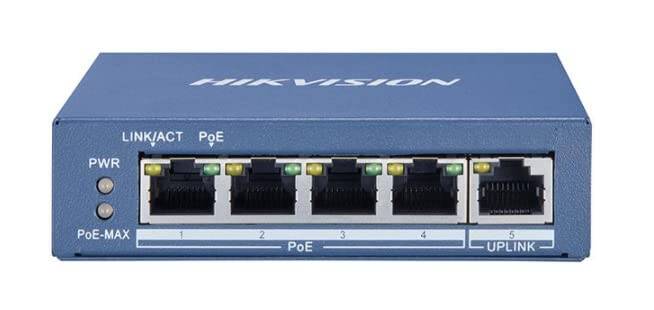

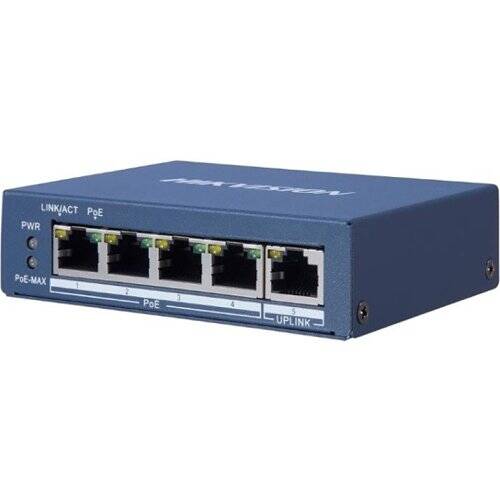

The Hikvision 4-Port Gigabit Unmanaged PoE+ Switch is a compact, Layer 2 network switch designed and optimized for video data transmission. IEEE 802.3 af & at networking, 4x Gigabit RJ45 10/100/1000 Mbps ethernet ports with a 30W per-port output (60W total) simplifies scalable camera systems with store-and-forward switching and plug-and-play camera connection and addressing. Ensures automatic re-addressing of disconnected cameras, ensuring both consistent power and gigabit data speeds to connected devices.
Study, fan-less metal design in a 4’’ x 1’’ x 3’’ package allows for low-profile installation, and the 6KV high surge protection provides extended protection for connected devices.
DS-3E0505P-E Specs and Features
- Shell: Metal material, fan-free design
- Net Weight: 0.26 kg (0.57 lb)
- Gross Weight: 0.84 kg (1.85 lb)
- Dimensions (W × H × D): 105.0 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Max. Power Consumption: 65 W
- Power Consumption in Idle: 5 W
- Installation Mode: Desk-Mounted, Wall-Mounted
- Surge Protection: 6 KV
- Ports: 4 × Gigabit PoE port, 1 × Gigabit RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Internal Cache: 1 Mbits
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-)
- PoE Ports: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
- EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU)
Technical Specifications
The Hikvision 4-Port Gigabit Unmanaged PoE+ Switch is a compact, Layer 2 network switch designed and optimized for video data transmission. IEEE 802.3 af & at networking, 4x Gigabit RJ45 10/100/1000 Mbps ethernet ports with a 30W per-port output (60W total) simplifies scalable camera systems with store-and-forward switching and plug-and-play camera connection and addressing. Ensures automatic re-addressing of disconnected cameras, ensuring both consistent power and gigabit data speeds to connected devices.
Study, fan-less metal design in a 4’’ x 1’’ x 3’’ package allows for low-profile installation, and the 6KV high surge protection provides extended protection for connected devices.
DS-3E0505P-E Specs and Features
- Shell: Metal material, fan-free design
- Net Weight: 0.26 kg (0.57 lb)
- Gross Weight: 0.84 kg (1.85 lb)
- Dimensions (W × H × D): 105.0 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Power Supply: 48 VDC, 1.35 A
- Max. Power Consumption: 65 W
- Power Consumption in Idle: 5 W
- Installation Mode: Desk-Mounted, Wall-Mounted
- Surge Protection: 6 KV
- Ports: 4 × Gigabit PoE port, 1 × Gigabit RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Internal Cache: 1 Mbits
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(+), 3/6(-)
- PoE Ports: Ports 1 to 4
- Max. Port Power: 30 W
- PoE Power Budget: 60 W
- EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU)
