About the product

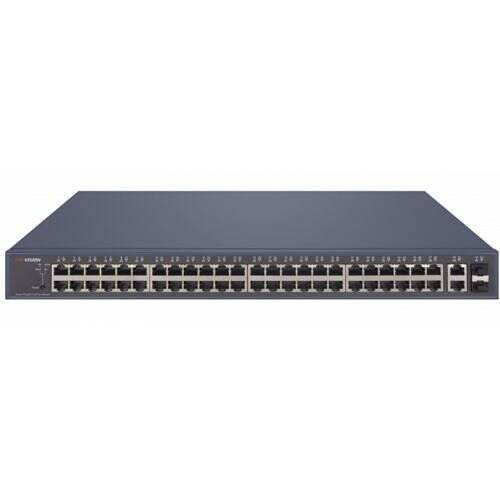

The Hikvision 48-Port Gigabit Smart PoE Switch is a convenient method to organize, install and monitor your PoE-based surveillance system with per-port level control and traffic shaping along with a suite of remote administrative controls. Hikvision’s smart-management software makes administration and network maintenance simple and flexible, allowing end-users to monitor network traffic, network heath, along with a variety of analytics—perfect for addressing device alarms and connections in real-time without on-site administration.
48x Gigabit ports with 470W of PoE power available allows for powerful, scalable camera systems to run with little interference or latency; and the 2x RJ45 and 2x fiber optic ports allow users to vastly expand connected devices and systems for easy, centralized administration and optimization with a robust 104 Gbps switching capacity and up to 16K MAC Address entries.
Built-in quality of life features for surveillance systems includes PoE Watchdog autodetection—automatically power-cycling cameras that do not respond to prevent software and network-related outages—and QoS bandwidth allocation for priority coverage areas allow for effortless, one-click remote management software available through Hikvision.
DS-3E1552P-SI Specs and Features:
- Outer casing material: Metal alloy
- Ports: 48 × Gigabit PoE port, 2 × Gigabit RJ45 port, 2 × Gigabit fiber optical port
- MAC Address Table: 16 K
- Switching Capacity: 104 Gbps
- Packet Forwarding Rate: 77.38 Mpps
- Internal Cache: 12 Mbits
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Max. Port Power: 30 W
- PoE Power Budget: 470 W
- Software Function: Long Range Cable Transmission (up to 300m), Port Isolation, PoE Watchdog, Link Aggregation, QoS, Loop Prevention, VLAN, Hik-Partner Pro, System Maintenance, Port Rate-Limiting, Storm Control, STP/RSTP, SNMP
- Weight: 4.5 kg (9.92 lb)
- Dimensions (W × H × D): 440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 5 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 500 W
- Power Consumption in Idle: 30 W
- Surge Protection: 6 KV
- Certifications:
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
Technical Specifications
The Hikvision 48-Port Gigabit Smart PoE Switch is a convenient method to organize, install and monitor your PoE-based surveillance system with per-port level control and traffic shaping along with a suite of remote administrative controls. Hikvision’s smart-management software makes administration and network maintenance simple and flexible, allowing end-users to monitor network traffic, network heath, along with a variety of analytics—perfect for addressing device alarms and connections in real-time without on-site administration.
48x Gigabit ports with 470W of PoE power available allows for powerful, scalable camera systems to run with little interference or latency; and the 2x RJ45 and 2x fiber optic ports allow users to vastly expand connected devices and systems for easy, centralized administration and optimization with a robust 104 Gbps switching capacity and up to 16K MAC Address entries.
Built-in quality of life features for surveillance systems includes PoE Watchdog autodetection—automatically power-cycling cameras that do not respond to prevent software and network-related outages—and QoS bandwidth allocation for priority coverage areas allow for effortless, one-click remote management software available through Hikvision.
DS-3E1552P-SI Specs and Features:
- Outer casing material: Metal alloy
- Ports: 48 × Gigabit PoE port, 2 × Gigabit RJ45 port, 2 × Gigabit fiber optical port
- MAC Address Table: 16 K
- Switching Capacity: 104 Gbps
- Packet Forwarding Rate: 77.38 Mpps
- Internal Cache: 12 Mbits
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- Max. Port Power: 30 W
- PoE Power Budget: 470 W
- Software Function: Long Range Cable Transmission (up to 300m), Port Isolation, PoE Watchdog, Link Aggregation, QoS, Loop Prevention, VLAN, Hik-Partner Pro, System Maintenance, Port Rate-Limiting, Storm Control, STP/RSTP, SNMP
- Weight: 4.5 kg (9.92 lb)
- Dimensions (W × H × D): 440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 5 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 500 W
- Power Consumption in Idle: 30 W
- Surge Protection: 6 KV
- Certifications:
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
