About the product

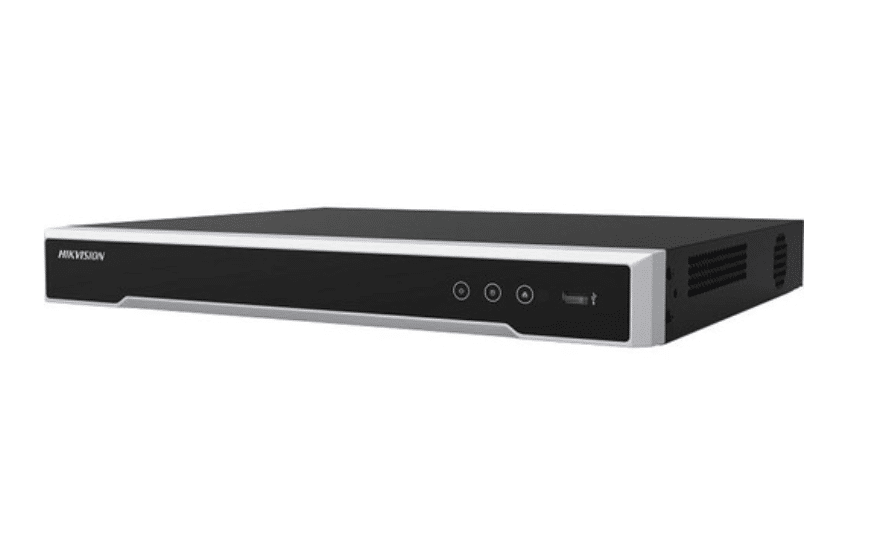

The Hikvision M Series DS-7616NI-M2/16P 16-Channel is designed to provide professional recording and reliability.
Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Features:
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides a more secure stream transmission service
- Support double verification for playback and downloading HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution Storage and Playback
- Up to 2 SATA interfaces for HDD connection
- 16-ch synchronous playback Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Specifications:
Video and Audio
- IP Video Input: 16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback: 16-ch Decoding Capability 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)
- Dual-Stream: Recording Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ? 200 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity Up to 14 TB capacity for each HDD
- Alarm In/Out 4/1
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply 100 to 240 VAC, 50 to 60 Hz
- Consumption ? 15 W (without HDD and PoE off)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 385 × 315 × 52 mm (15.2"" × 12.4"" × 2.0"")
- Weight ? 3 kg (without HDD, 2.2 lb.)
Technical Specifications
The Hikvision M Series DS-7616NI-M2/16P 16-Channel is designed to provide professional recording and reliability.
Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Features:
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides a more secure stream transmission service
- Support double verification for playback and downloading HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution Storage and Playback
- Up to 2 SATA interfaces for HDD connection
- 16-ch synchronous playback Smart & POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
- POS information overlay on live view and playback, and POS triggered recording and alarm Network & Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
- Smooth streaming technology
- Support web access without plug-in
Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Specifications:
Video and Audio
- IP Video Input: 16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Synchronous Playback: 16-ch Decoding Capability 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)
- Dual-Stream: Recording Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ? 200 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity Up to 14 TB capacity for each HDD
- Alarm In/Out 4/1
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply 100 to 240 VAC, 50 to 60 Hz
- Consumption ? 15 W (without HDD and PoE off)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 385 × 315 × 52 mm (15.2"" × 12.4"" × 2.0"")
- Weight ? 3 kg (without HDD, 2.2 lb.)
