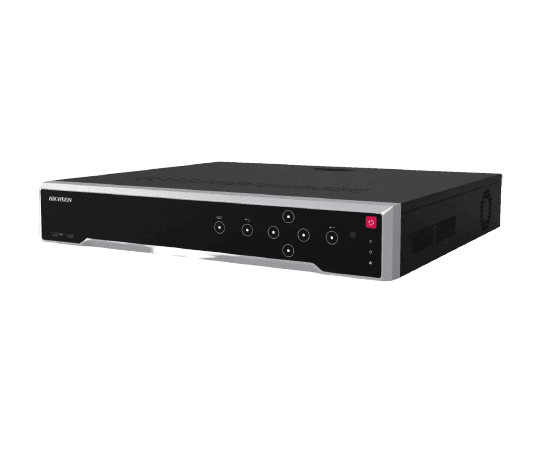

Hikvision 8K 32 Channel NVR with 16 PoE Ports (Max 8CH in Ultra Mode) (DS-7732NI-M4/16P)

Hikvision 8K 32 Channel NVR with 16 PoE Ports (Max 8CH in Ultra Mode) (DS-7732NI-M4/16P)

$1,678.99 CAD
$1,880.99 CAD $1,678.99 CAD
-10% OFF Ask for quote
Shipping calculated at checkout.

Hikvision 8K 32 Channel NVR with 16 PoE Ports (Max 8CH in Ultra Mode) (DS-7732NI-M4/16P)

VPN:DS-7732NI-M4/16P      SKU:AT471224      UPC:842571145991

Volume discount available - Ask for quote..

View full details

Recently Viewed

Hikvision 8K 32 Channel NVR with 16 PoE Ports (Max 8CH in Ultra Mode) (DS-7732NI-M4/16P)

Product information summary

Hikvision 8K 32 Channel NVR with 16 PoE Ports (Max 8CH in Ultra Mode) (DS-7732NI-M4/16P)

About the product

The DS-7732NI-M4/16P is a powerful 8K 32-channel Network Video Recorder (NVR) offered by Hikvision. With support for up to 8 channels in Ultra HD resolution, this NVR ensures crystal-clear video footage. It also offers advanced features such as smart event detection and deep learning functions. With its reliable performance and robust construction, the DS-7732NI-M4/16P NVR is an excellent choice for professional surveillance systems, available at Wholesale Distributor Aartech Canada.

Hikvision 8K 32 Channel NVR with 16 PoE Ports Features:

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
  • Dual 4K HDMI output resolution
  • Storage and Playback
  • Up to 4 SATA interfaces for HDD connection
  • 16-ch synchronous playback

Smart & POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

  • 16 independent PoE network interfaces
  • 1 self-adaptive 10/100/1000 Mbps Ethernet interface
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in

Hikvision 8K 32 Channel NVR with 16 PoE Ports Specifications:

Video and Audio

  • IP Video Input: 32-ch
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
  • 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output: 1-ch, RCA (Linear, 1 K?)
  • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding

  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 16-ch
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
  • Dual-Stream Recording Support: Stream Type Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ? 200 W
  • Standard: IEEE 802.3 af/at

RAID

  • RAID Type: N/A

General

  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: ? 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension: (W × D × H) 445 × 400 × 75 mm ( 17.5""× 15.7"" × 3.0"")
  • Weight: ? 5 kg (without HDD, 11 lb.)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020





Technical Specifications

The DS-7732NI-M4/16P is a powerful 8K 32-channel Network Video Recorder (NVR) offered by Hikvision. With support for up to 8 channels in Ultra HD resolution, this NVR ensures crystal-clear video footage. It also offers advanced features such as smart event detection and deep learning functions. With its reliable performance and robust construction, the DS-7732NI-M4/16P NVR is an excellent choice for professional surveillance systems, available at Wholesale Distributor Aartech Canada.

Hikvision 8K 32 Channel NVR with 16 PoE Ports Features:

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
  • Dual 4K HDMI output resolution
  • Storage and Playback
  • Up to 4 SATA interfaces for HDD connection
  • 16-ch synchronous playback

Smart & POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network & Ethernet Access

  • 16 independent PoE network interfaces
  • 1 self-adaptive 10/100/1000 Mbps Ethernet interface
  • Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
  • Smooth streaming technology
  • Support web access without plug-in

Hikvision 8K 32 Channel NVR with 16 PoE Ports Specifications:

Video and Audio

  • IP Video Input: 32-ch
  • Incoming Bandwidth: 320 Mbps
  • Outgoing Bandwidth: 400 Mbps
  • HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
  • 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Audio Output: 1-ch, RCA (Linear, 1 K?)
  • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding

  • Decoding Format: H.265+/H.265/H.264+/H.264
  • Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Synchronous Playback: 16-ch
  • Decoding Capability: 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
  • Dual-Stream Recording Support: Stream Type Video, Video & Audio
  • Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

  • Remote Connection: 128
  • Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
  • Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

  • Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • Power: ? 200 W
  • Standard: IEEE 802.3 af/at

RAID

  • RAID Type: N/A

General

  • Power Supply: 100 to 240 VAC, 50 to 60 Hz
  • Consumption: ? 15 W (without HDD and PoE off)
  • Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity: 10% to 90%
  • Chassis: 19-inch rack-mounted 1.5U chassis
  • Dimension: (W × D × H) 445 × 400 × 75 mm ( 17.5""× 15.7"" × 3.0"")
  • Weight: ? 5 kg (without HDD, 11 lb.)

Certification

  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
