About the product

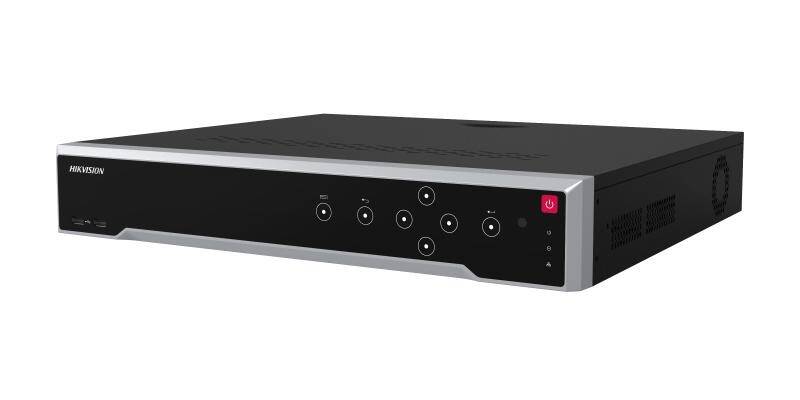

The Hikvision M Series 32-Channel 8K NVR allows users to manage up to 32 cameras—including ultra-high-resolution cameras up to 32MP/8K resolution. Equipped with four SATA ports with up to 16TB per drive—the M Series NVR can support scalable security systems from boutique, single or multi-camera setups in small business or residential applications; all the way up to cutting-edge UHD surveillance systems in industrial complexes and multi-floor office buildings. Featuring 24 PoE-equipped ports and an additional 8 channels for easy plug-and-play installation, and built-in analytics offer advanced control and alarming with compatible hardware.
Supports playback up to 8K resolution (HDMI output only). Hard drive not included. Two-way audio supported.
DS-7732NI-M4/24P Specs and Features:
- Supports recording up to 32MP
- 16-channel synchronous playback
- Dual 4K output and 8K output supported via HDMI
- 32-channel input
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps

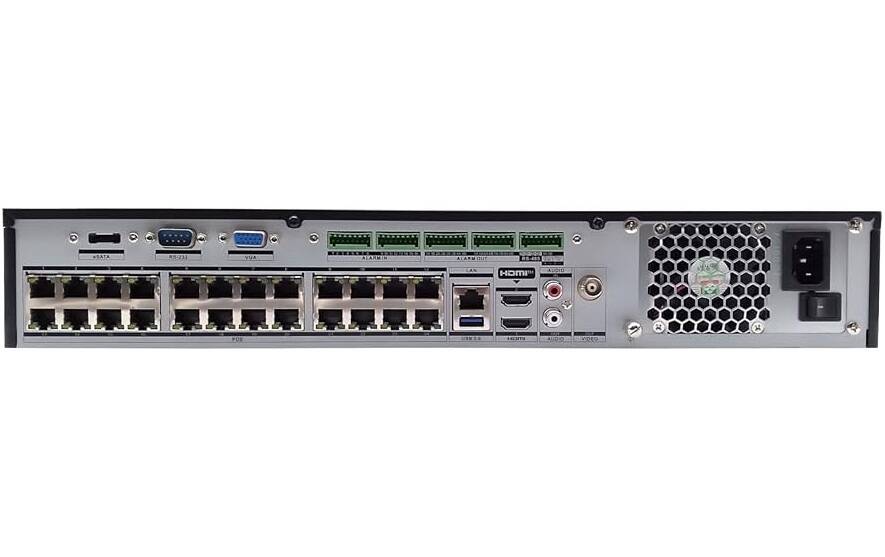

- 2 HDMI Outputs, 1x VGA Output
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), 704 × 480 Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE Power: ? 210 W
- Standard IEEE: 802.3 af/at
- Auxiliary Interface
- eSATA: 1 eSATA interface
- SATA: 4 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD (not included)
- Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out: 16/9
- USB Interface:
- Front panel: 2 × USB 2.0
- Rear panel: 1 × USB 3.0
- Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device. The power will be turned on when the alarm output is triggered. The Ctrl 12V power is controlled by alarm output 9.
- DC 12V: 12 VDC, 1 A power output
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimensions (W × D × H): 445 × 400 × 75 mm ( 17.5""× 15.7"" × 3.0"")
- Weight: ? 5 kg (without HDD, 11 lb.)
- Certifications: CE, REACH, WEEE, FCC, CB, RCM, KC, UL
Technical Specifications
The Hikvision M Series 32-Channel 8K NVR allows users to manage up to 32 cameras—including ultra-high-resolution cameras up to 32MP/8K resolution. Equipped with four SATA ports with up to 16TB per drive—the M Series NVR can support scalable security systems from boutique, single or multi-camera setups in small business or residential applications; all the way up to cutting-edge UHD surveillance systems in industrial complexes and multi-floor office buildings. Featuring 24 PoE-equipped ports and an additional 8 channels for easy plug-and-play installation, and built-in analytics offer advanced control and alarming with compatible hardware.
Supports playback up to 8K resolution (HDMI output only). Hard drive not included. Two-way audio supported.
DS-7732NI-M4/24P Specs and Features:
- Supports recording up to 32MP
- 16-channel synchronous playback
- Dual 4K output and 8K output supported via HDMI
- 32-channel input
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 400 Mbps
- 2 HDMI Outputs, 1x VGA Output
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), 704 × 480 Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface PoE Interface: 24, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE Power: ? 210 W
- Standard IEEE: 802.3 af/at
- Auxiliary Interface
- eSATA: 1 eSATA interface
- SATA: 4 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD (not included)
- Serial Interface: 2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out: 16/9
- USB Interface:
- Front panel: 2 × USB 2.0
- Rear panel: 1 × USB 3.0
- Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device. The power will be turned on when the alarm output is triggered. The Ctrl 12V power is controlled by alarm output 9.
- DC 12V: 12 VDC, 1 A power output
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimensions (W × D × H): 445 × 400 × 75 mm ( 17.5""× 15.7"" × 3.0"")
- Weight: ? 5 kg (without HDD, 11 lb.)
- Certifications: CE, REACH, WEEE, FCC, CB, RCM, KC, UL
