MDS 9148S HW BASE 12PORTS ACTIVE SPARE

High Performance and Flexibility at Low Cost

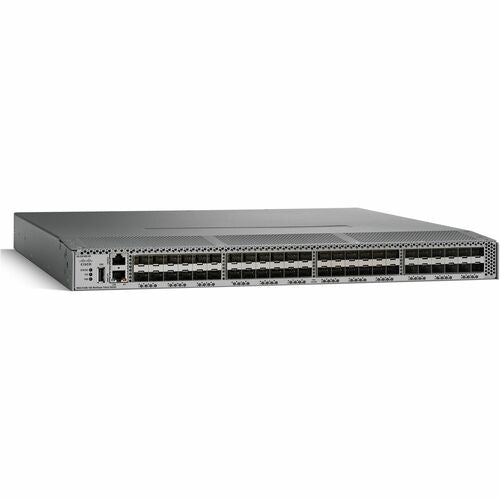

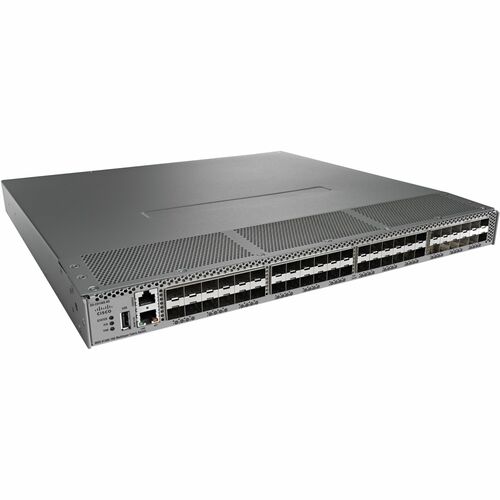

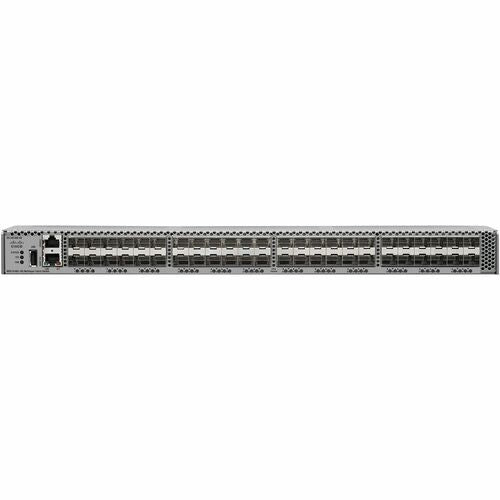

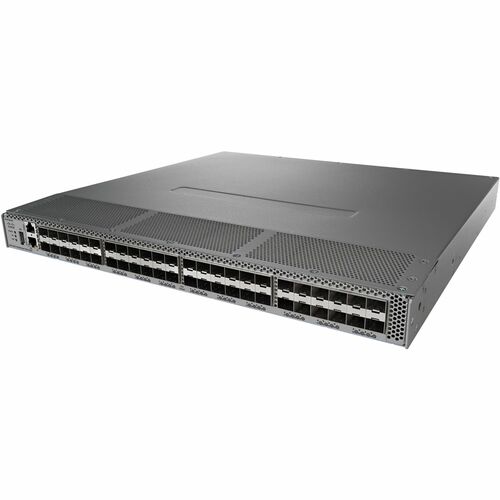

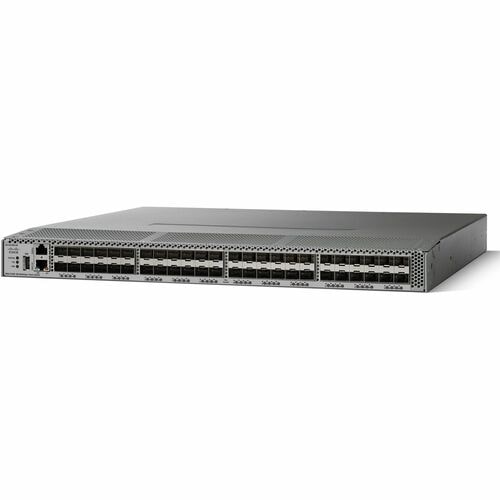

Up to 48 autosensing Fibre Channel ports are capable of speeds of 2, 4, 8, and 16 Gbps, with 16 Gbps of dedicated bandwidth for each port. The base switch model comes with 12 ports enabled, and can be upgraded as needed with the 12-port Cisco MDS 9148S On-Demand Port Activation license to support configurations of 24, 36, or 48 enabled ports. Only the Cisco MDS 9148S scales from 12 to 48 high-performance Fibre Channel ports in a single 1RU form factor. The 16-Gbps MDS 9148S is the first generation of NVMe ready Fibre Channel 1RU switches1 When deployed as a N-Port virtualization (NPV) node or as an N-Port ID Virtualization (NPIV) core connecting legacy Fibre channel switches or multi-protocol Nexus NPV switches, it provides a flexible and scalable option for host connectivity.

High-Availability Platform for Mission-Critical Deployments

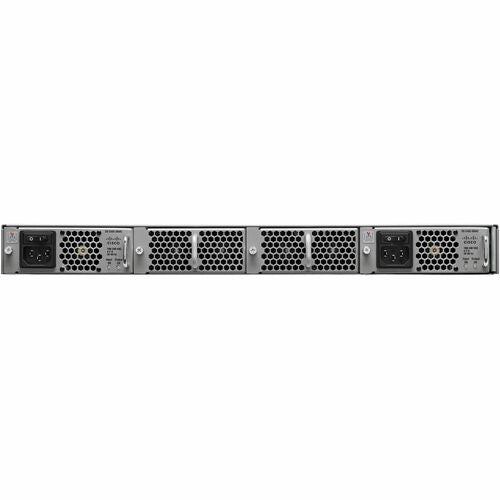

In environments in which downtime is intolerable, the Cisco MDS 9148S offers In-Service Software Upgrades (ISSU). This means that Cisco NX-OS Software can be upgraded while the Fibre Channel ports carry traffic. The Cisco MDS 9148S includes dual redundant hot-swappable power supplies and fan trays, PortChannels for Inter-Switch Link (ISL) resiliency, and F-port channeling for resiliency on uplinks from a Cisco MDS 9148S operating in NPV mode. New hardware based slow port detection and recovery provide enhanced performance and monitoring capability.

Simplified Storage Management with Sophisticated Diagnostics

The Cisco MDS 9148S offers built-in storage network management and SAN plug-and-play capabilities. All features are available through a Command-Line Interface (CLI) or Cisco Prime DCNM for SAN Essentials Edition, a centralized management tool. Cisco DCNM task-based wizards simplify management of single or multiple switches and fabrics. For virtual infrastructure, it manages the entire path: from the virtual machine and switch to the physical storage. The Cisco MDS 9148S also supports PowerOn Auto Provisioning (POAP) to automate software image upgrades and configuration file installation on newly deployed switches. Additionally, it provides intelligent diagnostics, protocol decoding, network analysis tools, and Cisco Call Home for added reliability, faster problem resolution, and reduced service costs.

Intelligent Network Services and Advanced Traffic Management

The Cisco MDS 9148S uses virtual SAN (VSAN) technology for hardware-enforced, isolated environments within a physical fabric. It offers access control lists (ACLs) for hardware-based, intelligent frame processing. Advanced traffic management features, such as fabricwide Quality of Service (QoS) and Inter-VSAN Routing (IVR), are included in the optional Cisco MDS 9000 Family Enterprise Package. QoS prioritizes application data traffic for better and more predictable network service. Zone-based QoS simplifies configuration and administration by using the familiar zoning concept. IVR facilitates resource sharing across VSANs without compromising scalability, reliability, availability, and network security.

• Reduce Total Cost of Ownership (TCO) by using Cisco NX-OS and Cisco Prime DCNM for consistent provisioning, management, and diagnostic capabilities across the fabric.
• Automate deployment and upgrade of software images.
• Reduce consumption of hardware resources and administrative time needed to create and manage zones.
• Enhance reliability, speed problem resolution, and reduce service costs by using Fibre Channel ping and traceroute to identify exact path and timing of flows, as well as Cisco Switched Port Analyzer (SPAN) and Remote SPAN (RSPAN) and Cisco Fabric Analyzer to capture and analyze network traffic.
• Help ensure line-rate performance on each port by eliminating head-of-line blocking.
• Optimize bandwidth utilization by aggregating up to 16 physical ISLs into a single logical PortChannel bundle with multipath load balancing.
• Reduce downtime for planned maintenance and software upgrades.
