About the product

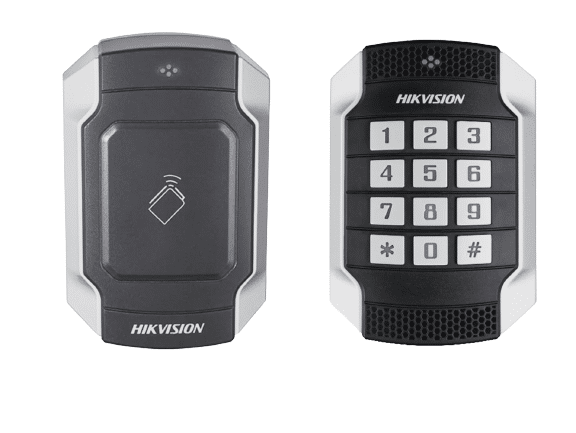

The DS-K1104M is a metal vandal-proof Mifare card reader from the Hikvision 1104 Series, available through Aartech Canada. This durable and robust card reader offers reliable access control solutions with its advanced Mifare card technology. Its vandal-proof construction ensures protection against tampering, making it suitable for various environments. The DS-K1104M is an excellent choice for those looking for a dependable and durable Mifare card reader for their access control systems.
Hikvision DS-K1104M 1104 Series Metal Vandal-proof Mifare Card Reader Features:
- PC + zinc-alloy material shell (material protection level is IK 10)
- Equipped with the 32-bit high-speed processor
- Read the Mifare card and obtain card No.
- Built-in audible beeper
- Display the reader status with an LED indicator DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- The online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
- Watchdog is designed for repairing itself in case an exception occurs, to ensure the long service life of the reader
- Dust-proof and water-proof design
Hikvision DS-K1104M 1104 Series Metal Vandal-proof Mifare Card Reader Specifications:
- Model: DS-K1104M
- Power Supply: 12V DC
- Working Current: ?500mA
- Processor: 32-bit
- Reading Frequency: 13.56MHz
- Reading Range: ?50mm (?1.97"")
- ID Settings: via DIP Switch
- Audio: Alert Beeper
- Power Consumption: ?2W
- Keypad: No Keypad
- Certifications: FCC, CE
- LED Indicator: Power Indicator; Status LED Indicator
- Working Temperature: -20°C to + 65°C (-4°F to + 149°F)
- Working Humidity: 10% to 90% (Non-Condensing)
- Protection Level: IP 65
- Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91"")
- Weight: ? 0.52kg
- Installing Method Applied for 86 & 120 Gang Box
Technical Specifications
The DS-K1104M is a metal vandal-proof Mifare card reader from the Hikvision 1104 Series, available through Aartech Canada. This durable and robust card reader offers reliable access control solutions with its advanced Mifare card technology. Its vandal-proof construction ensures protection against tampering, making it suitable for various environments. The DS-K1104M is an excellent choice for those looking for a dependable and durable Mifare card reader for their access control systems.
Hikvision DS-K1104M 1104 Series Metal Vandal-proof Mifare Card Reader Features:
- PC + zinc-alloy material shell (material protection level is IK 10)
- Equipped with the 32-bit high-speed processor
- Read the Mifare card and obtain card No.
- Built-in audible beeper
- Display the reader status with an LED indicator DIP switch
- RS485 and Wiegand(W26/W34) protocol
- Tamper-proof alarm
- The online upgrade function (under the 485 communication mode), and card reader can degrade to pre-upgrade status in case of upgrading failed
- Watchdog is designed for repairing itself in case an exception occurs, to ensure the long service life of the reader
- Dust-proof and water-proof design
Hikvision DS-K1104M 1104 Series Metal Vandal-proof Mifare Card Reader Specifications:
- Model: DS-K1104M
- Power Supply: 12V DC
- Working Current: ?500mA
- Processor: 32-bit
- Reading Frequency: 13.56MHz
- Reading Range: ?50mm (?1.97"")
- ID Settings: via DIP Switch
- Audio: Alert Beeper
- Power Consumption: ?2W
- Keypad: No Keypad
- Certifications: FCC, CE
- LED Indicator: Power Indicator; Status LED Indicator
- Working Temperature: -20°C to + 65°C (-4°F to + 149°F)
- Working Humidity: 10% to 90% (Non-Condensing)
- Protection Level: IP 65
- Dimensions: 118 mm × 76 mm × 23 mm (4.65” × 2.99” × 0.91"")
- Weight: ? 0.52kg
- Installing Method Applied for 86 & 120 Gang Box
