About the product

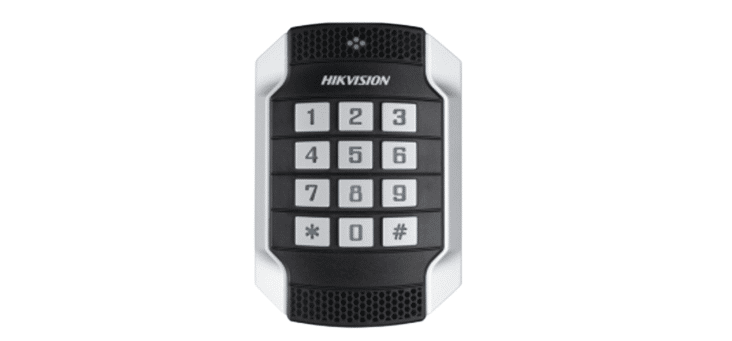

The DS-K1104MK from the Hikvision 1104 Series is a vandal-proof Mifare card reader with a built-in keypad, available through Aartech Canada. This robust and durable access control device offers advanced security features and efficient entry management. Its metal construction ensures long-lasting performance, making it an excellent choice for applications that demand reliable and resilient access control solutions.
Hikvision DS-K1104MK 1104 Series Metal Vandal-proof Mifare Card Reader with Keypad Features:
- LED Reader Status Indicator
- Tamper-ResistantAlarm
- SupportsMifareCards
- Keypad(Option)
- RS-485andWiegand(W26/W34)Protocols
Hikvision DS-K1104MK 1104 Series Metal Vandal-proof Mifare Card Reader with Keypad Specifications:
- Power Supply: 12 VDC
- Working Current: ?500mA
- Processor: 32-bit
- Reading Frequency: 13.56 MHz
- Reading Range: ? 1.97"" (? 50 mm)
- ID Settings: DIP switch
- Audio Alert: Beeper
- Power Consumption: ?2W
- Keypad: Keypad w/12 keys (0 to 9, *, #)
- Certifications: CE, FCC, UL 60950-1
- LED Indicator: Power indicator; status LED indicator
- Working Temperature: -4° to +149° F (-20° to +65° C)
- Working Humidity: 10% to 90% (non-condensing)
- Protection Level: IP 65
- Dimensions: 4.65""×2.99""×0.91"" (118mm×76mm×23mm)
- Weight: ? 18.34 oz (? 0.52 kg)
- Installation Method: Standard U.S. single gang box
Technical Specifications
The DS-K1104MK from the Hikvision 1104 Series is a vandal-proof Mifare card reader with a built-in keypad, available through Aartech Canada. This robust and durable access control device offers advanced security features and efficient entry management. Its metal construction ensures long-lasting performance, making it an excellent choice for applications that demand reliable and resilient access control solutions.
Hikvision DS-K1104MK 1104 Series Metal Vandal-proof Mifare Card Reader with Keypad Features:
- LED Reader Status Indicator
- Tamper-ResistantAlarm
- SupportsMifareCards
- Keypad(Option)
- RS-485andWiegand(W26/W34)Protocols
Hikvision DS-K1104MK 1104 Series Metal Vandal-proof Mifare Card Reader with Keypad Specifications:
- Power Supply: 12 VDC
- Working Current: ?500mA
- Processor: 32-bit
- Reading Frequency: 13.56 MHz
- Reading Range: ? 1.97"" (? 50 mm)
- ID Settings: DIP switch
- Audio Alert: Beeper
- Power Consumption: ?2W
- Keypad: Keypad w/12 keys (0 to 9, *, #)
- Certifications: CE, FCC, UL 60950-1
- LED Indicator: Power indicator; status LED indicator
- Working Temperature: -4° to +149° F (-20° to +65° C)
- Working Humidity: 10% to 90% (non-condensing)
- Protection Level: IP 65
- Dimensions: 4.65""×2.99""×0.91"" (118mm×76mm×23mm)
- Weight: ? 18.34 oz (? 0.52 kg)
- Installation Method: Standard U.S. single gang box
