About the product

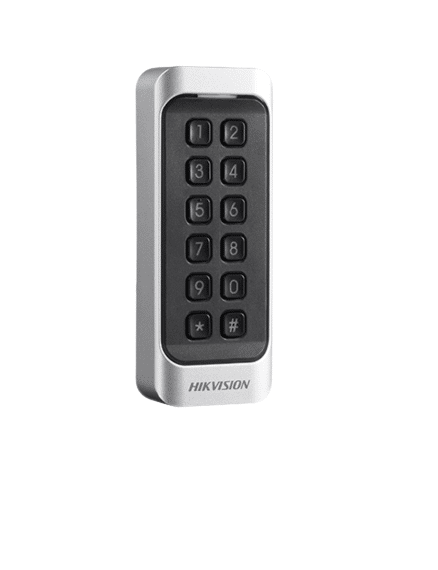

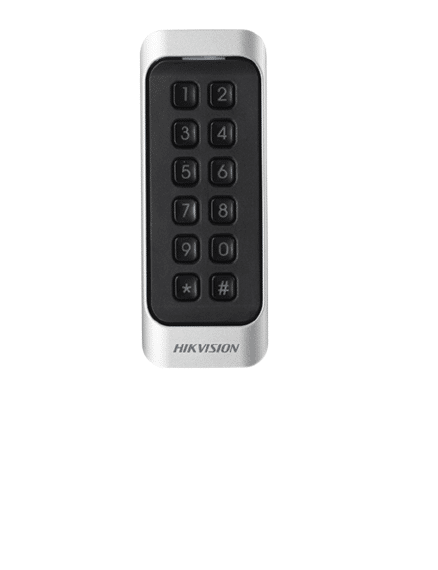

The DS-K1107AMK MIFARE Hikvision Mifare Card Reader with Keypad on Aartech Canada is designed to read MIFARE contactless smart cards. It's equipped with a numeric keypad for an additional layer of secure access control and has a tampering alarm. It is IP65-rated, making it suitable for use in outdoor areas.
Hikvision DS-K1107AMK Mifare Card Reader with Keypad Features:
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP
- protocol
- Built-in Mifare card reading module(Frequency:13.56 MHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Hikvision DS-K1107AMK Mifare Card Reader with Keypad Specifications:
- System: DS-K1107AMK
- Processor: 32-bit
- Interface:
- TAMPER: Support
- RS-485: Support
- Wiegand: Support (set via DIP switch)
- Authentication:
- Card reading frequency: 13.56 MHz
- Card reading distance: ?50 mm (?1.97"")
- General:
- Indicator: Power indicator, status indicator
- Power supply: 12 VDC
- Power consumption: ?2 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 10% to 90% (Non-Condensing)
- Protective level: IP65
- Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- Installation: Wall Mounting with Screws; Does Not Support Gang Box
- Keypad: Keypad with 12 Keys (0~9, *, #)
- Buzzer: Support
Technical Specifications
The DS-K1107AMK MIFARE Hikvision Mifare Card Reader with Keypad on Aartech Canada is designed to read MIFARE contactless smart cards. It's equipped with a numeric keypad for an additional layer of secure access control and has a tampering alarm. It is IP65-rated, making it suitable for use in outdoor areas.
Hikvision DS-K1107AMK Mifare Card Reader with Keypad Features:
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP
- protocol
- Built-in Mifare card reading module(Frequency:13.56 MHz).
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Hikvision DS-K1107AMK Mifare Card Reader with Keypad Specifications:
- System: DS-K1107AMK
- Processor: 32-bit
- Interface:
- TAMPER: Support
- RS-485: Support
- Wiegand: Support (set via DIP switch)
- Authentication:
- Card reading frequency: 13.56 MHz
- Card reading distance: ?50 mm (?1.97"")
- General:
- Indicator: Power indicator, status indicator
- Power supply: 12 VDC
- Power consumption: ?2 W
- Working temperature: -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity: 10% to 90% (Non-Condensing)
- Protective level: IP65
- Dimensions: 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'')
- Installation: Wall Mounting with Screws; Does Not Support Gang Box
- Keypad: Keypad with 12 Keys (0~9, *, #)
- Buzzer: Support
