About the product

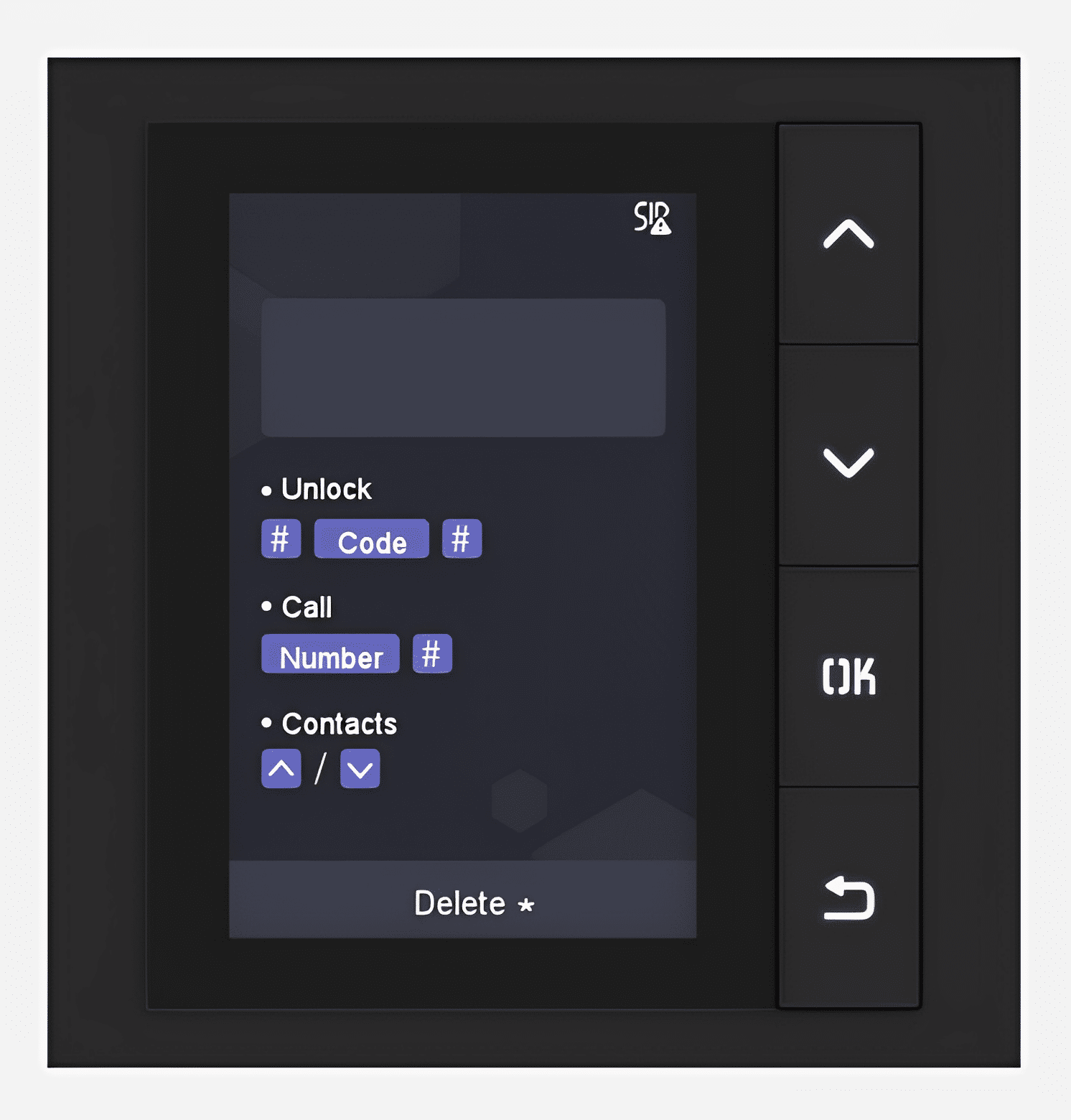

Hikvision Video Intercom Modular Station Sub Module - 3.5"" LCD 4 Buttons
Hikvision Video Intercom Sub Module Features
KD8 Series Pro Modular Door Station
- The modular door station Display module needs a mounting bracket
- 3.5 inch LCD screen, 4 buttons, backlight, IP65
- Dial number display, pin code unlock, contact list display
- Up to 2000 contacts can be added to the device
- Stores and searches contact list
- Multiple languages
Hikvision Video Intercom Sub Module Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 8 MB
- RAM: 64 MB
- CPU: Embedded MCU Processor
- Display Parameters
- Screen Size: 3.5-inch
- Operation Method: Physical buttons
- Type: TFT LCD screen
- Resolution: 320 × 480p
- Brightness: 250 cd/m2
- Video Parameters
- Lens: /
- Resolution: /
- FOV: /
- WDR: /
- Supplement Light: /
- Video Compression Standard: /
- Audio Parameters
- Audio Compression Standard: /
- Audio Input: /
- Audio Output: /
- Audio Compression Bitrate: /
- Audio Quality: /
- Volume Adjustment: /
- Capacity
- User Capacity: /
- Face Capacity: /
- Card Capacity: /
- Linked Network Camera Capacity: /
- Network Parameters
- Communication Protocol: /
- Wired Network: /
- Wi-Fi Standard: /
- Bluetooth Version: /
- 3G/4G Standard: /
- Device Interfaces
- Alarm Input: /
- Network Interface: /
- TAMPER: /
- Exit Button: /
- RS-485: 1
- USB: /
- Wiegand: /
- TF Card: /
- Alarm Output: /
- Lock Control: /
- Door Contact Input: /
- Power Interface: 1
- Performances
- Multi-Factor Authentication: /
- General
- Button: 4( Up, Down, OK, Back)
- Installation: Flush mounting, surface mounting
- Indicator: /, /
- Protective Level: IP65
- Working Temperature: 20° C to +60° C(-4° F to 140° F)
- Working Humidity: 10% to 95%
- Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87"" × 3.95"" × 1.33"")
- Battery: /
- Application Environment: Outdoor
- Power Consumption: 2.5 W
Technical Specifications
Hikvision Video Intercom Modular Station Sub Module - 3.5"" LCD 4 Buttons
Hikvision Video Intercom Sub Module Features
KD8 Series Pro Modular Door Station
- The modular door station Display module needs a mounting bracket
- 3.5 inch LCD screen, 4 buttons, backlight, IP65
- Dial number display, pin code unlock, contact list display
- Up to 2000 contacts can be added to the device
- Stores and searches contact list
- Multiple languages
Hikvision Video Intercom Sub Module Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 8 MB
- RAM: 64 MB
- CPU: Embedded MCU Processor
- Display Parameters
- Screen Size: 3.5-inch
- Operation Method: Physical buttons
- Type: TFT LCD screen
- Resolution: 320 × 480p
- Brightness: 250 cd/m2
- Video Parameters
- Lens: /
- Resolution: /
- FOV: /
- WDR: /
- Supplement Light: /
- Video Compression Standard: /
- Audio Parameters
- Audio Compression Standard: /
- Audio Input: /
- Audio Output: /
- Audio Compression Bitrate: /
- Audio Quality: /
- Volume Adjustment: /
- Capacity
- User Capacity: /
- Face Capacity: /
- Card Capacity: /
- Linked Network Camera Capacity: /
- Network Parameters
- Communication Protocol: /
- Wired Network: /
- Wi-Fi Standard: /
- Bluetooth Version: /
- 3G/4G Standard: /
- Device Interfaces
- Alarm Input: /
- Network Interface: /
- TAMPER: /
- Exit Button: /
- RS-485: 1
- USB: /
- Wiegand: /
- TF Card: /
- Alarm Output: /
- Lock Control: /
- Door Contact Input: /
- Power Interface: 1
- Performances
- Multi-Factor Authentication: /
- General
- Button: 4( Up, Down, OK, Back)
- Installation: Flush mounting, surface mounting
- Indicator: /, /
- Protective Level: IP65
- Working Temperature: 20° C to +60° C(-4° F to 140° F)
- Working Humidity: 10% to 95%
- Dimensions: 98.5 mm × 100 mm × 34.2 mm (3.87"" × 3.95"" × 1.33"")
- Battery: /
- Application Environment: Outdoor
- Power Consumption: 2.5 W
