About the product

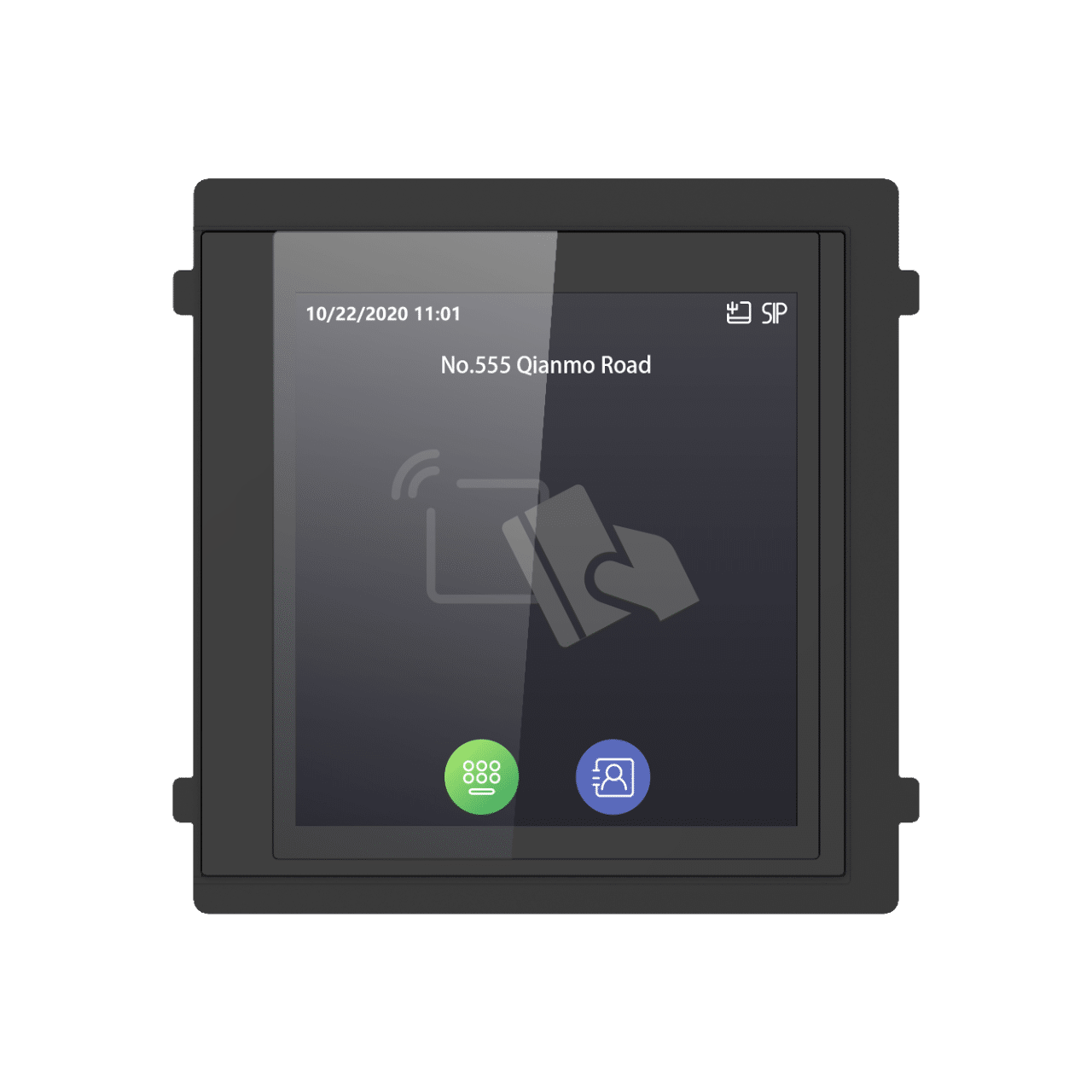

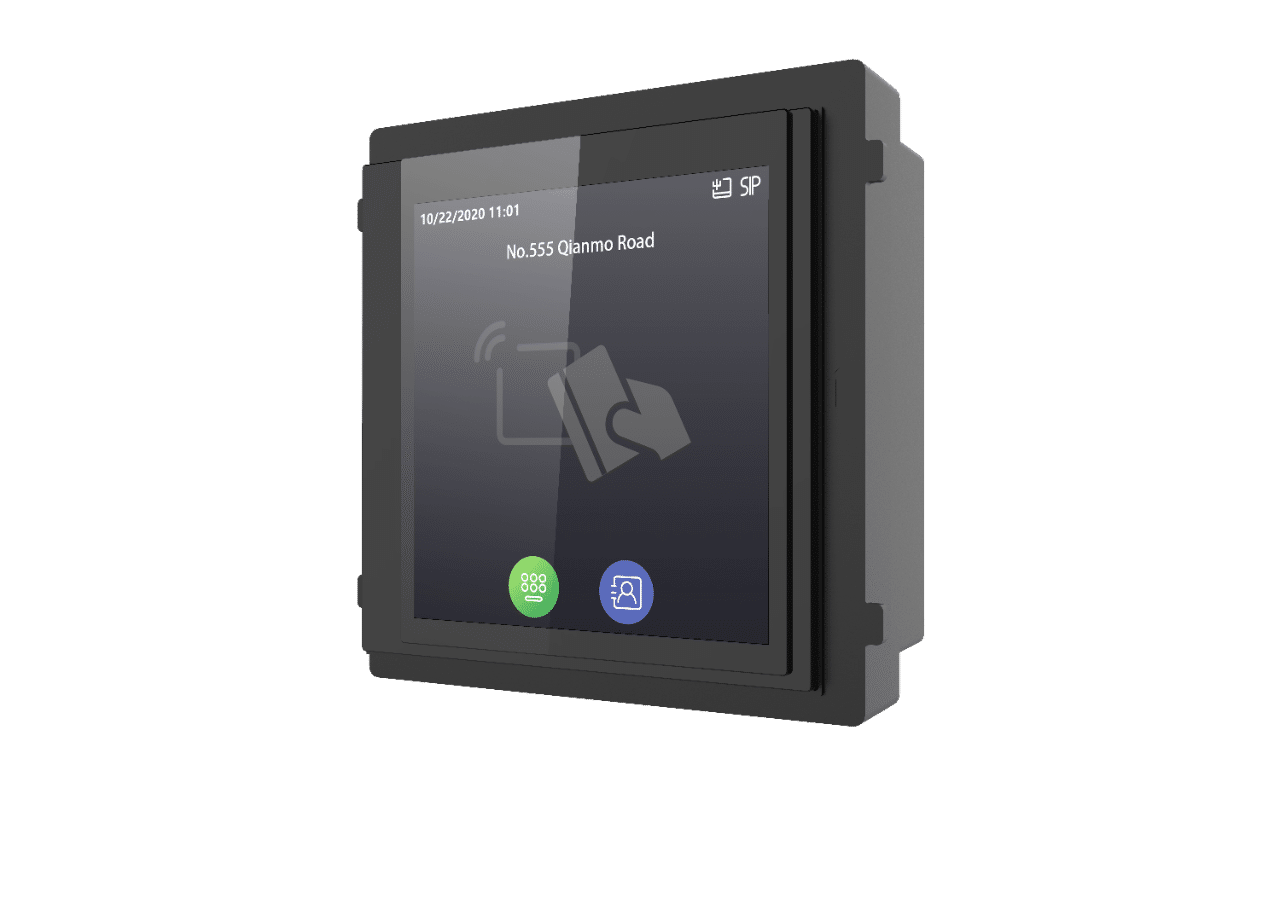

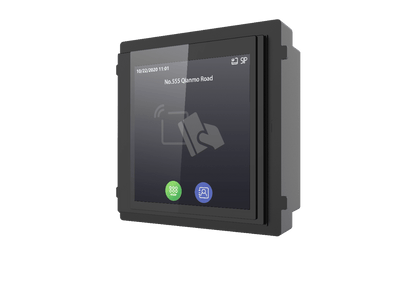

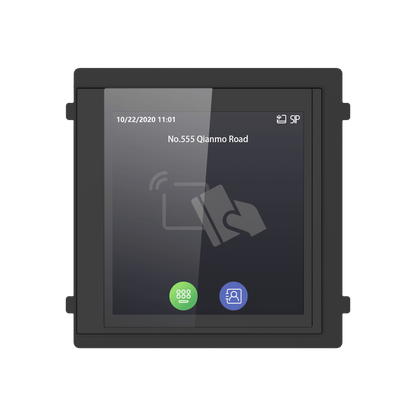

Hikvision Video Intercom Modular Station Sub Module - 4"" Touch Screen
Hikvision Video Intercom 4"" Touch Screen Features
Touch Display Module with Mifare Card Reader
- The Modular door station Touch&Display module needs a mounting bracket
- 4-inch touch screen, IP65, IK8
- Dial number display, pin code & card unlock, contact list & advertisement display
- Stores and searches contact list
- Multiple languages
Hikvision Video Intercom 4"" Touch Screen Specifications
- System Parameters
- Operating System: Linux
- ROM: 32 MB
- RAM: 128 MB
- Display Parameters
- Screen Size: 4-inch
- Type: IPS touchscreen
- Resolution: 480 x 480
- Brightness: 500 cd/m2
- Audio Parameters
- Audio Output: Buzzer
- Network Parameters
- Wireless Network: Only AP mode
- Authentication
- Card Reading Frequency: 13.56 MHz
- Card Reading Distance: 2 cm
- Card Type: Mifare card
- Device Interfaces
- TF Card: Reserved
- DIP Switch: 8 bits
- Cascade Interface: 2
- General
- Installation: Surface, flush
- Protective Level: IP65, IK8
- Working Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity: 10% to 95% (no-condensing)
- Dimensions: 100 mm × 100 mm × 35 mm (3.94"" × 3.94"" × 1.38"")
- Power Supply: 12 VDC, supplied by the main module
- Power Consumption: ? 4 W
- Language: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
Technical Specifications
Hikvision Video Intercom Modular Station Sub Module - 4"" Touch Screen
Hikvision Video Intercom 4"" Touch Screen Features
Touch Display Module with Mifare Card Reader
- The Modular door station Touch&Display module needs a mounting bracket
- 4-inch touch screen, IP65, IK8
- Dial number display, pin code & card unlock, contact list & advertisement display
- Stores and searches contact list
- Multiple languages
Hikvision Video Intercom 4"" Touch Screen Specifications
- System Parameters
- Operating System: Linux
- ROM: 32 MB
- RAM: 128 MB
- Display Parameters
- Screen Size: 4-inch
- Type: IPS touchscreen
- Resolution: 480 x 480
- Brightness: 500 cd/m2
- Audio Parameters
- Audio Output: Buzzer
- Network Parameters
- Wireless Network: Only AP mode
- Authentication
- Card Reading Frequency: 13.56 MHz
- Card Reading Distance: 2 cm
- Card Type: Mifare card
- Device Interfaces
- TF Card: Reserved
- DIP Switch: 8 bits
- Cascade Interface: 2
- General
- Installation: Surface, flush
- Protective Level: IP65, IK8
- Working Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity: 10% to 95% (no-condensing)
- Dimensions: 100 mm × 100 mm × 35 mm (3.94"" × 3.94"" × 1.38"")
- Power Supply: 12 VDC, supplied by the main module
- Power Consumption: ? 4 W
- Language: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
