About the product

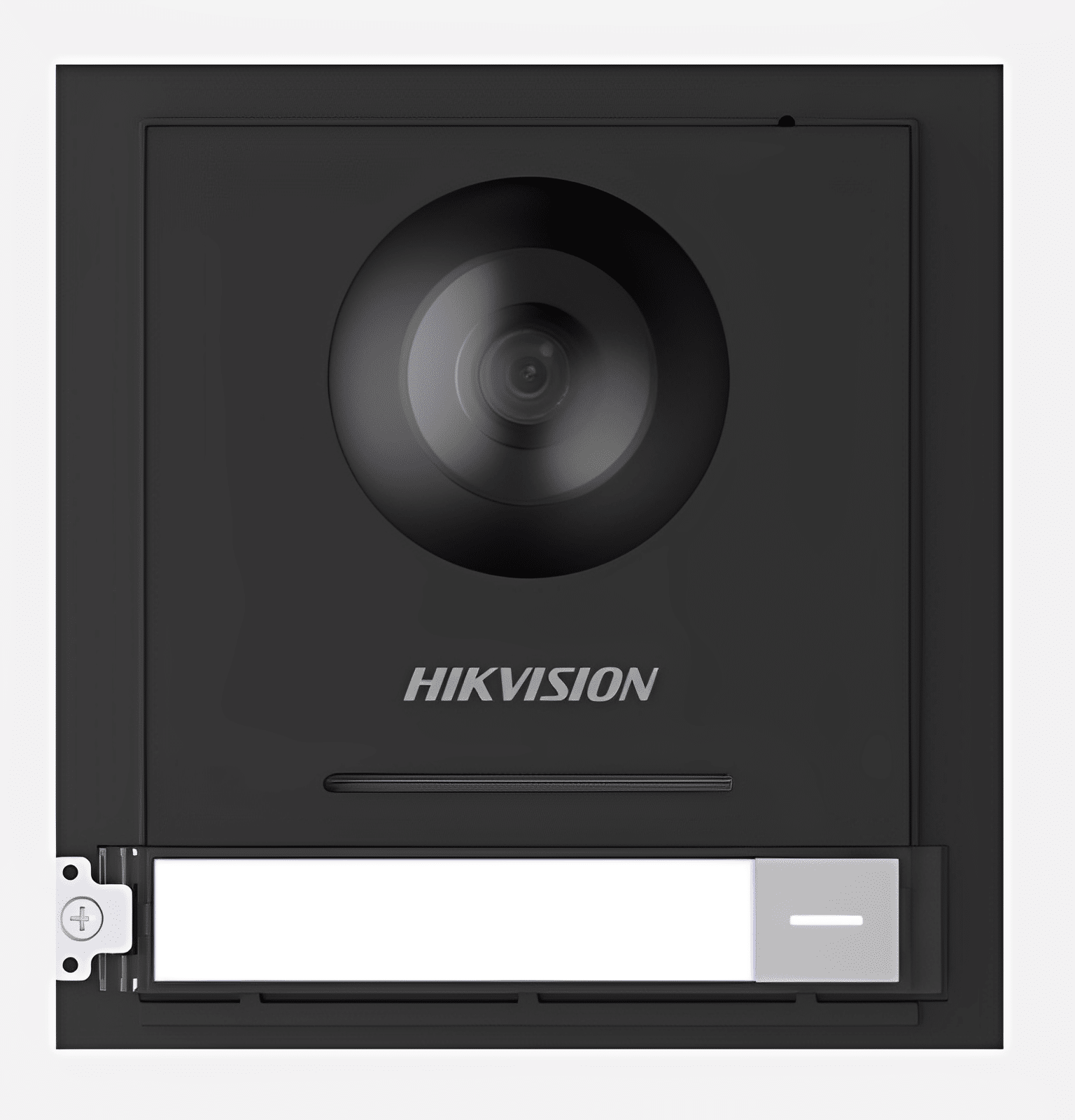

Hikvision Video Intercom Modular Station Main Module, No Bracket
Hikvision Video Intercom No Bracket Features
- The Modular door station Main unit, needs a mounting bracket
- 2MP HD Colorful Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- IP65, 12 VDC, or standard PoE
- Video intercom to indoor station and master station
Hikvision Video Intercom No Bracket Specifications
- System Parameters
- Processor: Embedded MCU Processor
- Operation System: Embedded Linux Operation System
- Video Parameters
- Supplement Light: IR Supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise Suppression and Echo Cancellation
- Network Parameters
- Ethernet: 10/100 Mbps Self-Adaptive Ethernet
- Network Protocol: TCP/IP, RTSP
- Device Interfaces
- Alarm Input: Tampering Alarm
- I/O Input: 4
- I/O Output: 2
- General
- Power Supply: 12 VDC/PoE ( IEEE 802.3af)
- Power Consumption: 4 W
- Working Temperature: -40° C to +55° C (-40° F to 131° F)
- Working Humidity: 10% to 95%
- Protective Level: IP65
- Dimensions(L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86"" × 3.93"" × 1.73"")
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
Technical Specifications
Hikvision Video Intercom Modular Station Main Module, No Bracket
Hikvision Video Intercom No Bracket Features
- The Modular door station Main unit, needs a mounting bracket
- 2MP HD Colorful Camera, Fish eye, IR Supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- IP65, 12 VDC, or standard PoE
- Video intercom to indoor station and master station
Hikvision Video Intercom No Bracket Specifications
- System Parameters
- Processor: Embedded MCU Processor
- Operation System: Embedded Linux Operation System
- Video Parameters
- Supplement Light: IR Supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Input: Built-in Omnidirectional Microphone
- Audio Output: Built-in Loudspeaker(More than 85 dB within 20 cm )
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise Suppression and Echo Cancellation
- Network Parameters
- Ethernet: 10/100 Mbps Self-Adaptive Ethernet
- Network Protocol: TCP/IP, RTSP
- Device Interfaces
- Alarm Input: Tampering Alarm
- I/O Input: 4
- I/O Output: 2
- General
- Power Supply: 12 VDC/PoE ( IEEE 802.3af)
- Power Consumption: 4 W
- Working Temperature: -40° C to +55° C (-40° F to 131° F)
- Working Humidity: 10% to 95%
- Protective Level: IP65
- Dimensions(L × W × H): 98 mm × 99.8 mm × 43.9 mm (3.86"" × 3.93"" × 1.73"")
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
