About the product

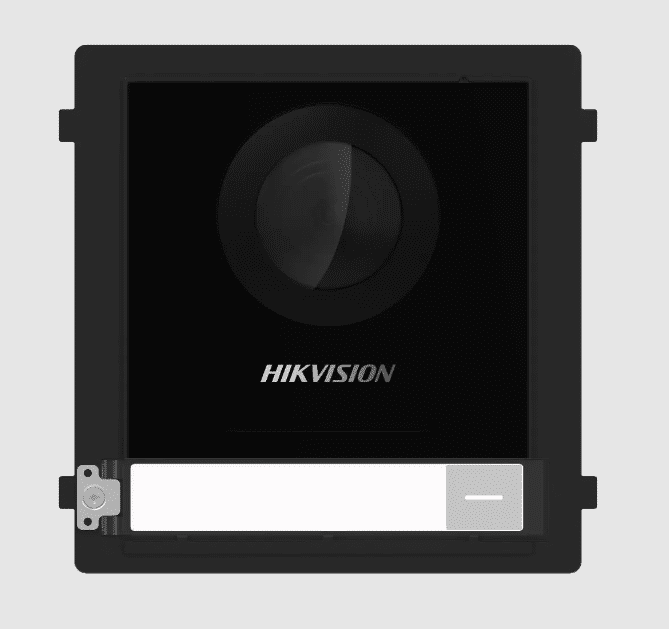

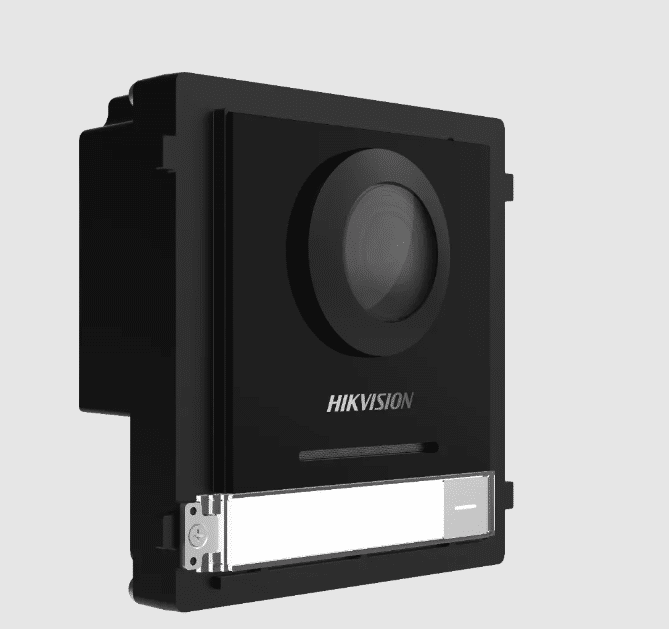

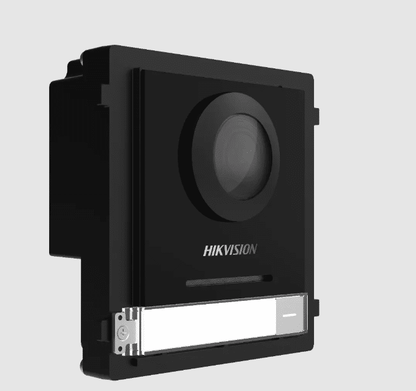

This is Hikvision DS-KD8003-IME1(B) Stainless steel video intercom door station PoE version.
Hikvision KD8 Series Modular Door Station Features:
- The modular door station main unit needs a mounting bracket
- 2MP HD Camera, fish eye, IR supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to the indoor station and master station
- WEB Configuration
- IP65, 12 VDC, or standard PoE
- Power output for electronic lock, max to 12 V, 500 mA
Hikvision KD8 Series Modular Door Station Specifications:
System parameters:
- Operating system: Embedded Linux operating system
- ROM: 32MB
- RAM: 256MB
- CPU: Embedded processor
Video parameters
- Auxiliary light: IR auxiliary light
- Video standard: H.264
- Lens: 1
- Viewing angles : Horizontal: 146°, Vertical: 82°
- WDR: Supported
- Resolution: 2MP
Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio compression standard: G.711U, G.711A
- Audio compression rate: 64 Kbps
- Audio output: Built-in speaker
- Audio quality: noise reduction and echo cancellation
- Volume Control: Adjustable
Capacity
- User capacity: 2000
- Card capacity: 6000
- Connected indoor station capacity: 500
- Secondary door station capacity: 16
Network interfaces
- Alarm input: 4 (2 exit buttons and 2 door contacts by default)
- Network interface: 1 RJ45
- Exit button: 2 (2 for lock control)
- Door contact input: 1
- RS-485: 1 (1 for Hikvision submodule communication)
- Lock control: 2 (2 relays, max. 30 V, 2 A)
General
- Power Supply: 12VDC /PoE (IEEE 802.3af)
- Working temperature: -40°C to 60°C
- Protection class: IP65
- Installation: surface mounting and flush mounting
- Dimensions: 98mm × 100mm × 42mm
- Weight: 0.410kg
- Application environment: outdoor
- Power Consumption: ?5W
Technical Specifications
This is Hikvision DS-KD8003-IME1(B) Stainless steel video intercom door station PoE version.
Hikvision KD8 Series Modular Door Station Features:
- The modular door station main unit needs a mounting bracket
- 2MP HD Camera, fish eye, IR supplement
- 1 Call physical Button, 2 lock relays, 4-ch alarm input
- Video intercom to the indoor station and master station
- WEB Configuration
- IP65, 12 VDC, or standard PoE
- Power output for electronic lock, max to 12 V, 500 mA
Hikvision KD8 Series Modular Door Station Specifications:
System parameters:
- Operating system: Embedded Linux operating system
- ROM: 32MB
- RAM: 256MB
- CPU: Embedded processor
Video parameters
- Auxiliary light: IR auxiliary light
- Video standard: H.264
- Lens: 1
- Viewing angles : Horizontal: 146°, Vertical: 82°
- WDR: Supported
- Resolution: 2MP
Audio parameters
- Audio input: Built-in omnidirectional microphone
- Audio compression standard: G.711U, G.711A
- Audio compression rate: 64 Kbps
- Audio output: Built-in speaker
- Audio quality: noise reduction and echo cancellation
- Volume Control: Adjustable
Capacity
- User capacity: 2000
- Card capacity: 6000
- Connected indoor station capacity: 500
- Secondary door station capacity: 16
Network interfaces
- Alarm input: 4 (2 exit buttons and 2 door contacts by default)
- Network interface: 1 RJ45
- Exit button: 2 (2 for lock control)
- Door contact input: 1
- RS-485: 1 (1 for Hikvision submodule communication)
- Lock control: 2 (2 relays, max. 30 V, 2 A)
General
- Power Supply: 12VDC /PoE (IEEE 802.3af)
- Working temperature: -40°C to 60°C
- Protection class: IP65
- Installation: surface mounting and flush mounting
- Dimensions: 98mm × 100mm × 42mm
- Weight: 0.410kg
- Application environment: outdoor
- Power Consumption: ?5W
