About the product

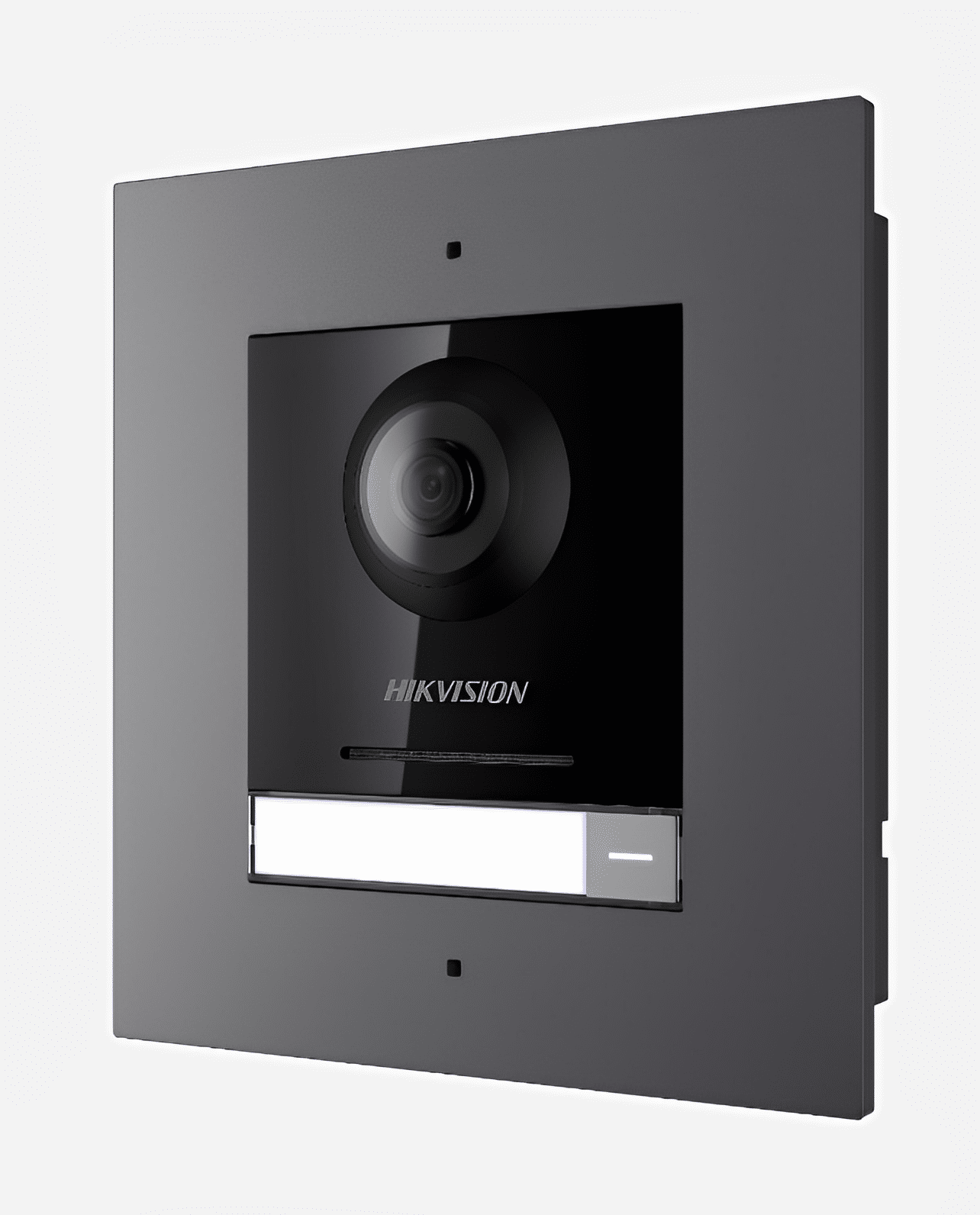

Hikvision Video Intercom Modular Station Main Module with Flush Bracket
Hikvision Video Intercom Flush Bracket Features
KD8 Series Pro Modular Door Station
- The Modular door station for the villa
- DS-KD8003 with its flush mounting accessories
- IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
- 2 MP HD video intercom function
- Supports sub-modules access
- Easy to extend
Hikvision Video Intercom Flush Bracket Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 16MB
- RAM: 256MB
- CPU: Embedded MCU Processor
- Video Parameters
- Lens: 1
- Resolution:
- Main stream: 1920 × 1080
- Substream: 720 × 480
- FOV:
- Horizontal: 180°
- Vertical: 96°
- WDR: Support
- Supplement Light: IR supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: A built-in loudspeaker (More than 85 dB within 20 cm)
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Linked Network Camera Capacity: 100
- Network Parameters
- Communication Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Device Interfaces
- Alarm Input: 4
- Network Interface: 1
- TAMPER: 1
- Exit Button: 2
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF Card: 0
- Alarm Output: 0
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
- Performances
- Multi-Factor Authentication: 2000
- General
- Button: 1
- Installation: Flush mounting
- Indicator: 0
- Without package: 345 g
- With package: 840 g
- Protective Level: IP65
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions:
- Door station:98 mm × 99.8 mm × 43.9 mm (3.86"" ×3.93\"" × 1.73\"")
- Cover:134 × 124 × 4 mm(5.28 × 4.88\"" ×0.16\"")
- Gang box:134 × 135 × 56 mm(5.28 × 5.31\"" ×2.20\"")
- Application Environment: Outdoor
- Power Consumption: ? 10 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
Technical Specifications
Hikvision Video Intercom Modular Station Main Module with Flush Bracket
Hikvision Video Intercom Flush Bracket Features
KD8 Series Pro Modular Door Station
- The Modular door station for the villa
- DS-KD8003 with its flush mounting accessories
- IP65 (DS-KD8003+DS-KD-ACF1/Plastic)
- 2 MP HD video intercom function
- Supports sub-modules access
- Easy to extend
Hikvision Video Intercom Flush Bracket Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 16MB
- RAM: 256MB
- CPU: Embedded MCU Processor
- Video Parameters
- Lens: 1
- Resolution:
- Main stream: 1920 × 1080
- Substream: 720 × 480
- FOV:
- Horizontal: 180°
- Vertical: 96°
- WDR: Support
- Supplement Light: IR supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: A built-in loudspeaker (More than 85 dB within 20 cm)
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Linked Network Camera Capacity: 100
- Network Parameters
- Communication Protocol: TCP/IP, RSTP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Device Interfaces
- Alarm Input: 4
- Network Interface: 1
- TAMPER: 1
- Exit Button: 2
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF Card: 0
- Alarm Output: 0
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
- Performances
- Multi-Factor Authentication: 2000
- General
- Button: 1
- Installation: Flush mounting
- Indicator: 0
- Without package: 345 g
- With package: 840 g
- Protective Level: IP65
- Working Temperature: -40° C to +55° C(-40° F to 131° F)
- Working Humidity: 10% to 95%
- Dimensions:
- Door station:98 mm × 99.8 mm × 43.9 mm (3.86"" ×3.93\"" × 1.73\"")
- Cover:134 × 124 × 4 mm(5.28 × 4.88\"" ×0.16\"")
- Gang box:134 × 135 × 56 mm(5.28 × 5.31\"" ×2.20\"")
- Application Environment: Outdoor
- Power Consumption: ? 10 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak
