About the product

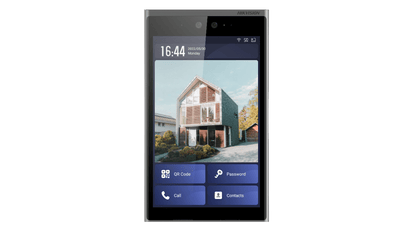

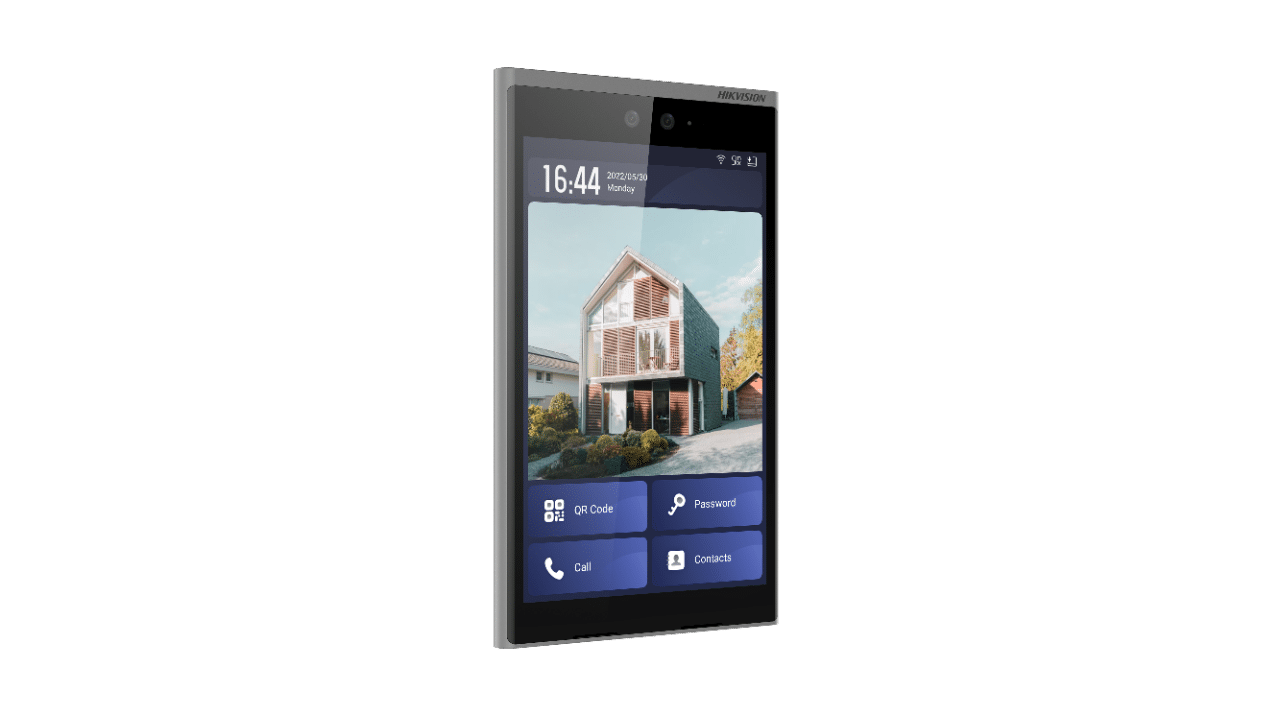

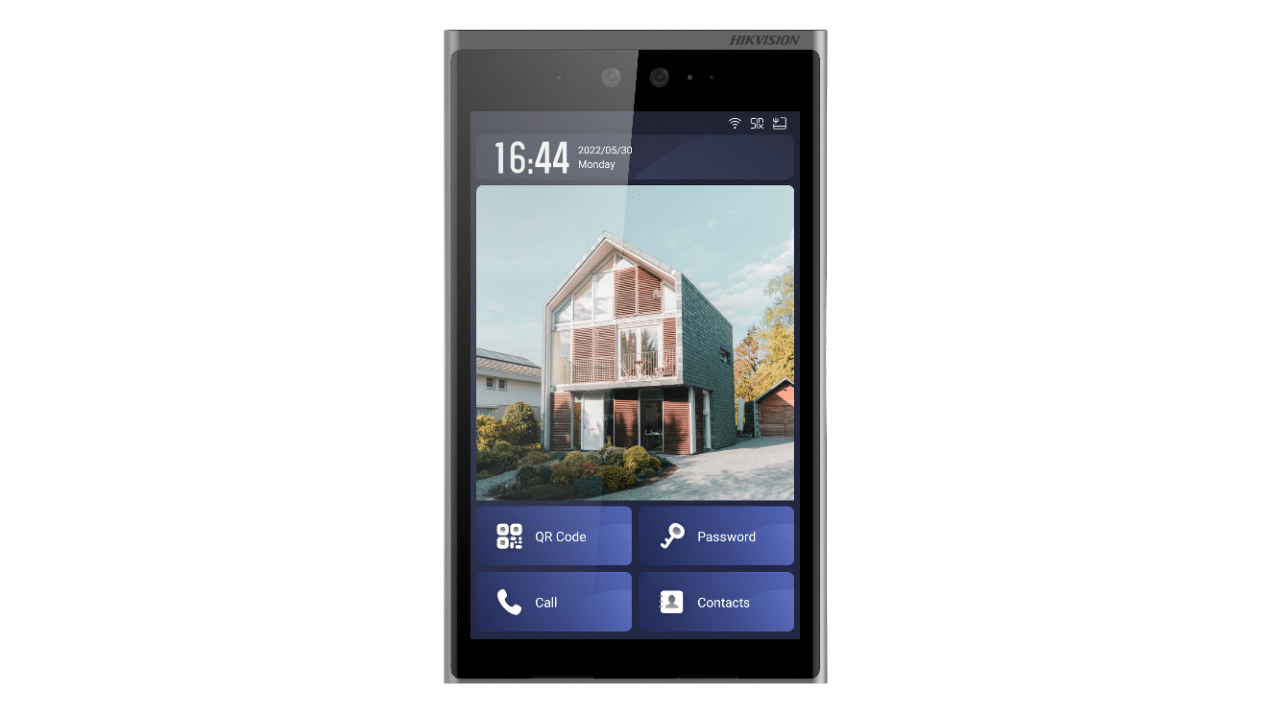

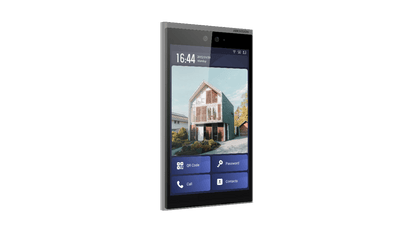

Hikvision IP Video Intercom 10.1"" Touchscreen Outdoor Station, Face Recognition
Hikvision IP Video Intercom w/Face Recognition Features
Facial Door Station
- Aluminum frame with anodizing processing and ultra-thin fuselage
- 2.5D curved 10.1-inch IPS touchscreen
- Higher protection level? IP65 & IK07
- Multiple authentication ways
- Optional submodule
Hikvision IP Video Intercom w/Face Recognition Specifications
- System Parameters
- Operating System: Android 7.1
- ROM: 4 GB
- RAM: 2 GB
- CPU: Embedded Processor
- Display Parameters
- Screen Size: 10.1-inch
- Operation Method: Touch screen
- Type: Colorful IPS
- Resolution: 1280 × 800
- Brightness: 410 cd/m²
- Video Parameters
- Supplement Light: Low illumination, IR supplement lights
- Video Standard: H.264
- Lens: Low illumination 2 x 2 MP HD colorful camera
- FOV: Horizontal: 88°, Vertical: 44°
- WDR: Support
- Resolution: 2 MP
- Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- User Capacity: 20000
- Card Capacity: 100000
- Face Capacity: 10000
- Linked Indoor Station Capacity: 500
- Sub Door Station Capacity: 16
- Network Parameters
- Communication Protocol: TCP/IP, RTSP
- Wired Network: 10/100/1000 Mbps self-adaptive Ethernet
- Wi-Fi: Reserved
- Bluetooth: Reserved
- Authentication
- Card Reading Frequency: 13.56 MHz
- Device Interfaces
- Alarm Input: 4 (2 exit buttons and 2 door contacts by default)
- Network Interface: 2 RJ45 (1 reserved)
- TAMPER: 1
- Exit Button: 2 (1 for lock control and 1 for DS-K2M060 relay control)
- RS-485: 2 (1 for Hikvision's card reader or elevator controller and 1 for DS-K2M060 by default)
- USB: 2 for internal use only
- TF Card: 1 (reserved)
- Alarm Output: 2 (reserved)
- Lock Control: 2 (1 relay and 1 RS-485 to control the DS-K2M060)
- Door Contact Input: 1
- Power Interface: 1
- General
- Installation: Surface mounting & flush mounting
- Indicator: 0; 1.265 kg
- Protective Level: IP65, IK07
- Working Temperature: -30° C to 60° C (-22° F to 140° F)
- Working Humidity: 10% to 90%
- Dimensions: 271 mm × 159.2 mm × 26.5 mm (10.7'' × 6.3'' ×1'')
- Power Supply: 12 VDC, 2 A
- Application Environment: Outdoor
- Power Consumption: ? 18 W
- Language: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonia, Latvian, Norwegian, Danish, Slovakia, Hebrew, Swedish, Finnish, TraChinese, Mongolian, HongKongTraChinese
