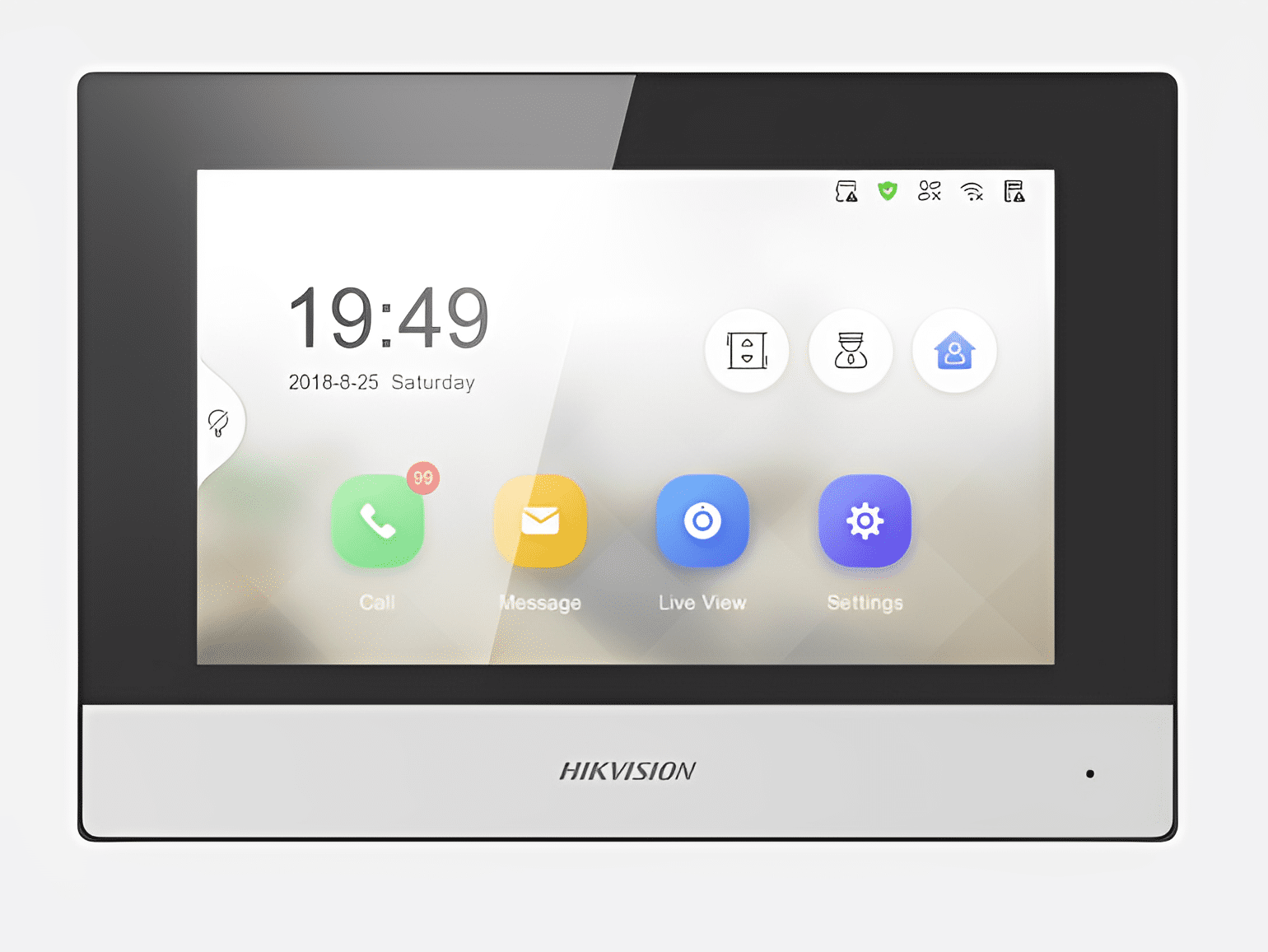

Hikvision 7"" TFT Touchscreen IP Video Intercom Indoor Station
Hikvision 7"" TFT Touchscreen IP Video Intercom Features
KH6 Series IP-Based Indoor Station
- New UI V2.0: User-friendly design
- 7-inch color touch screen with a resolution of 1024 × 600
- Standard PoE
- Stores messages and capture pictures in the TF card
- Remote unlocking via the client software or the mobile client
- Views live videos of door stations and linked cameras
Hikvision 7"" TFT Touchscreen IP Video Intercom Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
- Display Parameters
- Screen Size: 7-inch colorful TFT screen
- Operation Method: Capacitive touchscreen
- Type: Colorful TFT screen
- Resolution: 1024 × 600
- Video Parameters
- Video Compression Standard: DS-KH6320-WTE1
- Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Event Capacity: 200
- Notice Capacity: 16
- Linked Indoor Extensions Capacity: 5
- Linked Doorphone Capacity: 8
- Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: 10/100 Mbps self-adaptive
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Device Interfaces
- Alarm Input: 8-ch alarm inputs
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: 1
- TF Card: Max to 32 G, SD 2.0 or lower version
- Alarm Output: 2
- Power Interface: 1
- General
- Button: 0
- Installation: Surface mounting
- Indicator: 0
- With package: 683 g
- Without package: 355 g
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimensions: 200 mm × 140 mm × 15.1 mm (7.9"" × 5.5"" × 0.6"")
- Application Environment: Indoor
- Power Consumption: ? 6 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak
