About the product

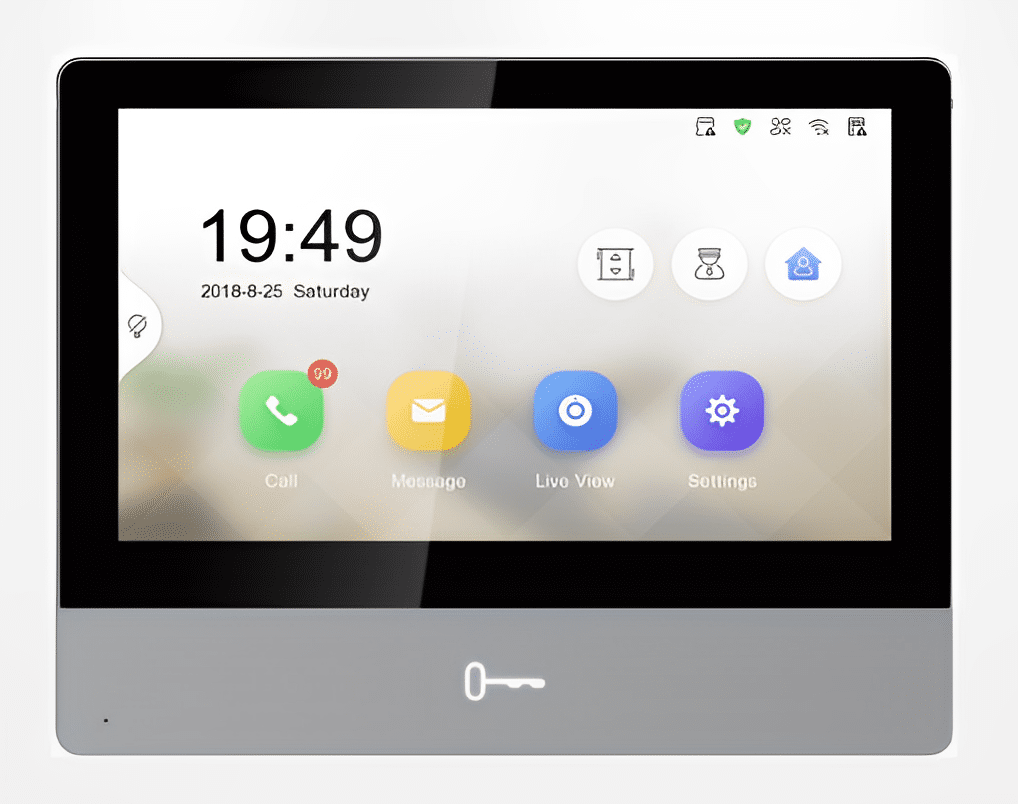

Hikvision Video Intercom Indoor Station, 7"" IPS Touch Screen, Phys Unlock Button
Hikvision Video Intercom 7"" IPS Touch Screen Features
KH8 Series Indoor Station
- IP indoor station
- Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
- Wi-Fi (for W version), standard PoE/ 12 VDC
- TF card, max 32G, for capture while video calling
- 8-ch alarm input, 2 alarm output, 1x485
- Remote unlocking via the client or the APP
- Views live videos of door stations and external cameras
Hikvision Video Intercom 7"" IPS Touch Screen Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
- Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen, physical button
- Type: Colorful IPS LCD
- Resolution: 1024 × 600
- Video Parameters
- Lens: Not supported.
- WDR: Not supported.
- Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Event Capacity: 200
- Notice Capacity: 16
- Linked Indoor Extensions Capacity: 5
- Linked Doorphone Capacity: 8
- Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: 10/100 Mbps self-adaptive
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- 3G/4G Standard: Not supported
- Device Interfaces
- Alarm Input: 8-ch alarm inputs
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: Support
- USB: 0
- TF Card: Max to 32 G, SD 2.0 or lower version
- Alarm Output: 2
- Power Interface: 1
- General
- Power Supply:
- IEEE802.3af, standard PoE
- 12 VDC/1 A
- Power Consumption: ? 7 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Button: 1
- Installation: Surface mounting
- Indicator: 0
- With package: 899 g
- Without package: 355 g
- Dimensions: 180 mm × 140 mm × 22.4 mm (7.09"" × 5.51"" × 0.88"")
- Application Environment: Indoor
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
- Power Supply:
Technical Specifications
Hikvision Video Intercom Indoor Station, 7"" IPS Touch Screen, Phys Unlock Button
Hikvision Video Intercom 7"" IPS Touch Screen Features
KH8 Series Indoor Station
- IP indoor station
- Reddot award 2017 winner, 7“ Touch-Screen Indoor Station
- Wi-Fi (for W version), standard PoE/ 12 VDC
- TF card, max 32G, for capture while video calling
- 8-ch alarm input, 2 alarm output, 1x485
- Remote unlocking via the client or the APP
- Views live videos of door stations and external cameras
Hikvision Video Intercom 7"" IPS Touch Screen Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 MB
- RAM: 128 MB
- CPU: Embedded processor
- Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen, physical button
- Type: Colorful IPS LCD
- Resolution: 1024 × 600
- Video Parameters
- Lens: Not supported.
- WDR: Not supported.
- Audio Parameters
- Audio Compression Standard: G.711 U
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Event Capacity: 200
- Notice Capacity: 16
- Linked Indoor Extensions Capacity: 5
- Linked Doorphone Capacity: 8
- Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: 10/100 Mbps self-adaptive
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- 3G/4G Standard: Not supported
- Device Interfaces
- Alarm Input: 8-ch alarm inputs
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: Support
- USB: 0
- TF Card: Max to 32 G, SD 2.0 or lower version
- Alarm Output: 2
- Power Interface: 1
- General
- Power Supply:
- IEEE802.3af, standard PoE
- 12 VDC/1 A
- Power Consumption: ? 7 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Button: 1
- Installation: Surface mounting
- Indicator: 0
- With package: 899 g
- Without package: 355 g
- Dimensions: 180 mm × 140 mm × 22.4 mm (7.09"" × 5.51"" × 0.88"")
- Application Environment: Indoor
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek
- Power Supply:
