About the product

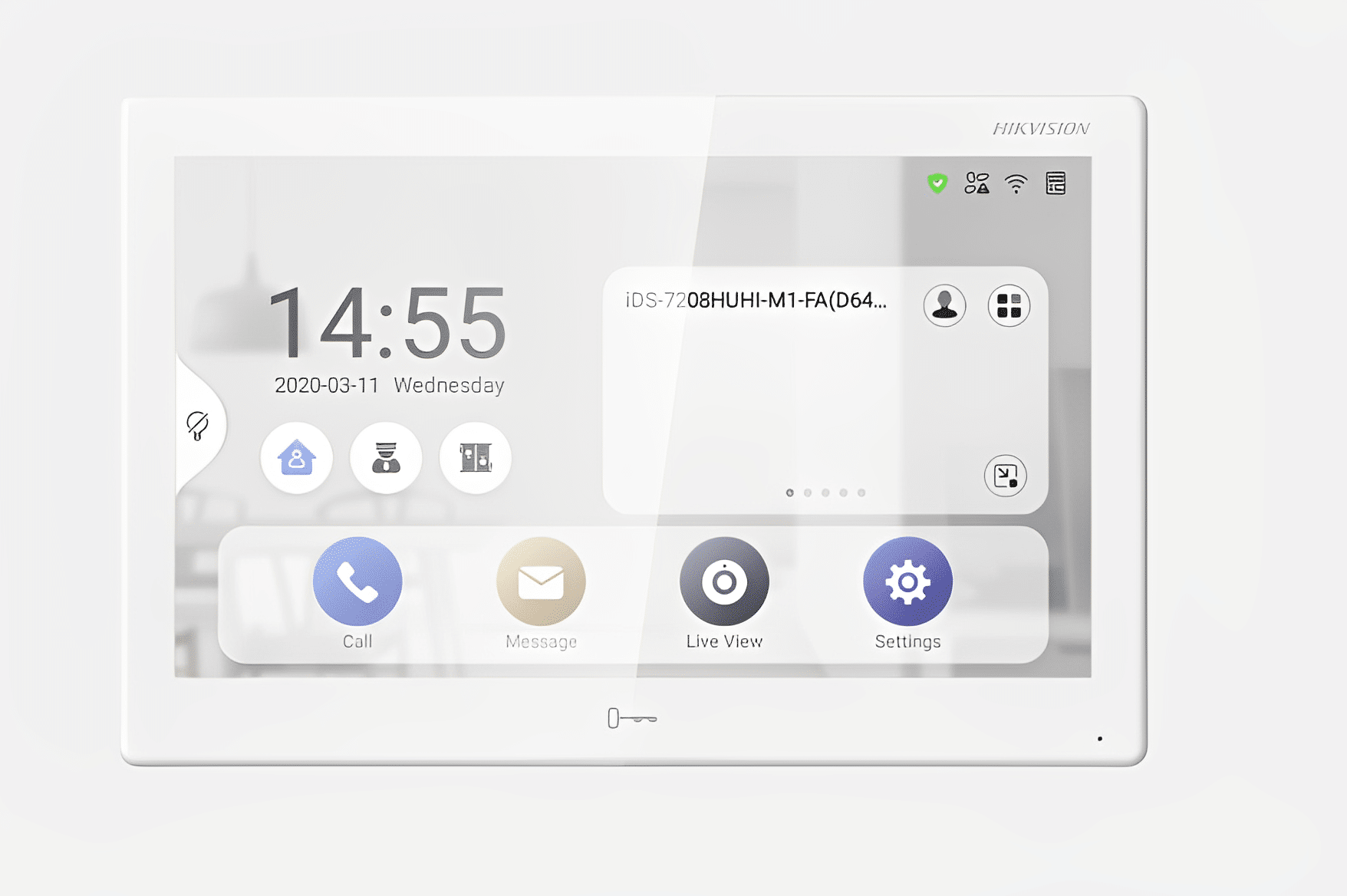

Hikvision IP Video Intercom Indoor Station Android with 10.1 inch Touch Screen
Note: New Model Now Available DS-KH9510-WTE1(B)
Hikvision IP Video Intercom w/10.1 inch Touch Screen Features
- All-in-one Indoor Station
- 10.1-inch colorful touch screen with a resolution of 1024 × 600
- Supports Android app installation
- An open platform for the third-party software integration
- Video intercom & live view on mobile phone all-day
- Built-in Hik-Connect for all-in-one management
- Wireless intrusion panel for on-site management
- Receives 7 seconds of video verification from alarm systems
Hikvision IP Video Intercom w/10.1 inch Touch Screen Specifications
- System Parameters
- Operating System: Embedded Android operation system
- ROM: 8 GB
- RAM: 1 GB
- CPU: Embedded processor
- Display Parameters
- Screen Size: 10.1-inch
- Operation Method: Capacitive touchscreen
- Type: Colorful IPS
- Resolution: 1024 × 600
- Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Event Capacity: 200
- Notice Capacity: 200
- Linked Network Camera Capacity: 16
- Linked Doorphone Capacity: 17
- Linked Indoor Station Capacity: 5
- Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: Support
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: 1
- USB: For debug only
- TF Card: Reserved
- Alarm Output: 2
- Power Interface: 1
- General
- Installation: Surface mounting
- Indicator:
- Without package: 875 g
- With package: 1060 g
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90%
- Dimensions: 254 mm × 166 mm × 26.65 mm (10.0"" × 6.54"" × 1.05"")
- Power Supply:
- IEEE802.3af, standard PoE
- 12 VDC, 1 A
- Application Environment: Indoor
- Power Consumption: ? 12 W
- Language: English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
Technical Specifications
Hikvision IP Video Intercom Indoor Station Android with 10.1 inch Touch Screen
Note: New Model Now Available DS-KH9510-WTE1(B)
Hikvision IP Video Intercom w/10.1 inch Touch Screen Features
- All-in-one Indoor Station
- 10.1-inch colorful touch screen with a resolution of 1024 × 600
- Supports Android app installation
- An open platform for the third-party software integration
- Video intercom & live view on mobile phone all-day
- Built-in Hik-Connect for all-in-one management
- Wireless intrusion panel for on-site management
- Receives 7 seconds of video verification from alarm systems
Hikvision IP Video Intercom w/10.1 inch Touch Screen Specifications
- System Parameters
- Operating System: Embedded Android operation system
- ROM: 8 GB
- RAM: 1 GB
- CPU: Embedded processor
- Display Parameters
- Screen Size: 10.1-inch
- Operation Method: Capacitive touchscreen
- Type: Colorful IPS
- Resolution: 1024 × 600
- Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: Built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- Event Capacity: 200
- Notice Capacity: 200
- Linked Network Camera Capacity: 16
- Linked Doorphone Capacity: 17
- Linked Indoor Station Capacity: 5
- Network Parameters
- Communication Protocol: TCP/IP, SIP, RTSP
- Wired Network: Support
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- RS-485: 1
- USB: For debug only
- TF Card: Reserved
- Alarm Output: 2
- Power Interface: 1
- General
- Installation: Surface mounting
- Indicator:
- Without package: 875 g
- With package: 1060 g
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90%
- Dimensions: 254 mm × 166 mm × 26.65 mm (10.0"" × 6.54"" × 1.05"")
- Power Supply:
- IEEE802.3af, standard PoE
- 12 VDC, 1 A
- Application Environment: Indoor
- Power Consumption: ? 12 W
- Language: English, Russian, Estonian, Bulgaria, Hungarian, Greek, German, Italian, Czech, Slovak, France, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Traditional Chinese, Vietnamese, Hebrew, Latvian, Lithuanian, Brazilian Portuguese, Arabic, Ukrainian, Mongolian
