About the product

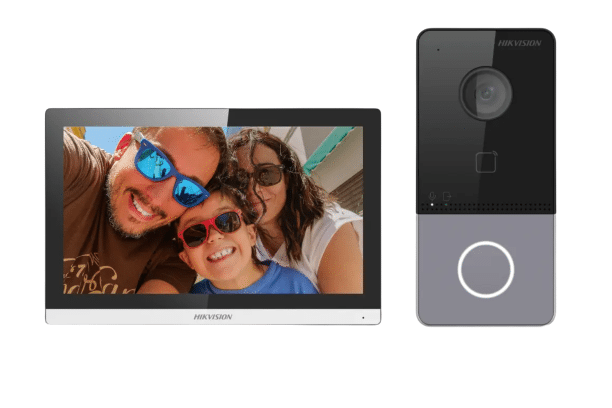

The DS-KIS613-P Video Intercom Network Kit, offered by Aartech Canada, is a state-of-the-art solution designed to provide seamless video intercom communication and enhanced security. With its sleek design and advanced features, this kit allows you to effortlessly communicate with visitors via clear video and audio. The network connectivity enables remote access and control through a smartphone or tablet, ensuring you never miss a visitor, even when you're away. Upgrade your access control system with the DS-KIS613-P Video Intercom Network Kit and enjoy the convenience and peace of mind it brings to your home or office.
Hikvision DS-KIS613-P IP Video Indoor Station/Door Station Intercom Kit, 2MP Features:
- Indoor station: 7-inch touch screen, user-friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: Hight quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wifi & POE Supported
- Door station: Easy configuration through the WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Hikvision DS-KIS613-P IP Video Indoor Station/Door Station Intercom Kit, 2MP Specifications:
- Door station
- Operation system: Embedded Linux operation system
- Flash 32 MB
- RAM 256MB
- Camera: 2MP HD camera
- Night vision: Low illumination IR supplement mode:3 m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view Horizontal: 131° Vertical: 78°
- Video Compression Standard: H.264
- Stream
- Main stream: 1080p, 720p
- Substream: 640 × 480
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio intercom: Two-way audio communication
- Network protocol: TCP/IP, RSTP
- Wired network: 10/100 Mbps Ethernet
- RS-485 1
- Alarm input 4
- Debugging port 1
- Grounding 1
- TAMPER switch 1
- Power consumption: ? 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 138 mm x 65 mm x 27 mm
- Installation Surface mounting
- Protection level IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE 12 VDC
- Indoor station
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
- Display screen 7-inch colorful TFT screen
- Display resolution: 1024 x 600
- Operation method: Capacitive touchscreen
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audiocompression standard: G.711 U, G,711 A
- Audio compression Rate: 64 Kbps
- Wired network: 10/100 Mbps self-adaptive
- Wireless network Wi-Fi: 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP RS-485 1 RJ-45 10/100 Mbps self-adaptive
- RS-485 1
- Alarm input: 8-ch alarm inputs
- Alarm output 2: Micro SD card Max to 128 G
- Power consumption: ? 8 W
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90%
- Dimension (L xW x H): 175 mm x 113.5 mm x 21 mm (6.9"" x 4.5"" x 0.83"")
Technical Specifications
The DS-KIS613-P Video Intercom Network Kit, offered by Aartech Canada, is a state-of-the-art solution designed to provide seamless video intercom communication and enhanced security. With its sleek design and advanced features, this kit allows you to effortlessly communicate with visitors via clear video and audio. The network connectivity enables remote access and control through a smartphone or tablet, ensuring you never miss a visitor, even when you're away. Upgrade your access control system with the DS-KIS613-P Video Intercom Network Kit and enjoy the convenience and peace of mind it brings to your home or office.
Hikvision DS-KIS613-P IP Video Indoor Station/Door Station Intercom Kit, 2MP Features:
- Indoor station: 7-inch touch screen, user-friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: Hight quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wifi & POE Supported
- Door station: Easy configuration through the WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Hikvision DS-KIS613-P IP Video Indoor Station/Door Station Intercom Kit, 2MP Specifications:
- Door station
- Operation system: Embedded Linux operation system
- Flash 32 MB
- RAM 256MB
- Camera: 2MP HD camera
- Night vision: Low illumination IR supplement mode:3 m
- Backlight compensation: Support
- Digital noise reduction: Support
- WDR: True WDR
- Field of view Horizontal: 131° Vertical: 78°
- Video Compression Standard: H.264
- Stream
- Main stream: 1080p, 720p
- Substream: 640 × 480
- Motion detection: Support
- Flash-avoid frequency: 50 Hz, 60 Hz
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audio compression standard: G.711 U
- Audio compression Rate: 64 Kbps
- Audio intercom: Two-way audio communication
- Network protocol: TCP/IP, RSTP
- Wired network: 10/100 Mbps Ethernet
- RS-485 1
- Alarm input 4
- Debugging port 1
- Grounding 1
- TAMPER switch 1
- Power consumption: ? 10 W
- Working temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working humidity: 10% to 95%
- Dimension: 138 mm x 65 mm x 27 mm
- Installation Surface mounting
- Protection level IP65
- Indicator: 2
- Power supply: IEEE802.3af, standard PoE 12 VDC
- Indoor station
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Flash: 32 MB
- Display screen 7-inch colorful TFT screen
- Display resolution: 1024 x 600
- Operation method: Capacitive touchscreen
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio quality: Noise suppression and echo cancellation
- Audiocompression standard: G.711 U, G,711 A
- Audio compression Rate: 64 Kbps
- Wired network: 10/100 Mbps self-adaptive
- Wireless network Wi-Fi: 802.11 b/g/n
- Protocol: TCP/IP, SIP, RTSP RS-485 1 RJ-45 10/100 Mbps self-adaptive
- RS-485 1
- Alarm input: 8-ch alarm inputs
- Alarm output 2: Micro SD card Max to 128 G
- Power consumption: ? 8 W
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working humidity: 10% to 90%
- Dimension (L xW x H): 175 mm x 113.5 mm x 21 mm (6.9"" x 4.5"" x 0.83"")
