About the product

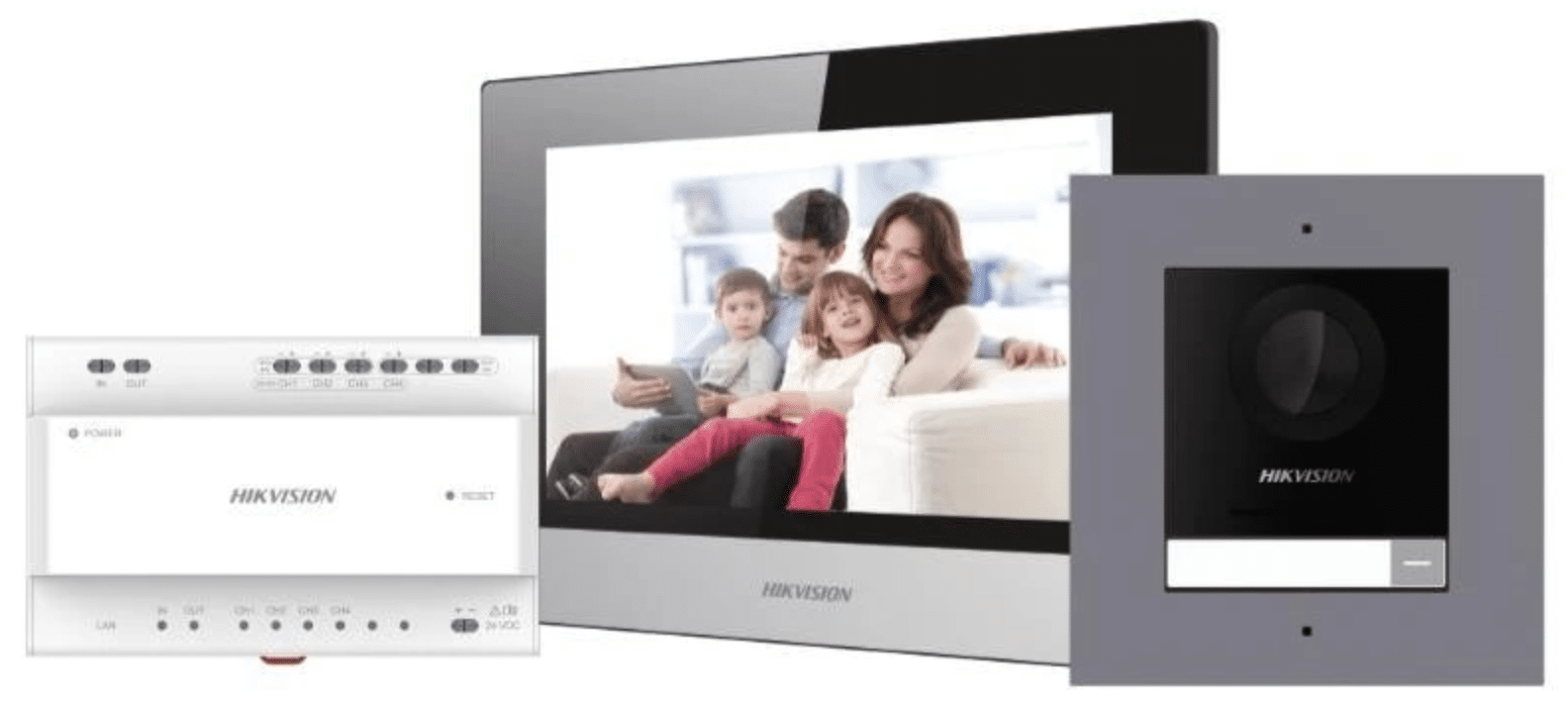

The DS-KIS702Y-P is a Hikvision Two Wire Video Intercom Kit that provides secure and convenient video intercom communication. It includes a door station and a 7-inch indoor monitor, offering a reliable solution for residential and commercial applications.
Hikvision DS-KIS702Y-P Two Wire Video Intercom Kit Features:
- Two-wire system for easy installation and maintenance
- Clear and crisp video quality for effective communication
- 7-inch indoor monitor with touch screen for intuitive operation
- Supports remote unlocking of the door via the indoor monitor
- Night vision functionality for 24/7 surveillance
- Integration with other Hikvision devices for enhanced security
- Stylish and durable design suitable for various environments
- An expandable system allows the connection of additional devices for larger installations.
Hikvision DS-KIS702Y-P Two Wire Video Intercom Kit Specifications:
Door Station:
- Processor: Embedded microcontroller
- Operation system: Embedded Linux operation system
- Display: 2MP super definition camera with a resolution of 1920 × 1080
- Night vision: Support for low light and IR light supplement mode
- Video Compression Standard: H.264
- Audio input: Built-in omnidirectional microphone
- Audio output: Loudspeaker with 20 cm sound effect > 80 db
- Device interface: RS-485, Alarm input, Lock control, Power interface
- Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Protection level: IP 65
- Power input: Powered by KAD704Y or KAD706Y series distributor
Indoor Station:
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Display screen: 7-inch TFT LCD with a resolution of 1024 × 600
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Network parameters: Wired network (two-wire), Wireless network (Wi-Fi 802.11b/g/n)
- Device interface: Network interface, RS-485, Alarm input, Relay output, TF card
- Power supply: Powered by KAD704Y or KAD706Y distributor
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Dimensions: 200 mm × 140 mm × 23.6 mm (7.87"" × 5.51"" × 0.93"")
Video Audio Distributor:
- Network interface: RJ45
- Two-wire interface: 6 (2 for cascading and 4 for devices)
- Power consumption: CH1 to CH3 < 4 W, CH4 < 8 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
Technical Specifications
The DS-KIS702Y-P is a Hikvision Two Wire Video Intercom Kit that provides secure and convenient video intercom communication. It includes a door station and a 7-inch indoor monitor, offering a reliable solution for residential and commercial applications.
Hikvision DS-KIS702Y-P Two Wire Video Intercom Kit Features:
- Two-wire system for easy installation and maintenance
- Clear and crisp video quality for effective communication
- 7-inch indoor monitor with touch screen for intuitive operation
- Supports remote unlocking of the door via the indoor monitor
- Night vision functionality for 24/7 surveillance
- Integration with other Hikvision devices for enhanced security
- Stylish and durable design suitable for various environments
- An expandable system allows the connection of additional devices for larger installations.
Hikvision DS-KIS702Y-P Two Wire Video Intercom Kit Specifications:
Door Station:
- Processor: Embedded microcontroller
- Operation system: Embedded Linux operation system
- Display: 2MP super definition camera with a resolution of 1920 × 1080
- Night vision: Support for low light and IR light supplement mode
- Video Compression Standard: H.264
- Audio input: Built-in omnidirectional microphone
- Audio output: Loudspeaker with 20 cm sound effect > 80 db
- Device interface: RS-485, Alarm input, Lock control, Power interface
- Working temperature: -40 °C to 60 °C (-40 °F to 140 °F)
- Protection level: IP 65
- Power input: Powered by KAD704Y or KAD706Y series distributor
Indoor Station:
- Operation system: Embedded Linux operation system
- Memory: 128 MB
- Display screen: 7-inch TFT LCD with a resolution of 1024 × 600
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Network parameters: Wired network (two-wire), Wireless network (Wi-Fi 802.11b/g/n)
- Device interface: Network interface, RS-485, Alarm input, Relay output, TF card
- Power supply: Powered by KAD704Y or KAD706Y distributor
- Working temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Dimensions: 200 mm × 140 mm × 23.6 mm (7.87"" × 5.51"" × 0.93"")
Video Audio Distributor:
- Network interface: RJ45
- Two-wire interface: 6 (2 for cascading and 4 for devices)
- Power consumption: CH1 to CH3 < 4 W, CH4 < 8 W
- Working temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working humidity: 10% to 90%
