About the product

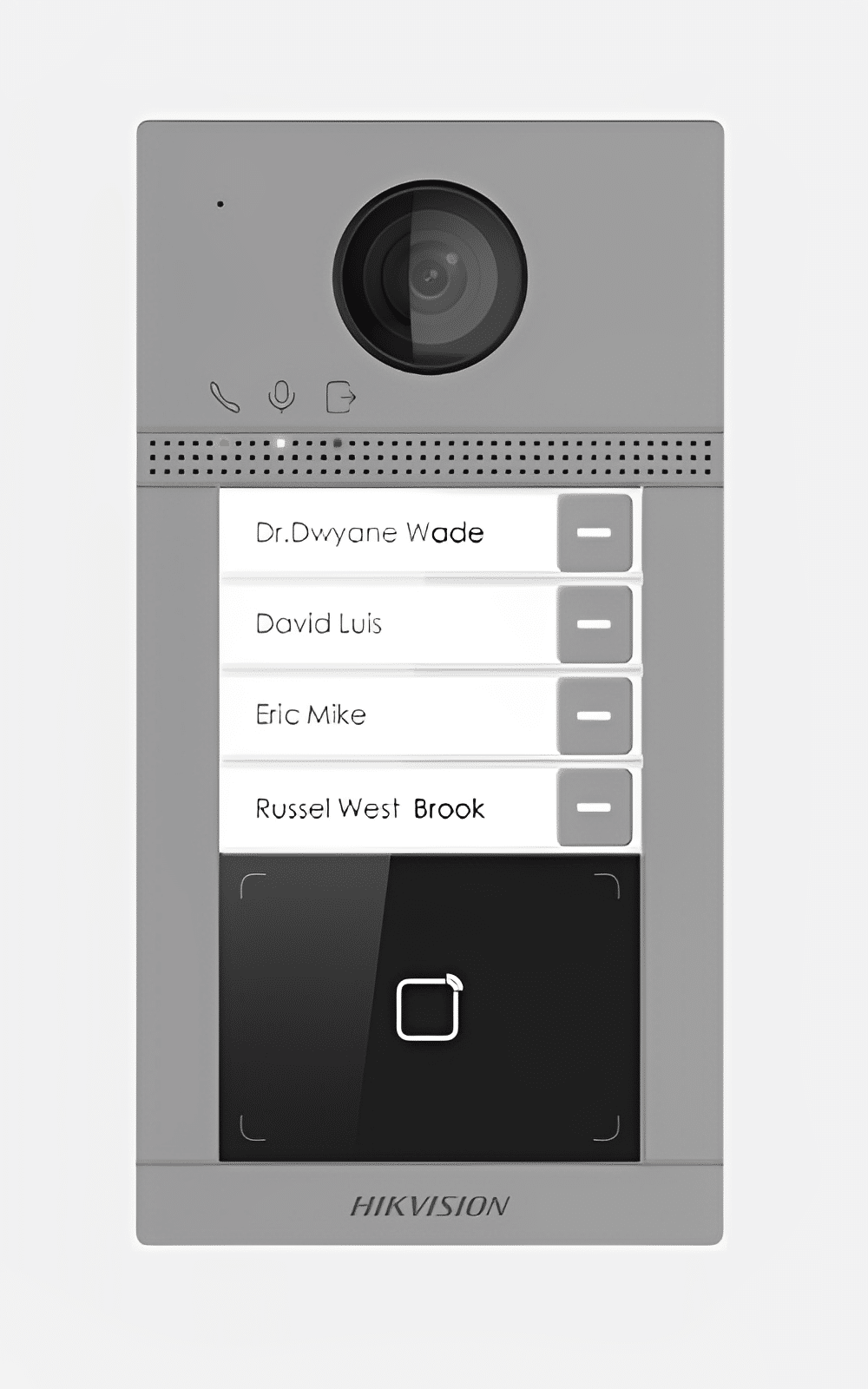

Hikvision IP Video Intercom Four Unit Outdoor Station, WiFi, PoE
Hikvision IP Video Intercom 4-unit Features
4 Buttons Metal Villa Door Station
- Support Wifi, convenient to set up, and no wiring required
- Support web configuration
- Aluminum alloy, nice industry design, IP65, IK08, 3 indicators integrated
- Internal Mifare card reader, 4-ch Indoor station access control
- Noise suppression and echo cancellation
- 2MP HD camera with IR supplement
- Standard PoE/12 VDC
Hikvision IP Video Intercom 4-unit Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 M
- RAM: 256 M
- CPU: Embedded MCU Processor
- Video Parameters
- Lens: 1
- Resolution:
- Main stream: 1920 × 1080
- Substream: 640 × 480
- FOV: Horizontal: 124° Vertical: 75°
- WDR: Support
- Supplement Light: IR supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: A built-in loudspeaker (More than 80 dB within 30 cm)
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- User Capacity: 2000
- Card Capacity: 10000
- Linked Indoor Station Capacity: 4(main indoor station)
- Sub Door Station Capacity: 16
- Network Parameters
- Communication Protocol: TCP/IP, RTSP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Received Frequency: 2.4 to 2.4835GHz
- Transmitted Frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20/40 MHz
- Frequency Power:
- 802.11b:15 dBm +/- 1.5 dBm
- 802.11g:15 dBm +/- 1.5 dBm
- 802.11n(ht20):14 dBm +/- 1.5 dBm
- 802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card Reading Frequency: 13.56 MHz
- Device Interfaces
- Alarm Input: 4
- Network Interface: 1
- TAMPER: 1
- Exit Button: 2 Max.
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF Card: 1(Reserved)
- Alarm Output: 0
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
- General
- Button: 4
- Installation: Surface mounting
- Indicator:
- 3
- 380 g
- Protective Level: IP65, IK08
- Working Temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working Humidity: 10% to 95%
- Dimensions: 174 mm × 91 mm × 29 mm
- Application Environment: Outdoor
- Power Consumption: ? 10 W
- Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
Technical Specifications
Hikvision IP Video Intercom Four Unit Outdoor Station, WiFi, PoE
Hikvision IP Video Intercom 4-unit Features
4 Buttons Metal Villa Door Station
- Support Wifi, convenient to set up, and no wiring required
- Support web configuration
- Aluminum alloy, nice industry design, IP65, IK08, 3 indicators integrated
- Internal Mifare card reader, 4-ch Indoor station access control
- Noise suppression and echo cancellation
- 2MP HD camera with IR supplement
- Standard PoE/12 VDC
Hikvision IP Video Intercom 4-unit Specifications
- System Parameters
- Operating System: Embedded Linux operation system
- ROM: 32 M
- RAM: 256 M
- CPU: Embedded MCU Processor
- Video Parameters
- Lens: 1
- Resolution:
- Main stream: 1920 × 1080
- Substream: 640 × 480
- FOV: Horizontal: 124° Vertical: 75°
- WDR: Support
- Supplement Light: IR supplement
- Video Compression Standard: H.264
- Audio Parameters
- Audio Compression Standard: G.711 U, G.711 A
- Audio Input: Built-in omnidirectional microphone
- Audio Output: A built-in loudspeaker (More than 80 dB within 30 cm)
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
- Capacity
- User Capacity: 2000
- Card Capacity: 10000
- Linked Indoor Station Capacity: 4(main indoor station)
- Sub Door Station Capacity: 16
- Network Parameters
- Communication Protocol: TCP/IP, RTSP
- Wired Network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi Standard: Wi-Fi 802.11 b/g/n
- Received Frequency: 2.4 to 2.4835GHz
- Transmitted Frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20/40 MHz
- Frequency Power:
- 802.11b:15 dBm +/- 1.5 dBm
- 802.11g:15 dBm +/- 1.5 dBm
- 802.11n(ht20):14 dBm +/- 1.5 dBm
- 802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card Reading Frequency: 13.56 MHz
- Device Interfaces
- Alarm Input: 4
- Network Interface: 1
- TAMPER: 1
- Exit Button: 2 Max.
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF Card: 1(Reserved)
- Alarm Output: 0
- Lock Control: 2
- Door Contact Input: 2
- Power Interface: 1
- General
- Button: 4
- Installation: Surface mounting
- Indicator:
- 3
- 380 g
- Protective Level: IP65, IK08
- Working Temperature: -40° C to 53° C(-40° F to 127.4° F)
- Working Humidity: 10% to 95%
- Dimensions: 174 mm × 91 mm × 29 mm
- Application Environment: Outdoor
- Power Consumption: ? 10 W
- Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
