About the product

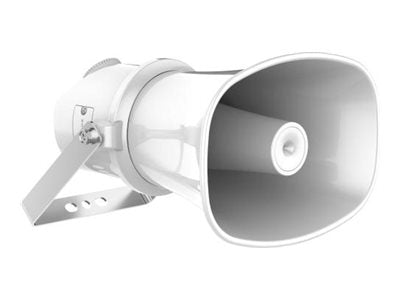

The Hikvision DS-QAZ1310G1T-E is designed for public address systems, delivering audio clarity and performance. With a robust IP speaker construction and a durable metal body, this device operates efficiently in various environmental conditions, withstanding temperatures from -30 °C to 60 °C and humidity levels of 0-90%. Its audio capabilities include support for multiple formats such as WAV, AAC, and MP3, along with two integrated microphones for enhanced communication.
Equipped with a powerful horn driver and an active amplification system, this speaker produces a maximum output level of 121 dB, ensuring clear sound projection in large spaces. The speaker features 2-way audio talkback, broadcast mode, and tactile text-to-speech support, making it a versatile choice for various applications. Utilizing Power over Ethernet technology, the device simplifies installation while maintaining a reliable connection through IEEE 802.3 standards. Compliant with multiple regulatory standards, the DS-QAZ1310G1T-E prioritizes environmental safety and operational efficiency.
Technical Specifications
| Primary Information | |
| Product Description: | Hikvision DS-QAZ1310G1T-E - IP speaker - for PA system |
| Product Type: | IP speaker - for PA system |
| Integrated Memory: | 64 GB |
| Enclosure Design: | Horn |
| Speaker Type: | Active |
| Continuous Power: | 10 Watt |
| Frequency Response: | 300 - 13000 Hz |
| Nominal Impedance: | 8 Ohm |
| Amplifier: | Integrated |
| Interfaces: | Ethernet, Fast Ethernet, PoE-Plus |
| Audio Formats: | WAV, MP3, MPEG 2 Audio, AAC |
| Color: | White |
| Dimensions (WxDxH): | 9.3 in x 10.7 in x 6.9 in |
| Weight: | 4.63 lbs |
| General | |
| Product Type: | IP speaker - for PA system |
| Features: | 2-way audio talkback, broadcast mode, TTS support |
| Integrated Memory: | 64 GB |
| Microphone: | 2 microphones |
| Enclosure Color: | White |
| Enclosure Design: | Horn |
| Enclosure Material: | Metal |
| Speaker System | |
| Speaker Type: | Active |
| Continuous Power: | 10 Watt |
| Frequency Response: | 300 - 13000 Hz |
| Nominal Impedance: | 8 Ohm |
| Signal-To-Noise Ratio: | 85 dB |
| Max Output Level (Max SPL): | 121 dB |
| Sensitivity: | 110 dB |
| Amplifier: | Integrated |
| Coverage: | 100° x 70° |
| Interfaces: | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3at (Power over Ethernet Plus) |
| Voice Codecs: | G.711u-law, G.711a-law, MP3 |
| Network Protocols: | ONVIF (Discovery), SIP, IPv4, HTTP, HTTPS, SSL, TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP |
| Audio Formats: | WAV, MP3, MPEG 2 Audio, AAC |
| Speaker System Details | |
| Driver Details: | Speaker: full-range driver - Horn |
| Connections | |
| Connector Type: | LAN/power (RJ-45) |
| Miscellaneous | |
| Compliant Standards: | IP67, EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019, EN 6100-3-3:2013+A1:2019+A2:2021, EN 55035:2017+A11:2020, RCM, AS/NZS CISPR 32:2015, ICES-003 issue 7, IEC62368-1:2014, EN 62368-1:2014/A11:2017, RoHS 2011/65/EU, WEEE 2012/19/EU, REACH |
| Power | |
| Power Source: | Power over Ethernet (PoE) |
