SINGLE CHANNEL ADAPTER FOR DSX2-5000

Name: SINGLE CHANNEL ADAPTER FOR DSX2-5000
Brand: Fluke Networks
SKU: 420945NDN
Price: 533.14 CAD
Availability: OutOfStock

$533.14 CAD

~~$597.11 CAD~~ $533.14 CAD

-10% OFF Ask for quote

Shipping calculated at checkout.

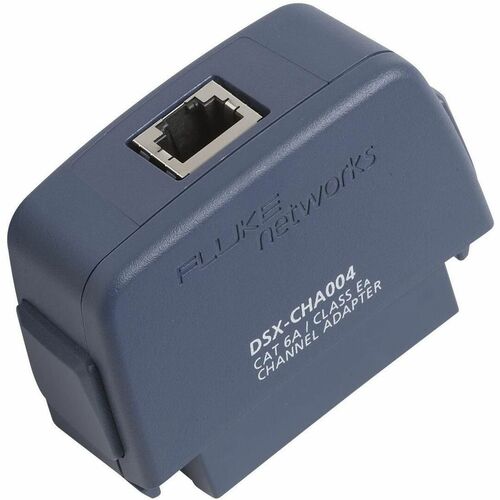

Fluke Networks DSX-CHA004 Channel Adapter - 6.75" (171.45 mm) Width x 5.50" (139.70 mm) Height x 10.50" (266.70 mm) Length - 1 Each

VPN:DSX-CHA004 SKU:420945NDN UPC:195112128466

Please see below description

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

About the product

If you receive failures when testing, there is the possibility of a faulty DSX-PLA004 Permanent Link Adapter. You could also have a faulty DSX-CHA004 Channel Adapter if you were carrying out Channel testing too.

A Cat 6 Self Test will help to determine if you have faulty DSX-PLA004 Permanent Link or DSX-CHA004 Channel Adapters.

Insert the DSX-5000 CableAnalyzer modules into the main frames.
Power up the main and remote units.
Plug in a DSX-PLA004 Permanent Link Adapter into the DSX module on the Versiv/TFS main unit. (The one with the LCD)
Plug in a DSX-CHA004 Channel Adapters into the other DSX module, and connect the adapters directly together as shown below:

Technical Specifications

Physical Characteristics
Weight (Approximate)	5.60 oz (158.76 g)
Length	10.50" (266.70 mm)
Height	5.50" (139.70 mm)
Width	6.75" (171.45 mm)
Miscellaneous
Application/Usage	Cable Analyzer
Package Contents	DSX-CHA004 Channel Adapter Users Manual
Compatibility	Fluke Networks DSX2-5000
Country of Origin	United States
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
General Information
Product Type	Channel Adapter
Manufacturer Part Number	DSX-CHA004
Manufacturer Website Address	http://www.flukenetworks.com
Packaged Quantity	1 Each
Manufacturer	Fluke Networks
Product Model	DSX-CHA004
Product Name	DSX-CHA004 Channel Adapter
Brand Name	Fluke Networks
