About the product

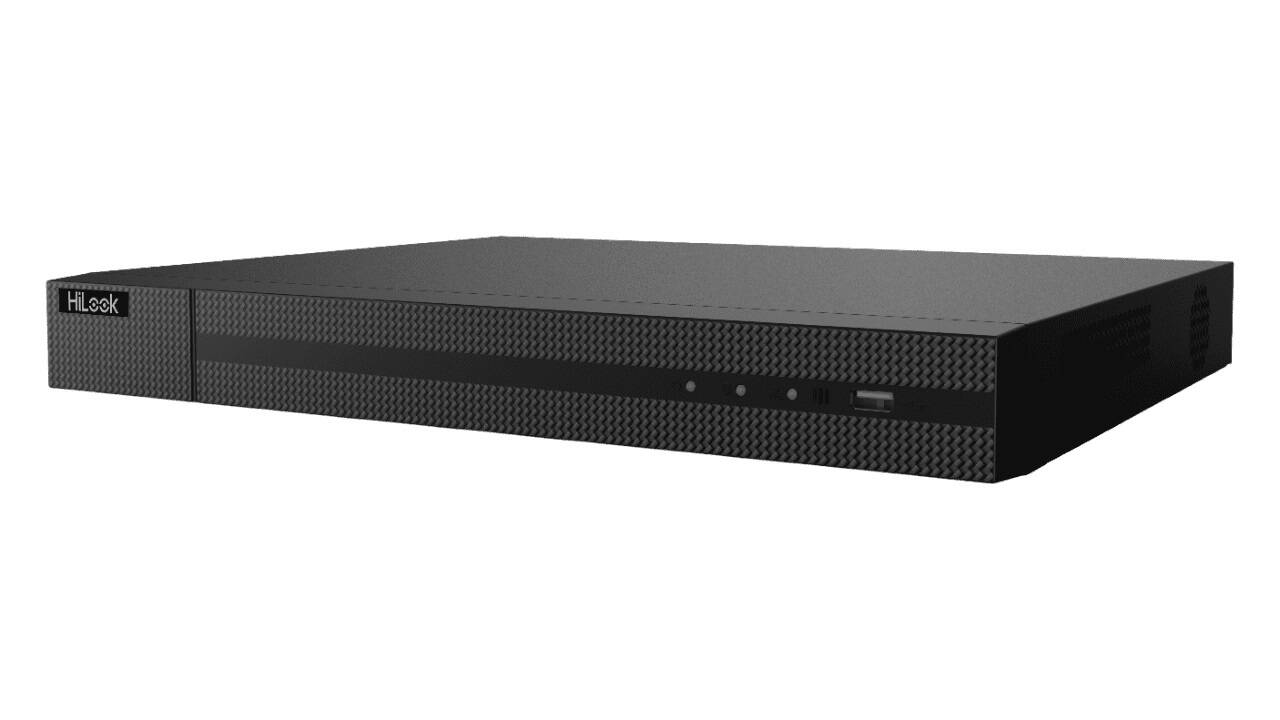

The Hikvision 8-Channel 5MP 1U H.265 DVR offers 8 channels of H.265 Pro+, high-definition video from analog CCTV cameras using BNC-style connections. Up to 16 network cameras can be incorporated alongside standard analog cameras to create a low-cost hybrid system with advanced analytics—all without incurring major installation costs.
H.265 video compression paired with full channel recording up to 8MP ensures crystal clear video from supported high-definition cameras (analog or digital), and Deep Learning based on vehicle/human targets greatly reduces false alarm events, even on legacy CCTV systems without extant smart functionality.
Supports HDTVI, AHD, CVI, CVBS and IP video inputs; up to 8MP @ 8 fps or 5MP @ 12 fps encoding. Built-in HDMI output can display live or recorded video up to 4K UHD natively, as well as simultaneous output from the additional HDMI and VGA outputs of up to 16-channels (synchronous). Hik-Connect and DDNS management allows for easy remote network management and configuration; transforming older analog on-site CCTV setups into powerful networked systems.
DVR-208U-M1 Specs and Features
- 8-channel analog video DVR with 16-channel network camera inputs
- Deep Learning analytics available by default on all channels, targets human/vehicle subjects for reduced false alarms
- Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video input: 8-ch BNC interface (1.0 Vp-p, 75?), supporting coaxitron connection
- Frame rate: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 3MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 30 fps (NTSC)
- Video output: Up to 4K on HDMI, up to 1080p on VGA
- Video output mode: HDMI & VGA simultaneous
- Video bitrate: 32 Kbps – 10 Mbps
- Audio input: 1-ch, RCA (2.0 Vp-p, 1?), 4-ch via coax
- Audio output: 1-ch, RCA (Linear, 1?)
- Audio compression: G.711u
- Audio bitrate: 64 Kbps
- Two-way audio supported (with compatible hardware), 1-ch output (2.0 Vp-p, 1?)
- Supports up to 64 remote connections via Hik-Connect
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Connects to Wi-Fi through USB Wi-Fi dongle device (not included)
- 1x SATA bay (up to 10TB per hard drive)
- 1x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- 2x USB 2.0 (rear panel)
- Power Supply: 12VDC, 2A
- Operating environment: -10 °C to 55 °C (14 °F to 131 °F), 10-90% humidity (non-condensing)
- Dimensions (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
- Weight: ? 1.6 kg (without HDD, 3.5 lb.)
Technical Specifications
The Hikvision 8-Channel 5MP 1U H.265 DVR offers 8 channels of H.265 Pro+, high-definition video from analog CCTV cameras using BNC-style connections. Up to 16 network cameras can be incorporated alongside standard analog cameras to create a low-cost hybrid system with advanced analytics—all without incurring major installation costs.
H.265 video compression paired with full channel recording up to 8MP ensures crystal clear video from supported high-definition cameras (analog or digital), and Deep Learning based on vehicle/human targets greatly reduces false alarm events, even on legacy CCTV systems without extant smart functionality.
Supports HDTVI, AHD, CVI, CVBS and IP video inputs; up to 8MP @ 8 fps or 5MP @ 12 fps encoding. Built-in HDMI output can display live or recorded video up to 4K UHD natively, as well as simultaneous output from the additional HDMI and VGA outputs of up to 16-channels (synchronous). Hik-Connect and DDNS management allows for easy remote network management and configuration; transforming older analog on-site CCTV setups into powerful networked systems.
DVR-208U-M1 Specs and Features
- 8-channel analog video DVR with 16-channel network camera inputs
- Deep Learning analytics available by default on all channels, targets human/vehicle subjects for reduced false alarms
- Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video input: 8-ch BNC interface (1.0 Vp-p, 75?), supporting coaxitron connection
- Frame rate: 8MP @ 8 fps / 3K @ 12 fps / 5MP @ 12 fps / 4MP @ 15 fps / 3MP @ 18 fps; 1080p/720p/WD1/4CIF/VGA/CIF @ 30 fps (NTSC)
- Video output: Up to 4K on HDMI, up to 1080p on VGA
- Video output mode: HDMI & VGA simultaneous
- Video bitrate: 32 Kbps – 10 Mbps
- Audio input: 1-ch, RCA (2.0 Vp-p, 1?), 4-ch via coax
- Audio output: 1-ch, RCA (Linear, 1?)
- Audio compression: G.711u
- Audio bitrate: 64 Kbps
- Two-way audio supported (with compatible hardware), 1-ch output (2.0 Vp-p, 1?)
- Supports up to 64 remote connections via Hik-Connect
- Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Connects to Wi-Fi through USB Wi-Fi dongle device (not included)
- 1x SATA bay (up to 10TB per hard drive)
- 1x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- 2x USB 2.0 (rear panel)
- Power Supply: 12VDC, 2A
- Operating environment: -10 °C to 55 °C (14 °F to 131 °F), 10-90% humidity (non-condensing)
- Dimensions (W × D × H): 265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
- Weight: ? 1.6 kg (without HDD, 3.5 lb.)
