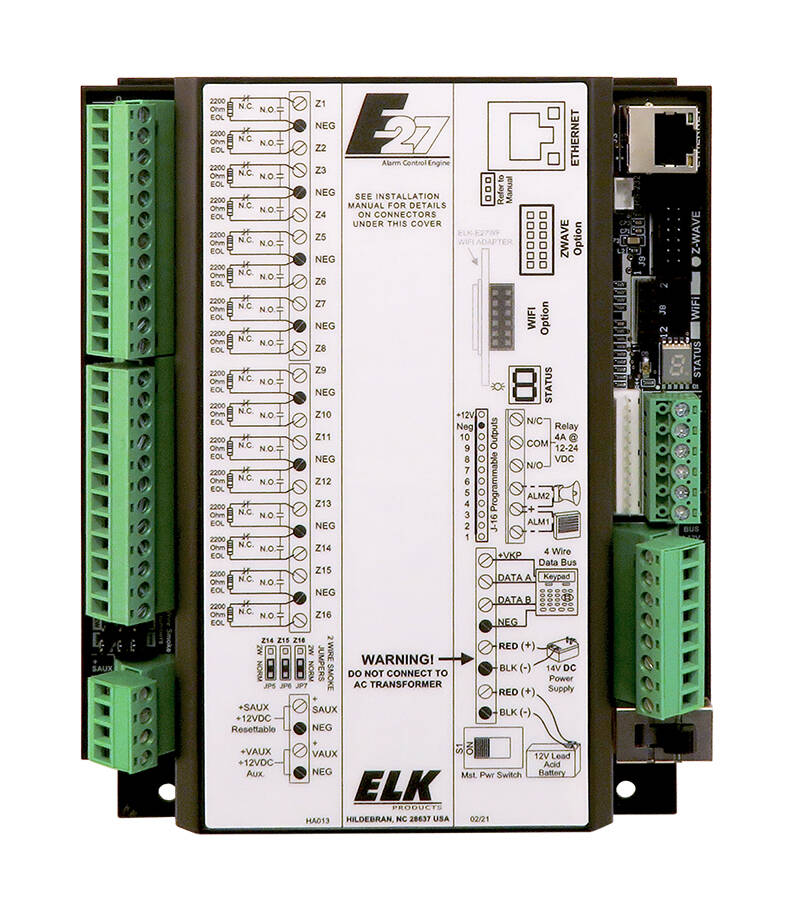

About the product
ELK’s E27 Alarm Engine® is a hybrid alarm control for intrusion & safety, supporting both hardwired & wireless sensors. An on-board Ethernet port & optional Wi-Fi adapter provide secure connectivity with multi-layered authentication & encrypted communications.
E27 offers powerful automation with simplified scheduling & a robust rules engine for unrestricted customization. Easy integration with Z-Wave devices provides convenient automation & real-time control of lights, thermostats, & locks.
Elk Alarm Engine E27 Main Board Only Features:
- Large zone capacity: 16 on-board zones expandable to 128
- Wireless capability: Up to 128 zones
- Areas/partitions: Up to 8
- Users: Up to 199
- User groups: Up to 10
- On-board Outputs: 2 Alarm Outputs, 1 form ""C"" relay and 10 voltage (12VDC, 50mA) outputs
- Z-Wave Support: 64 Lights, 8 Door Locks, 4 Thermostats, 4 Garage Doors
- On-board Ethernet port, Wi-Fi Support with optional Wi-Fi adapter
Elk Alarm Engine E27 Main Board Only Specifications:
- Flash Memory - Allows field updates to firmware electronically
- Supports 4-wire (any input) and 2-wire (inputs 14, 15, & 16) smoke detectors
- Includes fire alarm verification routine
- Plug-in terminal blocks make service and pre-wires a snap!
- Hardware ""watchdog"" and nonvolatile EEPROM memory
Technical Specifications
ELK’s E27 Alarm Engine® is a hybrid alarm control for intrusion & safety, supporting both hardwired & wireless sensors. An on-board Ethernet port & optional Wi-Fi adapter provide secure connectivity with multi-layered authentication & encrypted communications.
E27 offers powerful automation with simplified scheduling & a robust rules engine for unrestricted customization. Easy integration with Z-Wave devices provides convenient automation & real-time control of lights, thermostats, & locks.
Elk Alarm Engine E27 Main Board Only Features:
- Large zone capacity: 16 on-board zones expandable to 128
- Wireless capability: Up to 128 zones
- Areas/partitions: Up to 8
- Users: Up to 199
- User groups: Up to 10
- On-board Outputs: 2 Alarm Outputs, 1 form ""C"" relay and 10 voltage (12VDC, 50mA) outputs
- Z-Wave Support: 64 Lights, 8 Door Locks, 4 Thermostats, 4 Garage Doors
- On-board Ethernet port, Wi-Fi Support with optional Wi-Fi adapter
Elk Alarm Engine E27 Main Board Only Specifications:
- Flash Memory - Allows field updates to firmware electronically
- Supports 4-wire (any input) and 2-wire (inputs 14, 15, & 16) smoke detectors
- Includes fire alarm verification routine
- Plug-in terminal blocks make service and pre-wires a snap!
- Hardware ""watchdog"" and nonvolatile EEPROM memory
