About the product

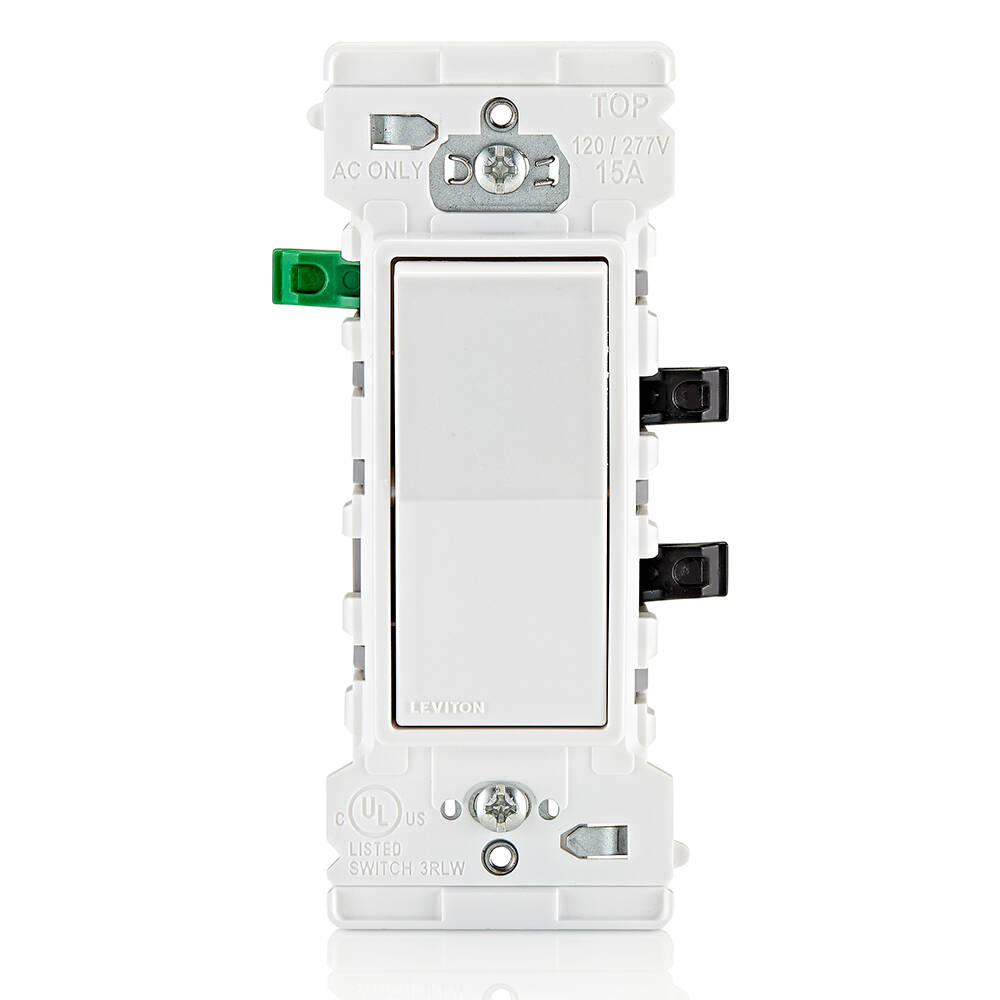

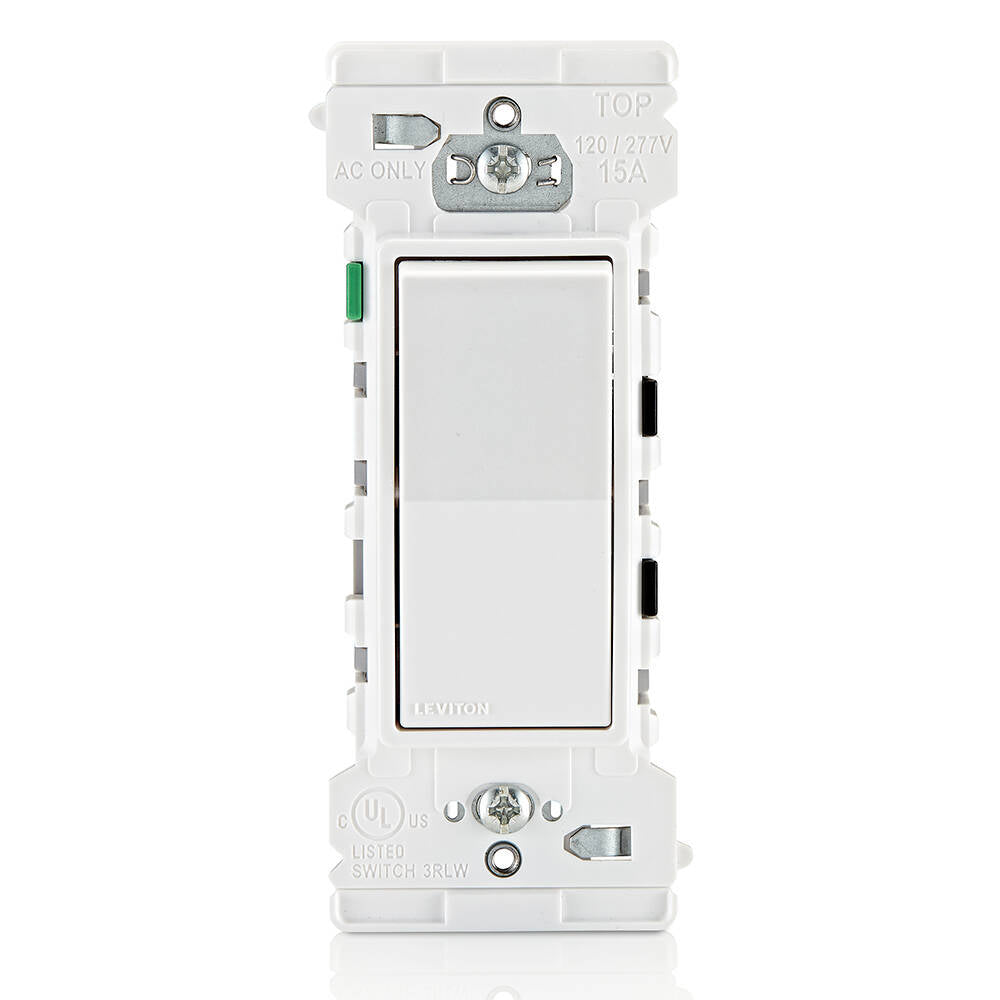

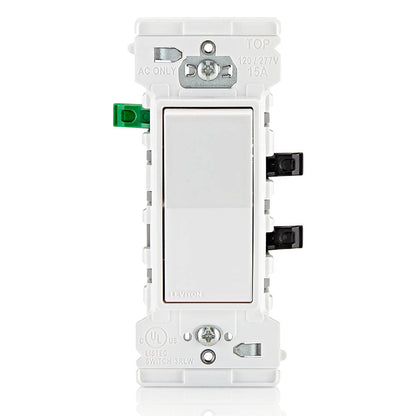

Leviton’s Decora Edge wiring devices provide the classic appearance and superior performance of Decora devices in a new easier-to-install, and safe design which consists of Single Pole and 3-Way Switches and a Tamper-Resistant 15-amp Duplex Receptacle.
Leviton’s Decora Edge wiring devices have color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety.
Leviton’s Decora Edge is ideal for new home construction and MDU projects as well as retrofit applications.
Leviton’s Decora Edge Features and Benefits:
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduce the risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Strap works with any sized wallplate
- Devices coordinate seamlessly with other Decora devices
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Receptacle allows for split circuit applications
- Test openings on switches for circuit testers?
Leviton’s Decora Edge Specifications:
- Amperage: 15 A
- Body Material: Thermoplastic
- Self-Grounding: Yes
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Max. Amperage: 15 Amp
- Strap Material: Plastic and Steel
- Termination: Side Lever
- Type: Rocker Switch
- Voltage: 120/277 VAC
- CSA 22.2 No 111
- NOM: NOM Certified
- UL 20: File E7458
- Warranty: 2-Year Limited
Technical Specifications
Leviton’s Decora Edge wiring devices provide the classic appearance and superior performance of Decora devices in a new easier-to-install, and safe design which consists of Single Pole and 3-Way Switches and a Tamper-Resistant 15-amp Duplex Receptacle.
Leviton’s Decora Edge wiring devices have color-coded lever terminals (including the ground terminal) for faster, efficient wiring, a larger strap with a unique tongue and groove alignment feature for quicker trim out on multi-gang installations, and no exposed metal parts for safety.
Leviton’s Decora Edge is ideal for new home construction and MDU projects as well as retrofit applications.
Leviton’s Decora Edge Features and Benefits:
- Patent pending lever terminals for fast, efficient wiring
- Color-coded lever terminals reduce the risk of miswiring
- Lever doors have snap feature to assure connection has been made; audible click confirms lever door is closed
- Only Residential device on the market with a quick termination ground wire
- No exposed metal parts for enhanced safety; eliminates need for electrical tape
- Lever connectors work with 14 gauge and 12 gauge stranded and solid copper wire
- Wire openings prevent wire insulation from being inserted into the terminals
- One standard strip gauge for all devices
- Strap’s unique tongue and groove alignment offers quicker trim out on multi-gang installations
- Strap works with any sized wallplate
- Devices coordinate seamlessly with other Decora devices
- Can be used with Decora wallplates and Decora Plus™ screwless wallplates
- Receptacle allows for split circuit applications
- Test openings on switches for circuit testers?
Leviton’s Decora Edge Specifications:
- Amperage: 15 A
- Body Material: Thermoplastic
- Self-Grounding: Yes
- HP Rating: 1/2HP-120V 2HP-240V-277V
- Max. Amperage: 15 Amp
- Strap Material: Plastic and Steel
- Termination: Side Lever
- Type: Rocker Switch
- Voltage: 120/277 VAC
- CSA 22.2 No 111
- NOM: NOM Certified
- UL 20: File E7458
- Warranty: 2-Year Limited
