About the product

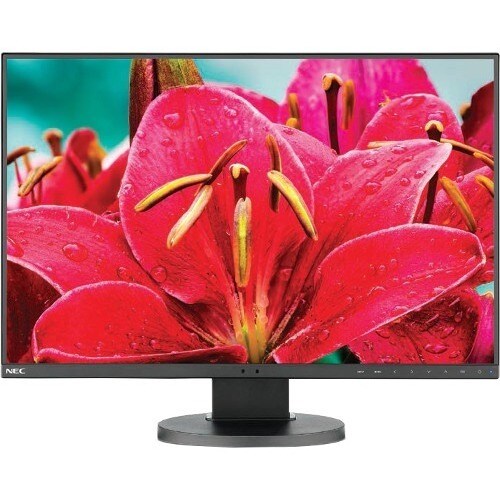

The 24" NEC MultiSync EA231WU with SpectraViewII is a Wide UXGA (1920x1200) ultra-narrow bezel IPS desktop monitor ideal for corporate environments. Designed to enhance work performance, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA231WU allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models.ControlSync™ technology allows users to control up to six EA231WU displays in a multi-monitor configuration. Upon establishing one unit as the master, users are able to control many performance attributes of the multi-monitor setup in unison through the single monitor. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.1 hub, connects users to the latest peripherals and future-proofs the investment. Includes a color calibration sensor and SpectraViewII software for simple color accuracy.
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials

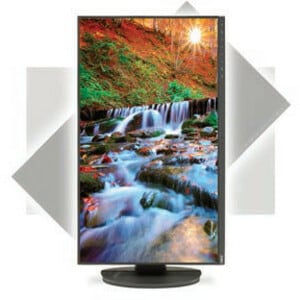

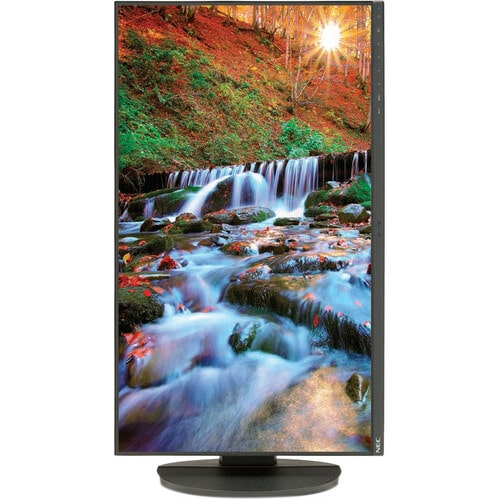

- Height-adjust, pivot, tilt and swivel capabilities add flexibility and comfort to your viewing preferences

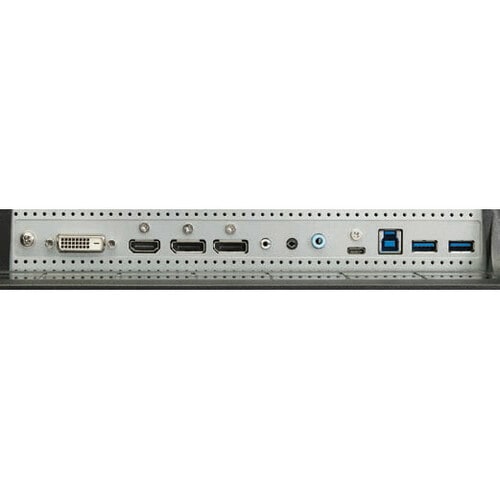

- Full connectivity, including DisplayPort 1.2 in / out, HDMI, DVI-D and VGA

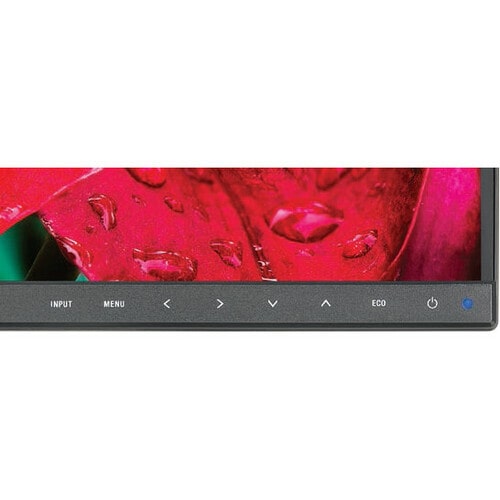

- Touch-sensitive OSD® controls are integrated into the bezel, making display adjustments easier than ever
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
- Certified Low Blue Light and Flicker Free
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

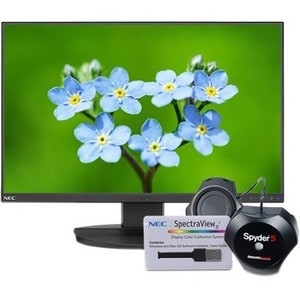

- Includes the SpectraView EA Kit (SVII-EA-KIT) with SpectraViewII software and Spyder colorimeter
- Aspect ratio of 16:10 delivers a viewing area that works well for home and office
- 250 cd/m² brightness gives an exceptional visible display for clear and consistent on-screen pictures
- DisplayPort interface that transmits both audio and video signals through a single connection to deliver versatile performance
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- 5 ms response time makes it excellent for latest action films, sports or gaming
- Experience supreme quality HD content with Widescreen Ultra Extended Graphic Array
- VESA mount compatibility allows you to mount the display on a wall or with a stand depending on your specific needs
Technical Specifications
| Audio | |
| Speakers | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 15 W |
| Standby Power Consumption | 290 mW |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Video | |
| Brightness | 250 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1920 x 1200 |
| Native Contrast Ratio | 1,000:1 |
| Color Gamut | 69.5% NTSC |
| 72.9% Adobe RGB | |
| 94.3% sRGB | |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified Displays 7.0 |
| Energy Star | Yes |
| TCO Certified | Yes |
| Energy Efficiency Certification | ENERGY STAR 7.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Aspect Ratio | 16:10 |
| Pixel Pitch | 9.84 mil (0.25 mm) |
| Response Time | 5 ms |
| Viewable Screen Size | 22.5" |
| Screen Mode | WUXGA |
| Number of Screens | 1 |
| Backlight Technology | WLED |
| Horizontal Frequency | 31.50 kHz to 75 kHz - Analog/Digital |
| Vertical Frequency | 50 Hz to 60 Hz |
| General Information | |
| Product Type | LCD Monitor |
| Manufacturer Part Number | EA231WU-BK-SV |
| Manufacturer Website Address | http://www.sharp-nec-displays.com/ |
| Manufacturer | Sharp |
| Product Model | EA231WU-BK-SV |
| Product Name | MultiSync EA231WU-BK-SV Widescreen LCD Monitor |
| Package Type | Retail |
| Product Line | MultiSync |
| Product Series | EA |
| Brand Name | NEC Display |
| Physical Characteristics | |
| Weight (Approximate) | 7.50 lb (3401.94 g) |
| Height | 12.60" (320.04 mm) |
| Width | 19.60" (497.84 mm) |
| Depth | 1.80" (45.72 mm) |
| Weight with Stand (Approximate) | 13 lb (5896.70 g) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height with Stand | 19.20" (487.68 mm) |
| Width with Stand | 19.60" (497.84 mm) |
| Depth with Stand | 9.80" (248.92 mm) |
| Color Family | Black |
