About the product

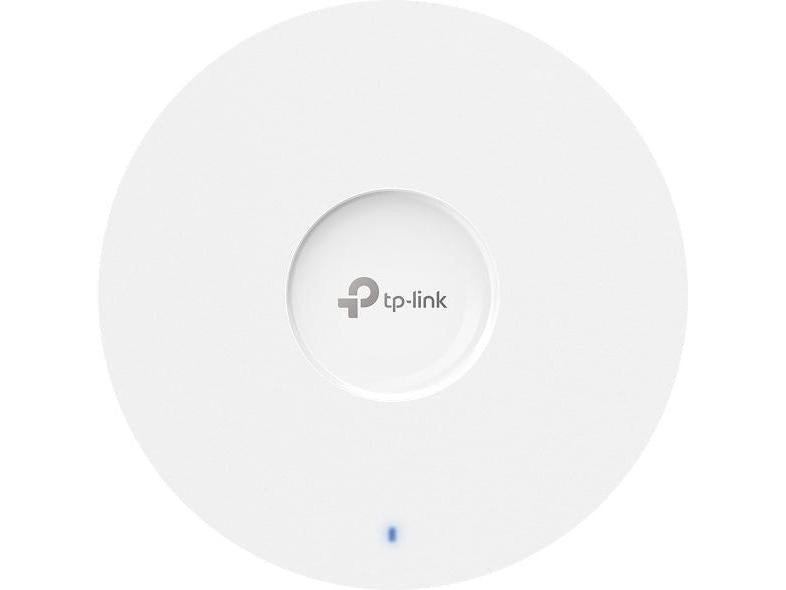

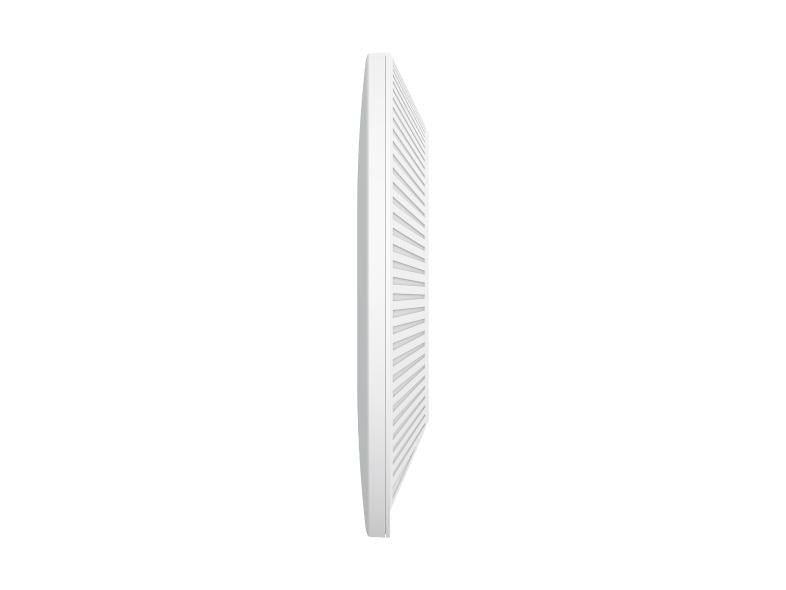

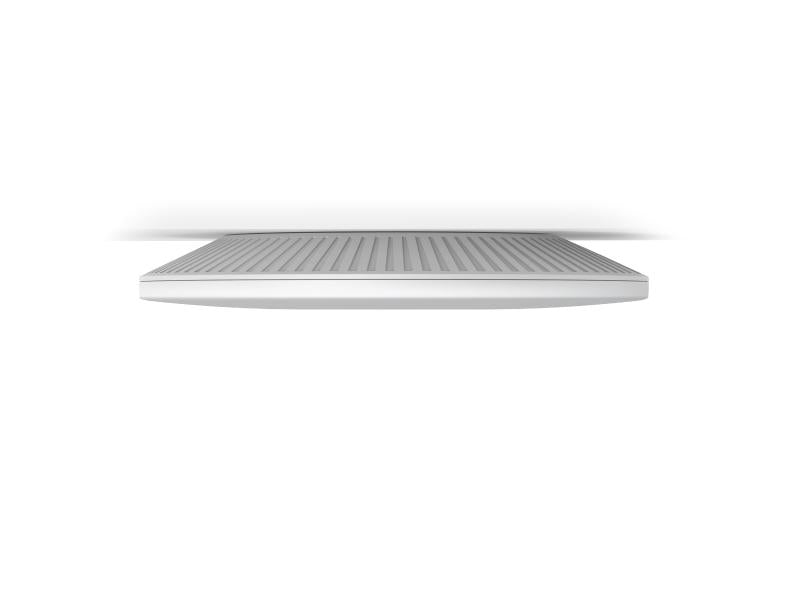

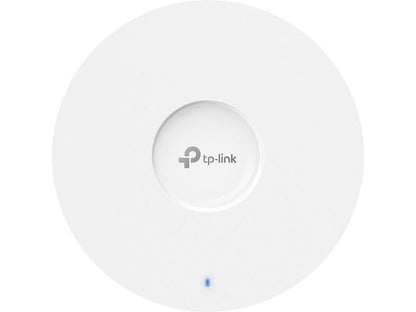

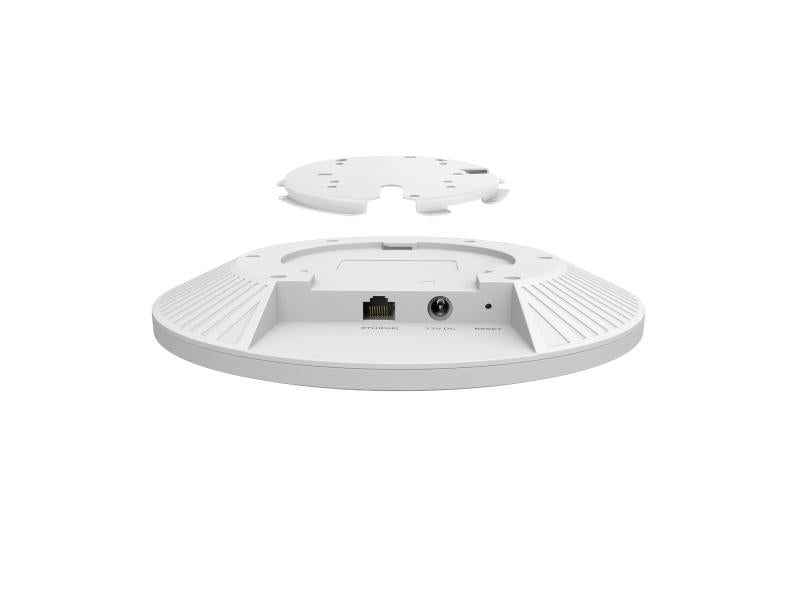

Omada Ax6000 Ceiling Mount Dual-Band Wi-Fi 6 Access Point Port: 1 2.5G Rj45 Port Speed:1148Mbps At 2.4 Ghz + 4804 Mbps At 5 Ghz Feature: 802.3At Poe+ And 12V Dc (Power Adapter Is Not Included), 4 Internal Antennas, Mu-Mimo, 160Mhz Supported, Seamless Roaming, Band Steering, Beamforming, Load Balance, Airtime Fairness, ,Centralized Management By Omada Sdn Controller, Omada App
Technical Specifications
| Primary Information | |
| Product Type: | Access Point |
| Networking Type: | Ethernet |
| Data Transfer Rate: | 2.5 Gbps |
| Data Link Protocol: | Gigabit Ethernet |
| Processor / Type: | Not Included |
| Processor / Manufacturer: | Not Included |
| Processor / Clock Speed: | Not Included |
| Processor / Number: | Not Included |
| Radio Count: | Dual |
| Frequency Band: | 2.4 GHz; 5 GHz |
| Connectivity Technology: | Wireless |
| MIMO Type: | 4x4 MIMO |
| Antenna Type: | Omni Antenna |
| Model: | EAP683 UR |
| Features: | Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz.Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc. |
| Networking | |
| Transport Protocol: | Gigabit Ethernet |
| Networking Compliant Standards: | 802.11ax/ac/n/g/b/a |
| Remote Management Protocol: | Syslog; SSH; SNMP |
| Networking / Ports Qty: | 1 |
| Cellular Technology: | None |
| Cellular Service Provider: | None |
| Cellular Generation: | None |
| Dimensions&Miscellaneous | |
| Width: | 8.7 Inch |
| Depth: | 8.7 Inch |
| Height: | 1.3 Inch |
| Power | |
| Power / Voltage Required: | 12 V / 2 A DC |
| Special Feature | |
| RoHS: | Y |
| COO: | Inquire |
| TAA compliance: | Inquire |
| UNSPSC Code | |
| UNSPSC Code: | 43222631 |
