About the product

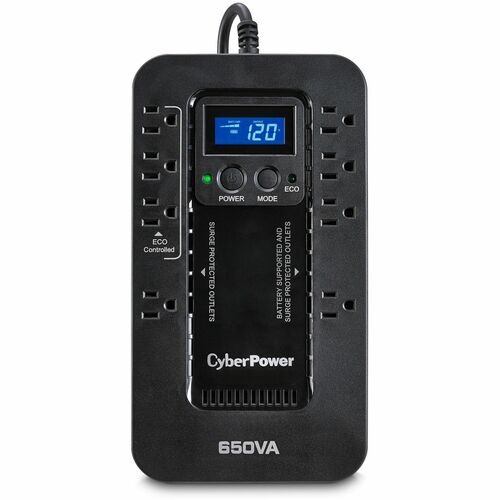

A compact UPS with standby topology, the CyberPower Ecologic EC650LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC650LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC650LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.
- Capacity: 650 VA / 390 W
- Topology: Standby
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB
- Management software: PowerPanel® Personal
- Warranty: 3 year
- Connected Equipment Guarantee: $100,000
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Battery Mode |
| Overload | |
| Low Battery | |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 6.39 lb (2900 g) |
| Form Factor | Compact |

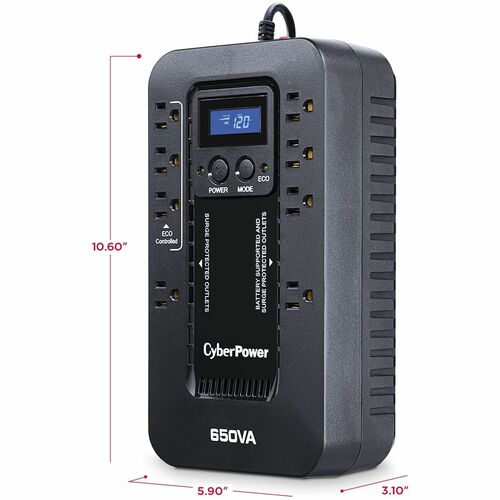

| Height | 3.11" (79 mm) |
| Width | 10.59" (269 mm) |
| Depth | 5.91" (150 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 8.40 Minute |
| Backup/Run Time (Full Load) | 2.80 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | EC650LCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | EC650LCD |
| Product Name | Ecologic UPS EC650LCD 650VA Compact UPS |
| Product Series | Ecologic UPS |
| Brand Name | CyberPower |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 526 J |
| Waveform Type | Simulated Sine Wave |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 47 Hz |
| 63 Hz | |
| Load Capacity (VA) | 650 VA |
| Load Capacity (Watt) | 390 W |
| Output Power Factor | 0.6 |
| Technical Information | |
| Application/Usage | Home Theater |
| Home Network | |
| Home Entertainment System | |
| Equipment | |
| Computer Peripheral | |
| Modem | |
| Desktop Computer | |
| Workstation | |
| VoIP Phone | |
| Router | |
| Personal Electronic | |
| Network Device | |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
