About the product

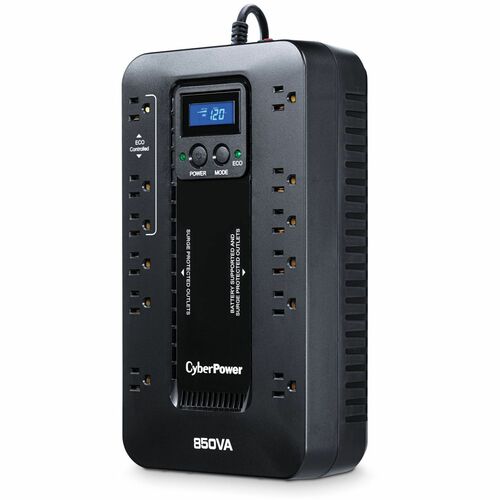

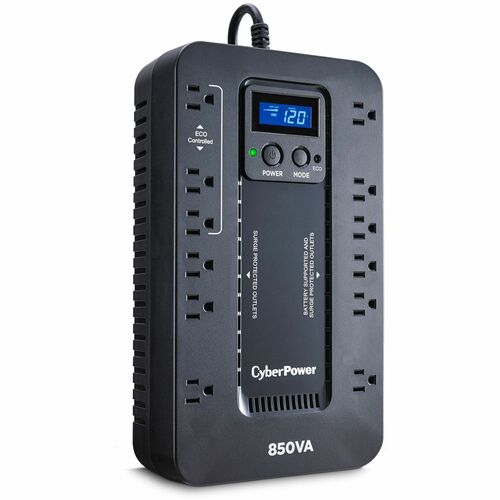

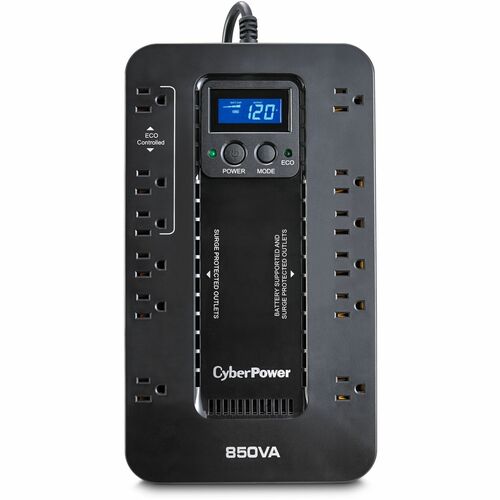

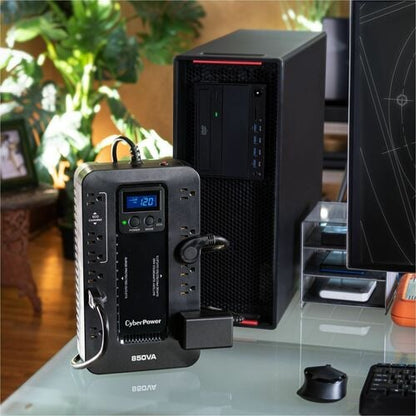

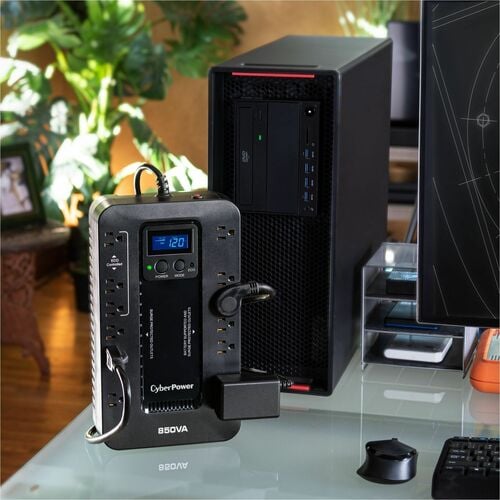

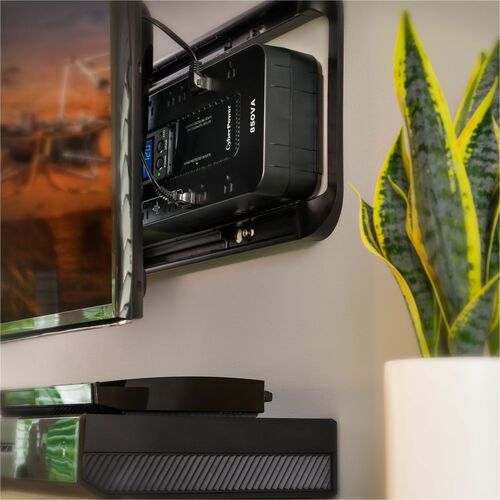

A compact UPS with standby topology, the CyberPower Ecologic EC850LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC850LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC850LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.
- Capacity: 850 VA / 510 W
- Topology: Standby
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 5 ft. cord

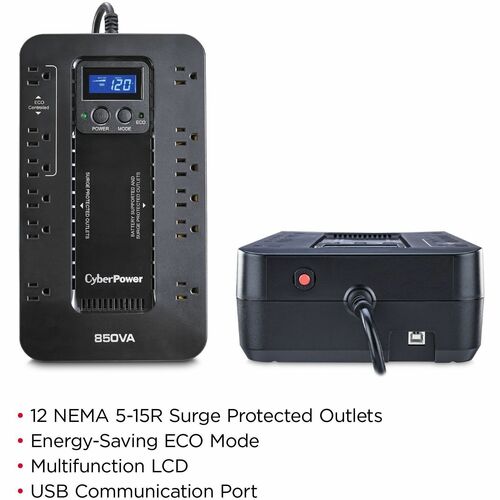

- Outlet types: 12 × NEMA 5-15R
- Communication: USB
- Management software: PowerPanel® Personal
- Warranty: 3 year
- Connected Equipment Guarantee: $100,000
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Interfaces/Ports | |

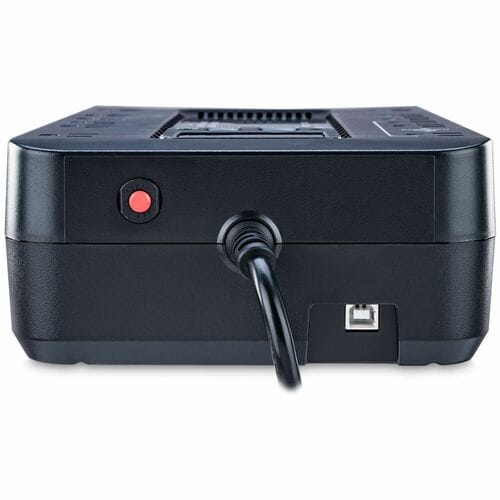

| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Overload |
| Battery Mode | |
| Low Battery | |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.69 lb (3490 g) |
| Form Factor | Compact |

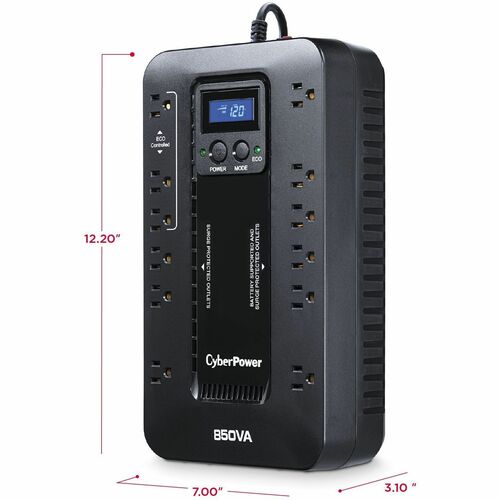

| Height | 3.11" (79 mm) |
| Width | 12.20" (310 mm) |
| Depth | 7.01" (178 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Number of Batteries | 1 |
| Backup/Run Time (Half Load) | 7.90 Minute |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | EC850LCD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | EC850LCD |
| Product Name | Ecologic UPS EC850LCD 850VA Compact UPS |
| Product Series | Ecologic UPS |
| Brand Name | CyberPower |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 526 J |
| Waveform Type | Simulated Sine Wave |
| Output Frequency | 50 Hz |
| 60 Hz | |
| Input Frequency | 47 Hz |
| 63 Hz | |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 510 W |
| Output Power Factor | 0.6 |
| Technical Information | |
| Application/Usage | Computer Peripheral |
| Workstation | |
| VoIP Phone | |
| Personal Electronic | |
| Desktop Computer | |
| Equipment | |
| Home Entertainment System | |
| Home Network | |
| Home Theater | |
| Modem | |
| Network Device | |
| Router | |
| Features | Audible Alarm |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 5 ft (1.52 m) |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | GreenPower UPS™ High-Efficiency |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 4 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
