About the product

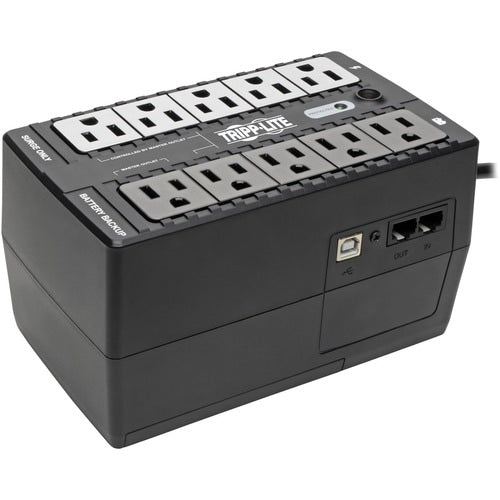

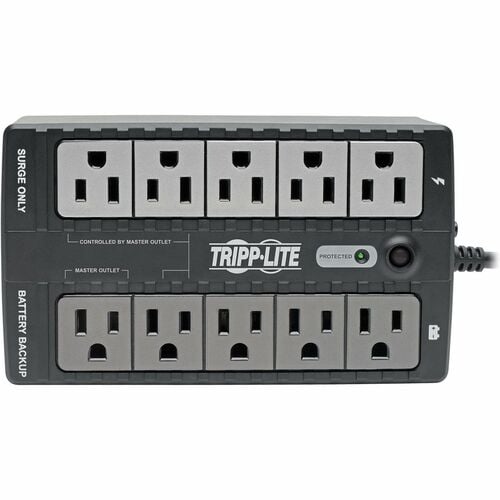

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- 10 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
Technical Specifications
| Controls/Indicators | |
| Status Indicators | 2 LED Indicator:
Main Power Switch Controls :
|
| Warranty | |
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |

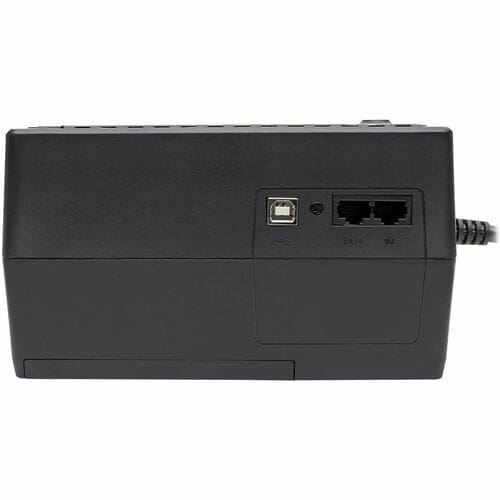

| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Alarm | Battery Fault |
| Low Battery | |
| Overload | |
| Environmental Conditions | |
| Sound Emission | 40 dB |
| Thermal Dissipation | 4 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 6561 ft (1999792.80 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 5.20 lb (2358.68 g) |

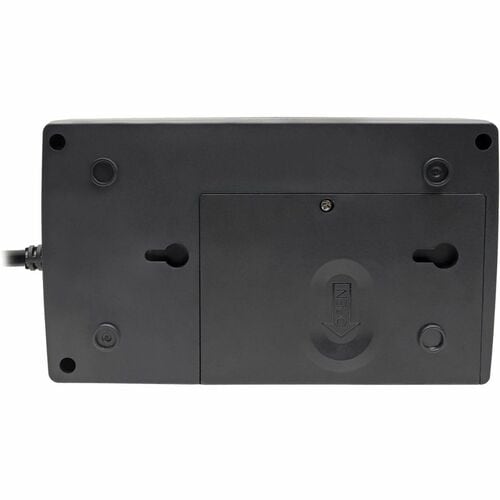

| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 4.13" (105 mm) |
| Width | 4.33" (110 mm) |
| Depth | 7.28" (185 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Life | 6 Year |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 5 Minute |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Battery Characteristics | Valve-regulated |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 6.50 Hour |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | ECO550UPS |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | ECO550UPS |
| Product Name | ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Product Series | ECO |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| 120 V AC | |
| 110 V AC | |
| Surge Energy Rating | 316 J |
| Waveform Type | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Miscellaneous | |
| Additional Information |
|
| Package Contents | |
| Software Included | PowerAlert software available via free download |
| Certifications & Standards | Tested to :
|
| Country of Origin | Vietnam |
| Recycled | No |
| Assembly Required | No |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Technical Information | |
| Application/Usage | Hospital |
| Retail | |
| Computer Peripheral | |
| Dataline Protection | RJ-11 |
| Overload Protection | Yes |
| Protection Type | Power Failure |
| EMI / RFI | |
| Brownout | |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 6 ft (1.83 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| Number of Surge-only Outlets | 5 |
| Transfer Time | 6 ms |
| Receptacle Detail | 10 x NEMA 5-15R |
