About the product

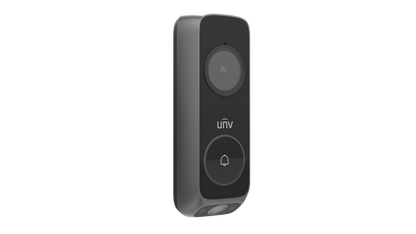

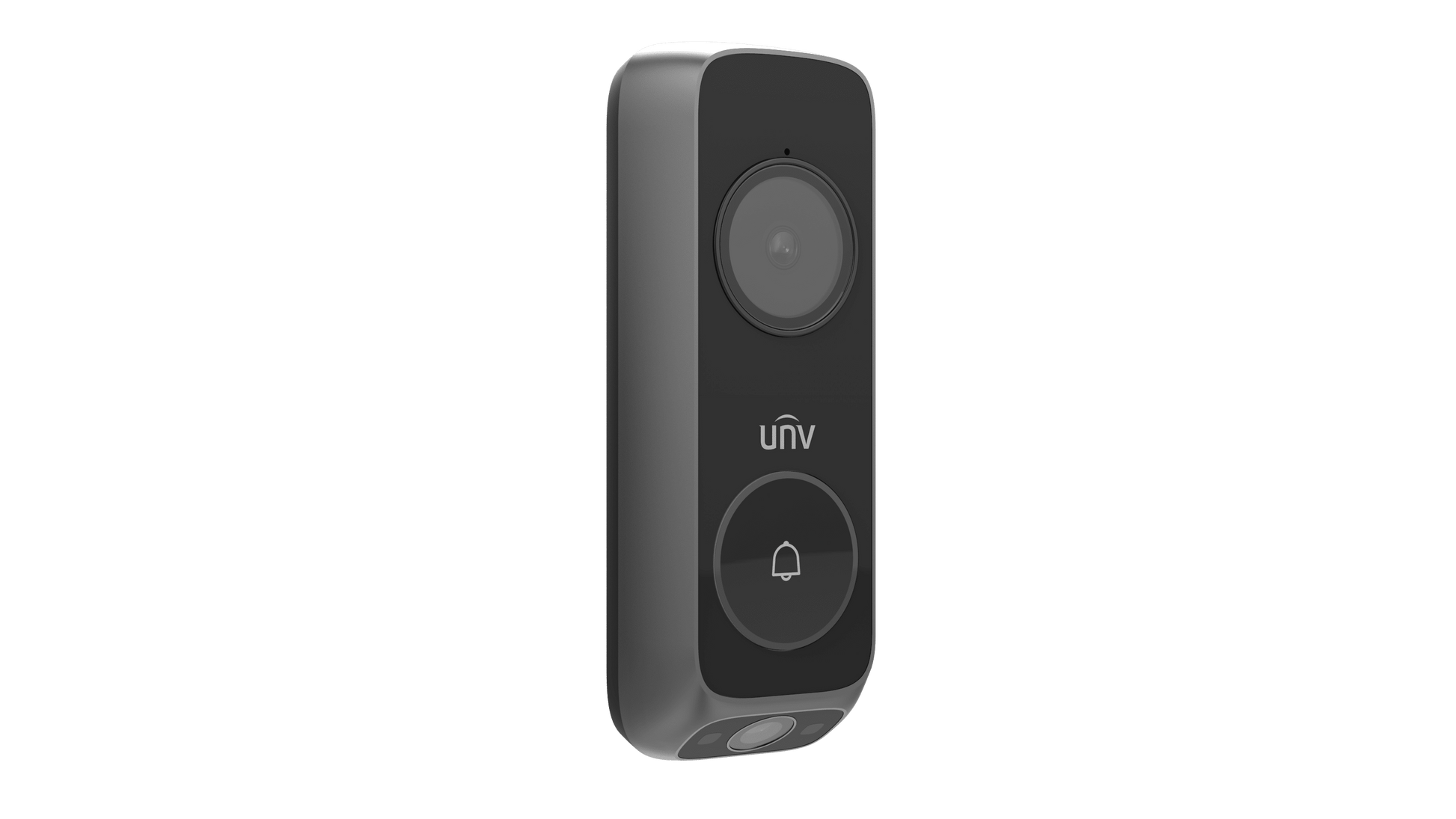

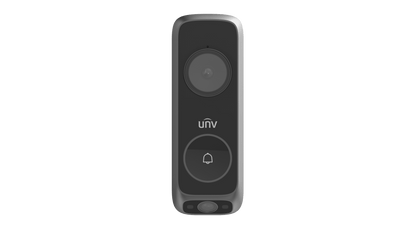

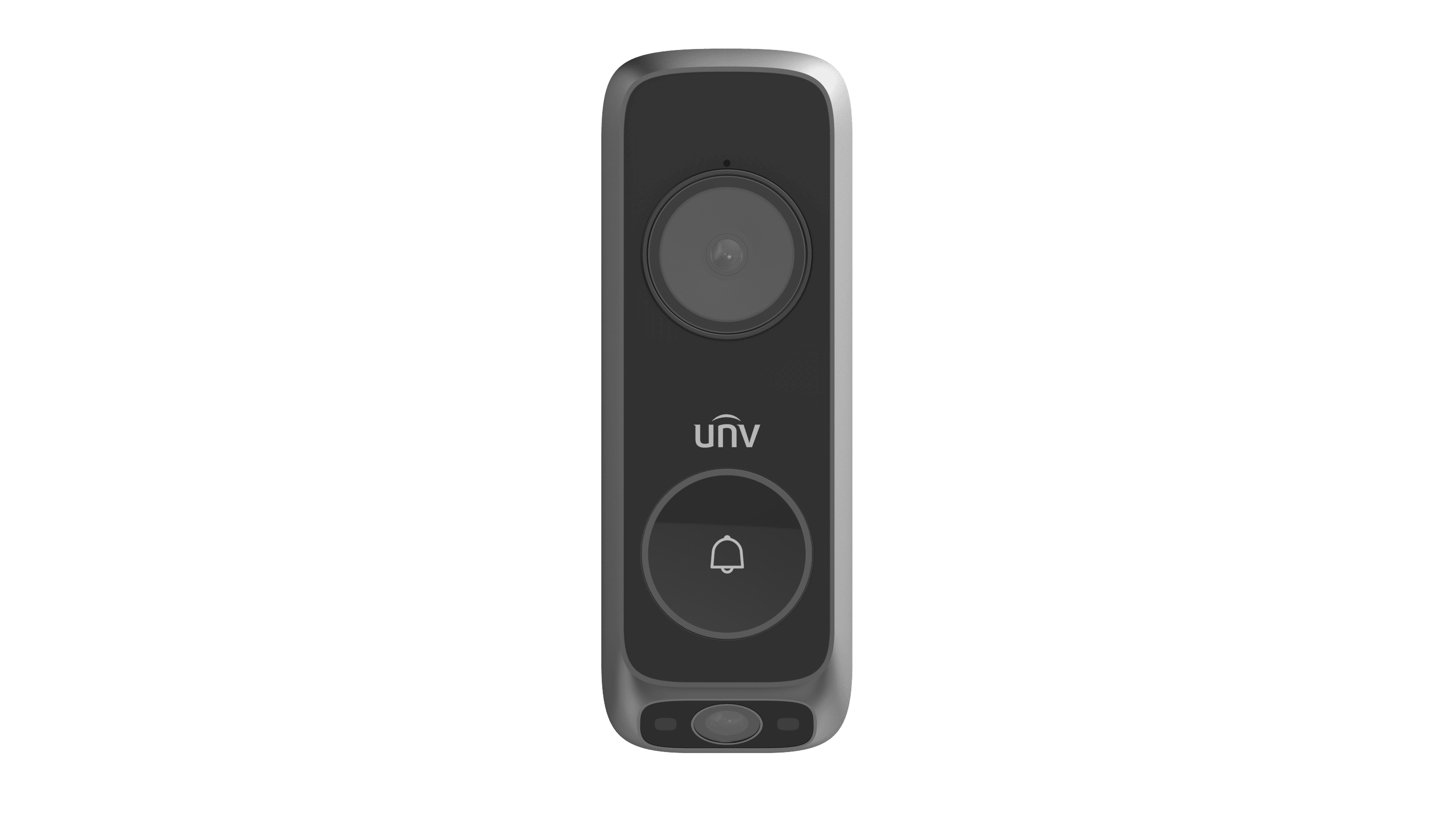

The Uniview ED-525B-WB WiFi Video Doorbell is perfect for stand alone use or integration. It boasts two high-definition, wide angle lenses to give users a complete view of who's coming and going-- visitors, package delivery, trespassers, and more.
The forward facing lens provides an overview of the area, while the downward facing lens provides a view directly below the doorbell, perfect for packages.
The video doorbell supports a typical wired mechanical chime.
The ED-525B-WB can be used on it's own with the free UNV Link app for live view, communication and playback.
Video can be recorded to the on board memory so no additional fees or storage required.
Additionally, the UNV WiFi video doorbell can be used with a Uniview NVR to record one or both camera views. Integration into an Uniview NVR allows users to use live view, playback and alarm search from the NVR interface.
Built-in motion detection, package detection and human body filtering ensures high accuracy notifications for connected users; removing false alarms from debris, animals or random objects.
Built-in dual 3MP and 2MP cameras provide up to 116° of horizontal coverage and 131° of diagonal image coverage, ensuring any and all visitors are captured in crystal-clear HD video; and HDR and WDR light correction ensures clear imaging 24/7, even in challenging direct sunlight conditions, preventing blowouts or heavy shadowing.
Built-in IR and supplemental white light illuminates and captures detailed video of subjects, even at night, up to 5 meters away from the doorbell. IP65 waterproofing and a wide -30 °C to 60 °C operating temperature ensures constant uptime for both year-round outdoor and indoor installation.
The UNV doorbell is powered via doorbell wiring using a typical 16VAC doorbell transformer. It can accept 12-24VAC power. It works with both 2.4 GHz or 5 GHz WiFi connection (802.11 b/g/n/ax).
Package includes Uniview Dual-Camera Video Doorbell, mounting bracket, chime power kit and instructions.
UNV ED-525B-WB Specs and Features
- WiFi video doorbell
- Dual forward facing and down facing cameras
- Works with free UNV-Link app for iOS and Android
- Supports connection to a Uniview NVR for live view, playback, and alarm search
- Resolution main camera: 3MP
- Resolution sub camera: 2MP
- FOV main camera:
- Horizontal: 116°
- Vertical: 82.5°
- Diagonal: 131°
- FOV sub camera:
- Horizontal: 96.8°
- Vertical: 52.6°
- Diagonal: 109.9°
- Power kit: 240 mAH rechargeable lithium battery (for mechanical chime)
- Charge temperature: 0 °C to 45 °C
- Motion detection alarm: Supported
- UMD alarm: Supports human body detection alarm, supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR
- Package detection alarm: Supported
- Operating frequency band: 2.4 GHz and 5 GHz
- BLE function: Compatible, integrated BLE for pairing
- Antenna type: Built-in omnidirectional antenna
- WLAN: 802.11 b/g/n/ax
- Encryption: WPA-PSK/WPA2-PSK/WPA3-personal
- Bluetooth: Supported, integrated in Wi-Fi chip
- SUB-1G: Supported, for chime connection
- Anti-tamper button: Supported
- Reset button: 1 micro switch for both pairing and reset
- Built-in Mic: Supported
- Built-in speaker: Supported
- Two-Way Audio: Supported
- Illumination scheme: IR + white light
- Illumination distance:
- IR: 5 meters
- White light: 2 meters
- Min. Illumination: 0.02 lux
- Dimensions: 55.8 mm × 156.5 mm × 27.9 mm
- Weight: 295g
- Power consumption: 10W
- Installation method: With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts
- Button: One call button
- Power source: Contact: AC 12 V to 24 V
- Operating temperature: -30 °C to 60 °C
- Ingress protection: IP65
Technical Specifications
The Uniview ED-525B-WB WiFi Video Doorbell is perfect for stand alone use or integration. It boasts two high-definition, wide angle lenses to give users a complete view of who's coming and going-- visitors, package delivery, trespassers, and more.
The forward facing lens provides an overview of the area, while the downward facing lens provides a view directly below the doorbell, perfect for packages.
The video doorbell supports a typical wired mechanical chime.
The ED-525B-WB can be used on it's own with the free UNV Link app for live view, communication and playback.
Video can be recorded to the on board memory so no additional fees or storage required.
Additionally, the UNV WiFi video doorbell can be used with a Uniview NVR to record one or both camera views. Integration into an Uniview NVR allows users to use live view, playback and alarm search from the NVR interface.
Built-in motion detection, package detection and human body filtering ensures high accuracy notifications for connected users; removing false alarms from debris, animals or random objects.
Built-in dual 3MP and 2MP cameras provide up to 116° of horizontal coverage and 131° of diagonal image coverage, ensuring any and all visitors are captured in crystal-clear HD video; and HDR and WDR light correction ensures clear imaging 24/7, even in challenging direct sunlight conditions, preventing blowouts or heavy shadowing.
Built-in IR and supplemental white light illuminates and captures detailed video of subjects, even at night, up to 5 meters away from the doorbell. IP65 waterproofing and a wide -30 °C to 60 °C operating temperature ensures constant uptime for both year-round outdoor and indoor installation.
The UNV doorbell is powered via doorbell wiring using a typical 16VAC doorbell transformer. It can accept 12-24VAC power. It works with both 2.4 GHz or 5 GHz WiFi connection (802.11 b/g/n/ax).
Package includes Uniview Dual-Camera Video Doorbell, mounting bracket, chime power kit and instructions.
UNV ED-525B-WB Specs and Features
- WiFi video doorbell
- Dual forward facing and down facing cameras
- Works with free UNV-Link app for iOS and Android
- Supports connection to a Uniview NVR for live view, playback, and alarm search
- Resolution main camera: 3MP
- Resolution sub camera: 2MP
- FOV main camera:
- Horizontal: 116°
- Vertical: 82.5°
- Diagonal: 131°
- FOV sub camera:
- Horizontal: 96.8°
- Vertical: 52.6°
- Diagonal: 109.9°
- Power kit: 240 mAH rechargeable lithium battery (for mechanical chime)
- Charge temperature: 0 °C to 45 °C
- Motion detection alarm: Supported
- UMD alarm: Supports human body detection alarm, supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNV-Link and NVR
- Package detection alarm: Supported
- Operating frequency band: 2.4 GHz and 5 GHz
- BLE function: Compatible, integrated BLE for pairing
- Antenna type: Built-in omnidirectional antenna
- WLAN: 802.11 b/g/n/ax
- Encryption: WPA-PSK/WPA2-PSK/WPA3-personal
- Bluetooth: Supported, integrated in Wi-Fi chip
- SUB-1G: Supported, for chime connection
- Anti-tamper button: Supported
- Reset button: 1 micro switch for both pairing and reset
- Built-in Mic: Supported
- Built-in speaker: Supported
- Two-Way Audio: Supported
- Illumination scheme: IR + white light
- Illumination distance:
- IR: 5 meters
- White light: 2 meters
- Min. Illumination: 0.02 lux
- Dimensions: 55.8 mm × 156.5 mm × 27.9 mm
- Weight: 295g
- Power consumption: 10W
- Installation method: With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts
- Button: One call button
- Power source: Contact: AC 12 V to 24 V
- Operating temperature: -30 °C to 60 °C
- Ingress protection: IP65
