About the product

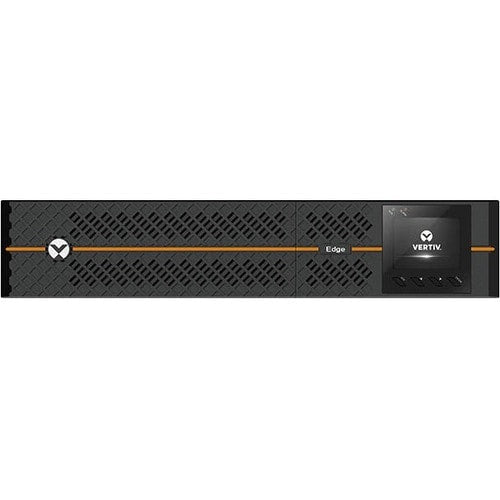

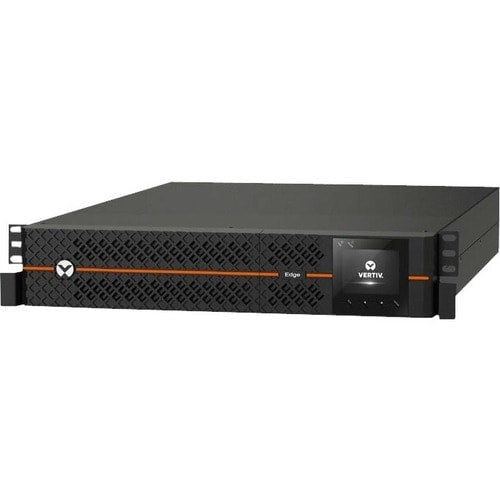

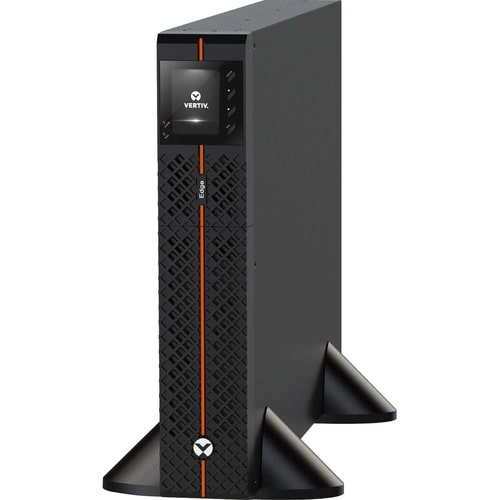

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 1500VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.
- Works adequately in situations where the supply is prone to sags and surges
- 1.50 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.35 kW load capacity
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Color and graphic LCD |
| Management | |
| Network Management | SNMP/Webcard |
| Alarm | Yes |
| Miscellaneous | |
| TAA Compliant | No |
| Energy Star | No |
| Environmental Conditions | |
| Sound Emission | 45 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | EDGE-1500IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | EDGE-1500IRT2UXL |
| Product Name | EDGE-1500IRT2UXL 1500VA Rack/Tower UPS |
| Product Line | EDGE |
| Brand Name | VERTIV |
| Physical Characteristics | |
| Weight (Approximate) | 44.09 lb (20000 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.46" (88 mm) |
| Width | 17.24" (438 mm) |
| Depth | 20.08" (510 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 17 Minute |
| Backup/Run Time (Full Load) | 5 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| DC System Voltage | 48 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Number of External Battery Cabinets | 6 |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 278 V |
| Output Voltage | 230 V AC |
| 220 V AC | |
| 200 V AC | |
| 208 V AC | |
| 240 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Frequency | 65 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Load Capacity (Watt) | 1.35 kW |
| Technical Information | |
| Application/Usage | IOT Device |
| Network | |
| Server | |
| Business | |
| Critical System | |
| Data Center | |
| Data Storage | |
| Edge Computing | |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13 |
| AVR | Yes |
| Transfer Time | 6 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
