About the product

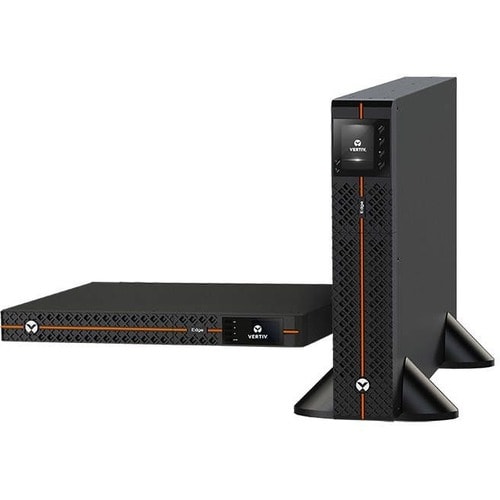

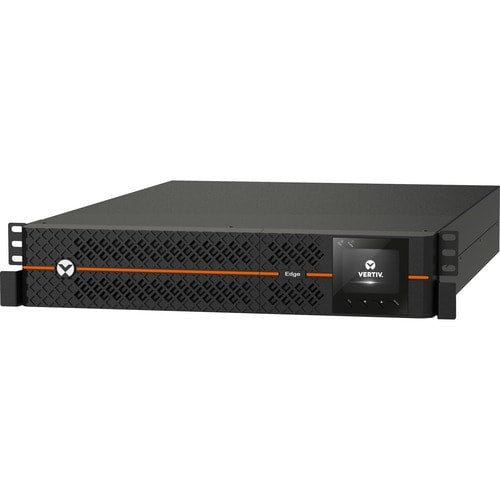

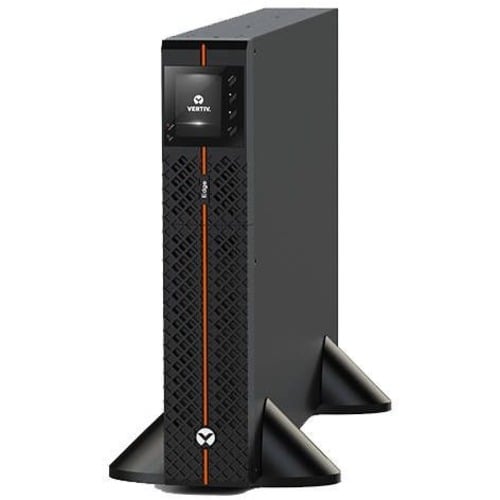

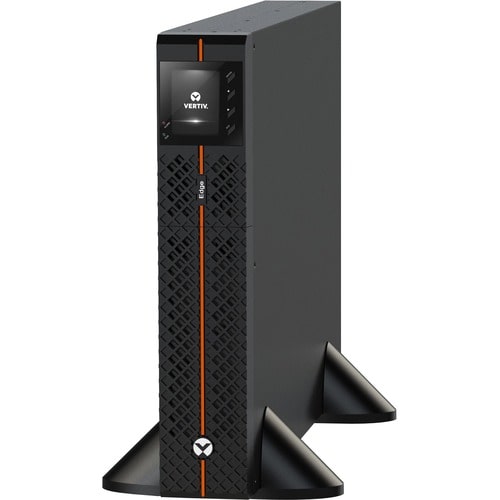

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.
- Works adequately in situations where the supply is prone to sags and surges
- 1.98 kW load capacity - backup power for your valuable electronics
- 2.20 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 4.40 minute at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | Color and graphic LCD |
| Management | |
| Alarm | Yes |
| Environmental Conditions | |
| Sound Emission | 45 dB |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| TAA Compliant | No |
| Energy Star | No |
| Technical Information | |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19 |
| IEC 60320 C13 | |
| Transfer Time | 6 ms |
| Receptacle Detail | 6 x IEC 60320 C13 |
| 1 x IEC 60320 C19 | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | EDGE-2200IRT2UXL |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Model | EDGE-2200IRT2UXL |
| Product Name | EDGE EDGE-2200IRT2UXL 2200VA Tower UPS |
| Product Line | EDGE |
| Brand Name | VERTIV |
| Physical Characteristics | |
| Weight (Approximate) | 59.52 lb (27000 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.46" (88 mm) |
| Width | 17.24" (438 mm) |
| Depth | 24.80" (630 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 7000 mAh |
| Number of Batteries | 6 |
| Backup/Run Time (Half Load) | 14 Minute |
| Backup/Run Time (Full Load) | 4.40 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| DC System Voltage | 72 V DC |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 278 V |
| Output Voltage | 220 V AC |
| 208 V AC | |
| 200 V AC | |
| 230 V AC | |
| 240 V AC | |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 144 V AC - 290 V AC |
| Input Frequency | 65 Hz |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.98 kW |
