About the product

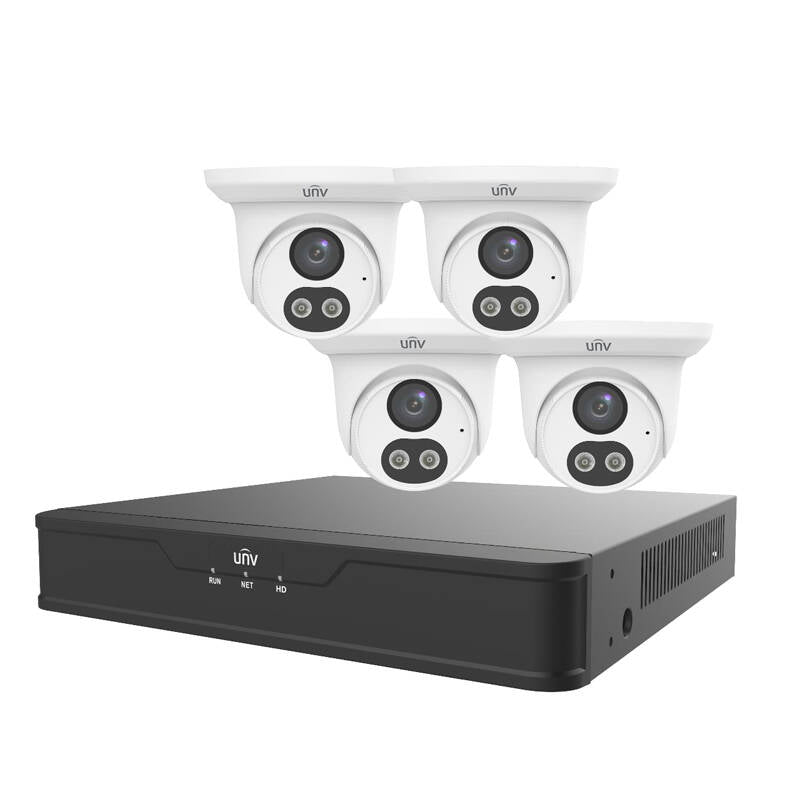

The Uniview Smart Dual Light Camera Kit is an 4-channel, 4-camera NVR and IP camera kit is a convenient all-in-one package for surveillance and monitoring for permanent indoor or outdoor installation. With IP67 ingress protection and dual White Light and Smart IR for long-distance low-light recording, installers and end-users can ensure consistent, high-fidelity recording even in stormy or dark conditions.
NVR package includes a 1TB HDD pre-installed, and supports simplified cloud-based upgrading-- making the kit simple and easy to maintain for any level of end-user. Third-party cameras with ONVIF conformance allows for customized security solutions, and can integrate into retrofits with existing hardware with little hassle.
With a wide range of operating temperatures (-30°C to 60°C), installers can deploy a fully-fledged security system in virtually any environment. 4MP, 1440p UHD video provides clear high-definition recordings and live video, and the 2.8mm ultra-wide lens captures large areas for enhanced perimiter security.
EKDL-S31P4T44T1 Specs and Features
NVR301-04S3-P4
- Video/Audio Input: IP Video Input 4-ch
- Network
- Incoming Bandwidth 64Mbps
- Outgoing Bandwidth 48Mbps
- Remote Users 128
- Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
- Video/Audio Output
- HDMI/VGA Output
- HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output 1-ch, RCA
- Audio Compression G.711A, G.711U
- Synchronous Playback 4-ch
- Corridor Mode Screen 3/4/5/7/9
- Decoding
- Decoding format: Ultra 265/H.265/H.264
- Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30
- Hard Disk SATA: 1 SATA interface Capacity up to 8TB for each disk
- Smart VCA Detection by Camera: Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area VCA Search Face Search, Behavior Search
- Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface Rear panel: 2 x USB2.0
- PoE Interface: 4 RJ-45 10M/100Mself-adaptive Ethernet Interface
- Max Power
- Max 30W for single port
- Max 54W in total
- Supported Standard IEEE 802.3at, IEEE 802.3af
- General
- Power Supply: 48V DC
- Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
- Dimensions(W×D×H): 260mm ×240mm × 46 mm (10.2"" × 9.4"" ×1.8"")
- Weight (without HDD ): ?1.1kg (2.43lb)
Cameras EC-T4F28M-DL
- Resolution: 4MP
- Sensor: 1/3.0? CMOS
- Min. Illumination:
- Color: 0.01 lux, 0 lux with IR
- Day/Night IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- S/N Ratio: >52dB
- WDR: DWDR
- Lens Type: 2.8mm
- Iris: Fixed, F1.6
- Field of View:
- H: 97.0°
- V: 52.2°
- D: 107.5°
- Illumination IR Distance: 30m
- Warm Light Distance: 30m
- Wavelength: 850nm
- Compression:
- Ultra 265
- H.265
- H.264
- MJPEG
- Frame Rate: Main Stream: 4MP @ 25fps; Sub Stream: D1 @ 30fps
- Video Bit Rate: 128 Kbps~6144 Kbps
- Audio Compression: G.711U, G.711A
- Two-way Audio: Not Available
- Network Protocols:
- IPv4
- IGMP
- ICMP
- ARP
- TCP
- UDP
- DHCP
- RTP
- RTSP
- HTTPS
- User Levels: Up to 32 users
- Functionality Defocus Detection: Supported
- Face Detection: Supported
- Motion Detection: Supported
- Temperature Alarm: Supported
- Power Supply: 12V DC ±25%
- Dimensions: ?104 x 97.3mm
- Net Weight: 0.3kg
- Material: Metal + Plastic
Technical Specifications
The Uniview Smart Dual Light Camera Kit is an 4-channel, 4-camera NVR and IP camera kit is a convenient all-in-one package for surveillance and monitoring for permanent indoor or outdoor installation. With IP67 ingress protection and dual White Light and Smart IR for long-distance low-light recording, installers and end-users can ensure consistent, high-fidelity recording even in stormy or dark conditions.
NVR package includes a 1TB HDD pre-installed, and supports simplified cloud-based upgrading-- making the kit simple and easy to maintain for any level of end-user. Third-party cameras with ONVIF conformance allows for customized security solutions, and can integrate into retrofits with existing hardware with little hassle.
With a wide range of operating temperatures (-30°C to 60°C), installers can deploy a fully-fledged security system in virtually any environment. 4MP, 1440p UHD video provides clear high-definition recordings and live video, and the 2.8mm ultra-wide lens captures large areas for enhanced perimiter security.
EKDL-S31P4T44T1 Specs and Features
NVR301-04S3-P4
- Video/Audio Input: IP Video Input 4-ch
- Network
- Incoming Bandwidth 64Mbps
- Outgoing Bandwidth 48Mbps
- Remote Users 128
- Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
- Video/Audio Output
- HDMI/VGA Output
- HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Audio Output 1-ch, RCA
- Audio Compression G.711A, G.711U
- Synchronous Playback 4-ch
- Corridor Mode Screen 3/4/5/7/9
- Decoding
- Decoding format: Ultra 265/H.265/H.264
- Liveview/Playback: 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
- Capability: 1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30
- Hard Disk SATA: 1 SATA interface Capacity up to 8TB for each disk
- Smart VCA Detection by Camera: Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area VCA Search Face Search, Behavior Search
- Network Interface: 1x RJ45 10M/100M self-adaptive Ethernet Interface
- USB Interface Rear panel: 2 x USB2.0
- PoE Interface: 4 RJ-45 10M/100Mself-adaptive Ethernet Interface
- Max Power
- Max 30W for single port
- Max 54W in total
- Supported Standard IEEE 802.3at, IEEE 802.3af
- General
- Power Supply: 48V DC
- Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
- Dimensions(W×D×H): 260mm ×240mm × 46 mm (10.2"" × 9.4"" ×1.8"")
- Weight (without HDD ): ?1.1kg (2.43lb)
Cameras EC-T4F28M-DL
- Resolution: 4MP
- Sensor: 1/3.0? CMOS
- Min. Illumination:
- Color: 0.01 lux, 0 lux with IR
- Day/Night IR-cut filter with auto switch (ICR)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- S/N Ratio: >52dB
- WDR: DWDR
- Lens Type: 2.8mm
- Iris: Fixed, F1.6
- Field of View:
- H: 97.0°
- V: 52.2°
- D: 107.5°
- Illumination IR Distance: 30m
- Warm Light Distance: 30m
- Wavelength: 850nm
- Compression:
- Ultra 265
- H.265
- H.264
- MJPEG
- Frame Rate: Main Stream: 4MP @ 25fps; Sub Stream: D1 @ 30fps
- Video Bit Rate: 128 Kbps~6144 Kbps
- Audio Compression: G.711U, G.711A
- Two-way Audio: Not Available
- Network Protocols:
- IPv4
- IGMP
- ICMP
- ARP
- TCP
- UDP
- DHCP
- RTP
- RTSP
- HTTPS
- User Levels: Up to 32 users
- Functionality Defocus Detection: Supported
- Face Detection: Supported
- Motion Detection: Supported
- Temperature Alarm: Supported
- Power Supply: 12V DC ±25%
- Dimensions: ?104 x 97.3mm
- Net Weight: 0.3kg
- Material: Metal + Plastic
