Switches & Hubs
Expected delivery 3 to 7 business days (exceptions applied)
Advantech

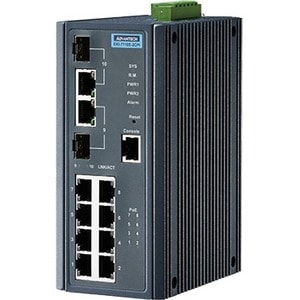

8PORT 10/100M POE/POE+ + 2 GBE COMBO L2 INDUSTRIAL MANAGED ENET
8PORT 10/100M POE/POE+ + 2 GBE COMBO L2 INDUSTRIAL MANAGED ENET
Regular price
$1,657.12 CAD
Regular price
$1,855.97 CAD
Sale price
$1,657.12 CAD
Unit price
/
per
Shipping calculated at checkout.
Advantech Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp - 8 Ports - Manageable - 10/100Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - DIN Rail Mountable - 5 Year Limited Warranty
VPN:EKI-7710E-2CPI-AE SKU:600888NDN UPC:
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
8PORT 10/100M POE/POE+ + 2 GBE COMBO L2 INDUSTRIAL MANAGED ENET
Product information summary

About the product
The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Quickly and easily set up a wired network with 8 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
Technical Specifications
Management & Protocols | |
Manageable | Yes |
Network & Communication | |
Layer Supported | 2 |
Miscellaneous | |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
I/O Expansions | |
Expansion Slot Type | SFP (mini-GBIC) |
Number of SFP Slots | 2 |
Shared SFP Slot | Yes |
Total Number of Expansion Slots | 2.0 |
Physical Characteristics | |
Form Factor | DIN Rail Mountable |
Height | 5.98" (152 mm) |
Width | 2.91" (74 mm) |
Depth | 4.13" (105 mm) |
Interfaces/Ports | |
Modular | Yes |
Uplink Port | No |
Stack Port | No |
Total Number of Network Ports | 8 |
Port/Expansion Slot Details | 8 x Fast Ethernet Network |
2 x Gigabit Ethernet Network | |
2 x Gigabit Ethernet Expansion Slot | |
Media & Performance | |
Network Technology | 1000Base-T |
1000Base-X | |
10/100Base-TX | |
Ethernet Technology | Gigabit Ethernet |
Fast Ethernet | |
Media Type Supported | Optical Fiber |
Twisted Pair | |
General Information | |
Product Type | Ethernet Switch |
Manufacturer Part Number | EKI-7710E-2CPI-AE |
Manufacturer Website Address | http://www.advantech.com |
Packaged Quantity | 1 |
Manufacturer | Advantech Co., Ltd |
Product Model | EKI-7710E-2CPI |
Product Name | Ethernet Device, 8FE + 2G Combo Managed POE+ Switch w/Wide Temp |
Brand Name | Advantech |
