About the product

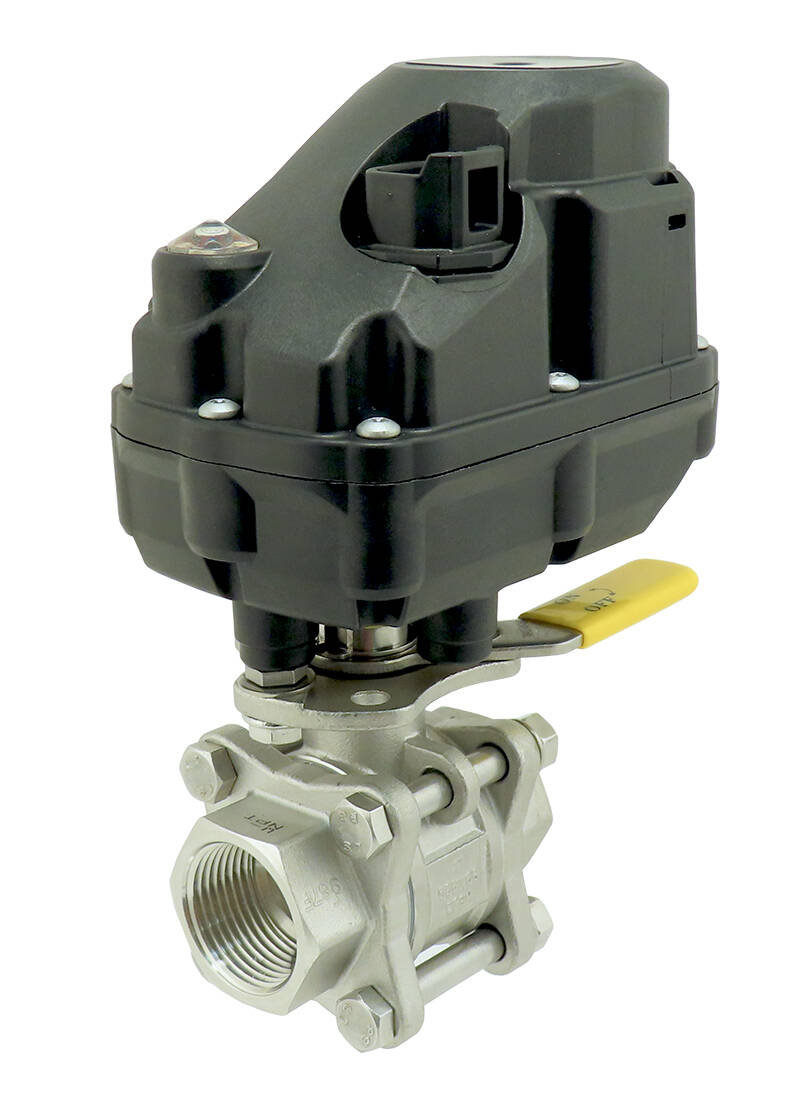

The ELK-WSV3 is a professional grade electric water shutoff valve. It is designed for residential and light commercial domestic water applications. Used in conjunction with a 12 VDC controller, leak detection devices, or a simple manual push button, the WSV3 can easily and conveniently shut off the main water supply to the building.
The ELK-WSV3 is a new and improved model of the highly popular electric water shutoff valve. It is designed for residential and light commercial domestic water applications. The WSV3 features a 12VDC high torque on/off actuator motor as well as a manual emergency control handle for power outages. It features a multi-colored LED status indicator. From the time of activation the WSV3 can shut off the main water supply to a building in just under 1 second.
NOTICE: This valve is not designed, intended, or rated for use in any fire sprinkler or fire alarm application.
ELK-WSV3 Water Shutoff Valve Features:
- Valve control mechanism does not incorporate built-in water flow sensing/detection
- Integrates to Security or Automation Controller (e.g. E27 Alarm Engine or M1 Gold)
- Can be Integrated with a Manual Push Button or Wireless Receiver and Wireless Push Button
- Manual control handle for power outages
- Rapid Action - Opening or Closing
- Multi-color LED Status Indicator
- Stainless Steel Grade 316
- Requires 12 VDC Power Supply
ELK-WSV3 Water Shutoff Valve Specifications:
- Full Port, 2-way Ball Valve
- 1” NPT threaded pipe connections
- Safe for Drinking Water
- Operating Current Draw: 3.2 A
- Standby Current Draw: 50mA
- Actuating Speed: < 1 second
- Connections: 18 gauge, 4 conductor cord
- Actuator Enclosure Rating : IP68M
- Overall Dimensions: 7.5” x 5.2” x 3.3
Technical Specifications
The ELK-WSV3 is a professional grade electric water shutoff valve. It is designed for residential and light commercial domestic water applications. Used in conjunction with a 12 VDC controller, leak detection devices, or a simple manual push button, the WSV3 can easily and conveniently shut off the main water supply to the building.
The ELK-WSV3 is a new and improved model of the highly popular electric water shutoff valve. It is designed for residential and light commercial domestic water applications. The WSV3 features a 12VDC high torque on/off actuator motor as well as a manual emergency control handle for power outages. It features a multi-colored LED status indicator. From the time of activation the WSV3 can shut off the main water supply to a building in just under 1 second.
NOTICE: This valve is not designed, intended, or rated for use in any fire sprinkler or fire alarm application.
ELK-WSV3 Water Shutoff Valve Features:
- Valve control mechanism does not incorporate built-in water flow sensing/detection
- Integrates to Security or Automation Controller (e.g. E27 Alarm Engine or M1 Gold)
- Can be Integrated with a Manual Push Button or Wireless Receiver and Wireless Push Button
- Manual control handle for power outages
- Rapid Action - Opening or Closing
- Multi-color LED Status Indicator
- Stainless Steel Grade 316
- Requires 12 VDC Power Supply
ELK-WSV3 Water Shutoff Valve Specifications:
- Full Port, 2-way Ball Valve
- 1” NPT threaded pipe connections
- Safe for Drinking Water
- Operating Current Draw: 3.2 A
- Standby Current Draw: 50mA
- Actuating Speed: < 1 second
- Connections: 18 gauge, 4 conductor cord
- Actuator Enclosure Rating : IP68M
- Overall Dimensions: 7.5” x 5.2” x 3.3
