Black Box Corp Werks Servsensor Jr. With Poe Eme134A-R3
Black Box Corp Werks Servsensor Jr. With Poe Eme134A-R3
VPN:EME134A-R3 SKU:T952311 UPC:822088019305
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details
Recently Viewed
Black Box Corp Werks Servsensor Jr. With Poe Eme134A-R3
Product information summary
About the product

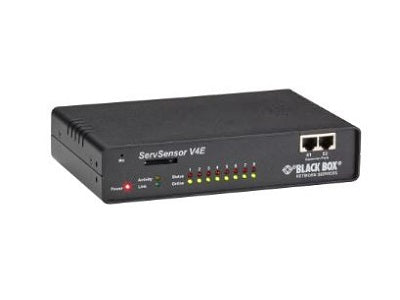

The AlertWerks ServSensor V4E enables you to integrate environmental sensors and surveillance cameras into one seamless remote monitoring system that watches over your premises. Use it to monitor data centers, offices, or anywhere it's important to keep an eye on conditions on the ground.Plug-and-play sensor integration. Plug up to eight AlertWerks Intelligent Sensors into the RJ-45 ports of the ServSensor V4E. Sensors automatically configure and go on-line, ready to report any status change. Choose from a wide variety of sensors, including temperature, humidity, water, airflow, motion, and voltage.Use the two expansion ports on the front of the ServSensor V4E to add even more sensors and dry contact ports with Expansion Units. The ServSensor EXP8 (EME1X8) provides additional ports for eight Intelligent Sensors; the ServSensor EXPDC16 (EME1DC16) provides 16 dry contacts. (These units only work with the V4E.)Video surveillance. The ServSensor V4E supports up to four AlertWerks PT Dome Cameras. You can also use it with a wide range of analog cameras - your existing security cameras, sophisticated night-vision cameras, outdoor cameras, or low-cost CCTV cameras. The ServSensor V4E supports video of up to 640 x 480 dpi from up to four cameras. Set it to scan between cameras or show all cameras at once. It has enough memory to store up to 2320 pictures.A built-in 4-port Pelco-D-compatible pan/tilt controller eliminates the need for expensive additional controllers and enables you to move and zoom cameras from the Web interface. See and organize data from the graphical interface.The ServSensor V4E gathers and displays sensor data in its easy-to-use, Web-based user interface. It automatically generates day, week, month, and year graphs for each sensor. The data can be downloaded in a text file for external processing or remotely polled and saved automatically to a PC.""
Technical Specifications
| Primary Information | |
| Model: | EME134A-R3 |
| Status Indicators: | (1) Power, (1) Link, (1) Activity, (8) Status, (8) Online |
| RAM / Total Installed Size: | 64 MB |
| Flash Memory / Installed Size: | 128 MB |
| Power / Device Type: | Power Supply |
| Power / Voltage Required: | 100 240 VAC |
| Interfaces / Ports | |
| Interfaces: | Inputs: (8) RJ45 for connecting Sensors; (2) RJ45 expansion Ports; (4) Video Input Ports V14, NTSC/PAL; (1) USB Version 1.1 Type-A; (4) PTZ 2-pin Controllers; (1) 2.5 Jack for Analog Audio; (1) RS-485 2-pin Terminal box (used for Modbus) |
| Network | |
| Interfaces: | Inputs: (8) RJ45 for connecting Sensors; (2) RJ45 expansion Ports; (4) Video Input Ports V14, NTSC/PAL; (1) USB Version 1.1 Type-A; (4) PTZ 2-pin Controllers; (1) 2.5 Jack for Analog Audio; (1) RS-485 2-pin Terminal box (used for Modbus) |
| Dimensions&Miscellaneous | |
| What's Included: | (1) ServSensor V4E Hub(1) 5-ft. RJ-45 to RJ-45 Cable(1) Temperature/Humidity Sensor with 5-ft. Cable(1) Help CD(4) Terminal Blocks (installed) |
| Width: | 8.5 Inch |
| Depth: | 5.4 Inch |
| Height: | 1.8 Inch |
| Weight: | 1.72 lbs. |
| Special Feature | |
| COO: | PHILIPPINES |
| UNSPSC Code | |
| UNSPSC Code: | 39121528 |
