About the product

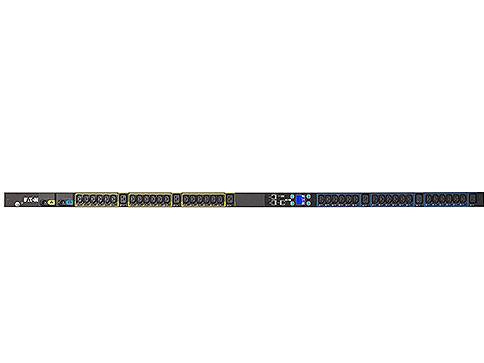

Eaton G3 Metered Input ePDUs provide a best-in-class design featuring billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
Technical Specifications
| Primary Information | |
| Product Description: | Eaton ePDU G3 Metered Input - power distribution unit - 5.76 kW |
| Device Type: | Power distribution unit - rack-mountable |
| Rack Size: | 38U |
| Input Voltage: | AC 200-240 V |
| Output Voltage: | AC 200-240 V |
| Power Capacity: | 5.76 kW |
| Input Connectors: | 1 x power NEMA L6-30 |
| Output connectors: | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Networking: | Ethernet 10/100, RS-232 |
| Color: | Black |
| Dimensions (WxDxH): | 2.1 in x 2.1 in x 66.5 in |
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 38U |
| Color: | Black |
| Power Device | |
| Input Voltage: | AC 200-240 V |
| Frequency Required: | 50 - 60 Hz |
| Input Connectors: | 1 x power NEMA L6-30 |
| Power Output Connectors Details: | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 |
| Output Voltage: | AC 200-240 V |
| Max Electric Current: | 24 A |
| Power Capacity: | 5.76 kW |
| Networking | |
| Remote Management Interface: | Ethernet 10/100, RS-232 |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (Ethernet) - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x cascading - RJ-45 |
| Miscellaneous | |
| Cables Included: | Power cable - integrated - 10 ft |
| Features: | LCD display, voltage monitoring, vertical orientation |
| Compliant Standards: | UL 60950-1, cULus, UL 489 |
| Environmental Parameters | |
| Min Operating Temperature: | 32 °F |
| Max Operating Temperature: | 140 °F |
