Rack Equipments
Expected delivery 3 to 7 business days (exceptions applied)
Eaton
Eaton Metered Input rack PDU, 1U, 5-20P input, 1.92 kW max, 120V, 16A,
Eaton Metered Input rack PDU, 1U, 5-20P input, 1.92 kW max, 120V, 16A,
Regular price
$1,227.98 CAD
Regular price
$1,375.34 CAD
Sale price
$1,227.98 CAD
Unit price
/
per
Shipping calculated at checkout.
Eaton Metered Input rack PDU, 1U, 5-20P input, 1.92 kW max, 120V, 16A, 10 ft cord, Single-phase, Outlets: (12) 5-20R - NEMA L5-20P - 12 x NEMA 5-20R - 120 V AC - 1.92 kW - Network (RJ-45) - 1U - Horizontal
VPN:EMIT01-10 SKU:RSC680528 UPC:786685990187
- Eaton Hydraulic Magnetic Circuit Breakers with accidental trip protection
- Colour-coded outlet and branch circuits for simple load balancing
- Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
Eaton Metered Input rack PDU, 1U, 5-20P input, 1.92 kW max, 120V, 16A,
Product information summary

About the product

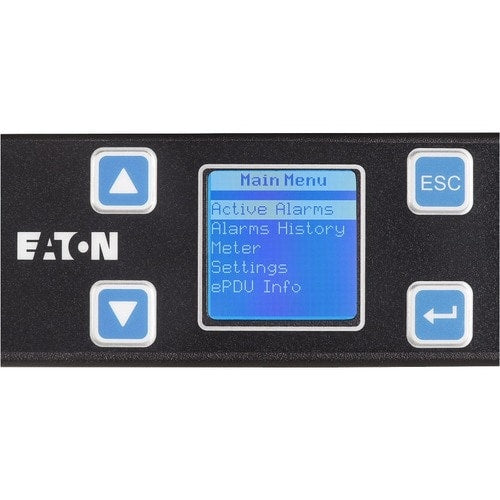

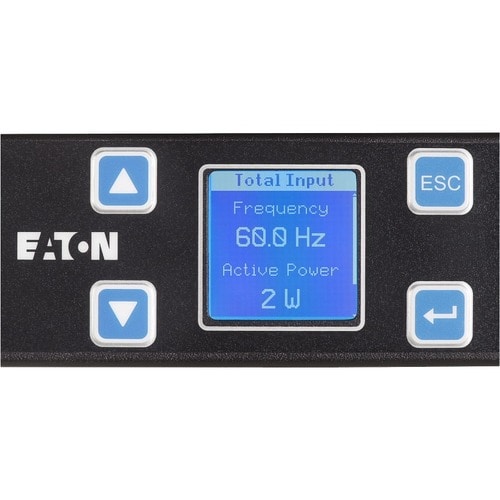

Eaton Metered Input rack PDUs give you remote monitoring capabilities and provide access to your power data whenever you want it, wherever you are. You also can monitor your critical equipment within each color-coded outlet section from a single interface, achieve±1% billing grade accuracy and daisy chain four PDUs to share the same network connection and IP address.
- Eaton Hydraulic Magnetic Circuit Breakers with accidental trip protection
- Colour-coded outlet and branch circuits for simple load balancing
- Highly secure with user access control, password protection and SSL configurable to 1024 or 2048 bit
- IEC outlet eGrip plug retention: retains all standard IEC plugs
- Allows phase branch level metering for load balancing
Technical Specifications
Interfaces/Ports | |
Network (RJ-45) | Yes |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Power Description | |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Input Current | 16 A |
Power Rating (Watt) | 1.92 kW |
Technical Information | |
Plug/Connector Type | NEMA L5-20P |
Receptacle Type | NEMA 5-20R |
Receptacle Detail | 12 x NEMA 5-20R |
Plug/Connector Detail | 1 x NEMA L5-20P |
Physical Characteristics | |
Rack Height | 1U |
Height | 19" (482.60 mm) |
Width | 1.69" (42.93 mm) |
Depth | 8" (203.20 mm) |
Mounting Orientation | Horizontal |
General Information | |
Product Type | PDU |
Manufacturer Part Number | EMIT01-10 |
Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
Manufacturer | Eaton Corporation |
Product Model | EMIT01-10 |
Product Name | Metered Input Rack PDU |
Product Line | ePDU |
Product Series | Metered |
Brand Name | Eaton |
