About the product

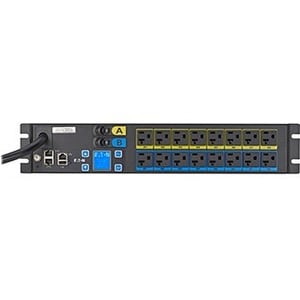

Eaton Metered Input ePDUs
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Miscellaneous | |
| Country of Origin | China |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Current | 24 A |
| Power Rating (Watt) | 2.88 kW |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 16 x NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 19" (482.60 mm) |
| Width | 3.43" (87.12 mm) |
| Depth | 8.39" (213.11 mm) |
| Mounting Orientation | Horizontal |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | EMIU05-10 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | ePDU Metered 16-Outlet PDU |
| Product Line | ePDU |
| Product Series | Metered |
| Brand Name | Eaton |
