About the product

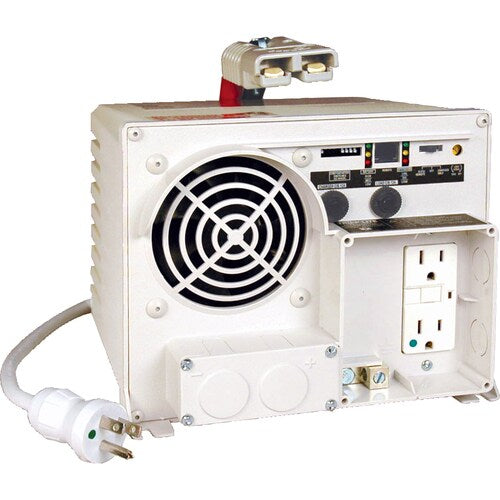

The PowerVerter EMS1250UL DC-to-AC Power Inverter with integrated charging system provides automatic, uninterruptible DC-to-AC power for critical on-board equipment. Ideal for installation by ambulance/EMS vehicles. When AC cable is connected to a shore power source, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 14/55 amp selectable charging system. This unit can also function as a UPS system, responding to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Included wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information.
- 12V DC or 120VAC input; 120V AC output; 2 NEMA 5-15R hospital-grade outlets
- 1250 watts continuous, 1875 watts OverPower™ and 2500 watts DoubleBoost™ inverter output
- 3 stage, 14/55 amp selectable wet/dry cell battery charger
- Auto Transfer Switching option for battery backup / UPS operation - includes wired APSRM4 remote control switch
- Tested to vehicular inverter standards UL458 (USA) and CSA-C22.2 No. 107.1-01 (Canada). Meets GSA Ambulance Specification KKK-A-1822
- Hospital-grade AC plug and GFCI outlets; Anderson quick connect DC wiring terminals
- Meets OSHA requirements
Technical Specifications
| Technical Information | |
| Receptacles | 2 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 23.20 lb (10523.34 g) |
| Height | 7" (177.80 mm) |
| Width | 8.75" (222.25 mm) |
| Depth | 9" (228.60 mm) |
| Power Description | |
| Input Voltage | 12 V DC |
| 120 V AC | |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 2.50 kW |
| Continuous Power Load | 1.25 kW |
| General Information | |
| Product Type | Power Inverter |
| Manufacturer Part Number | EMS1250UL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | EMS1250UL |
| Product Name | PowerVerter EMS1250UL DC-to-AC Power Inverter |
| Product Line | PowerVerter |
| Brand Name | Tripp Lite by Eaton |
